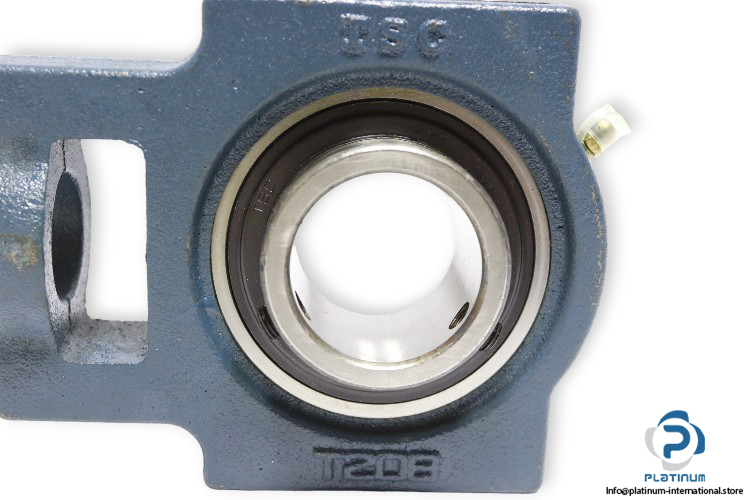

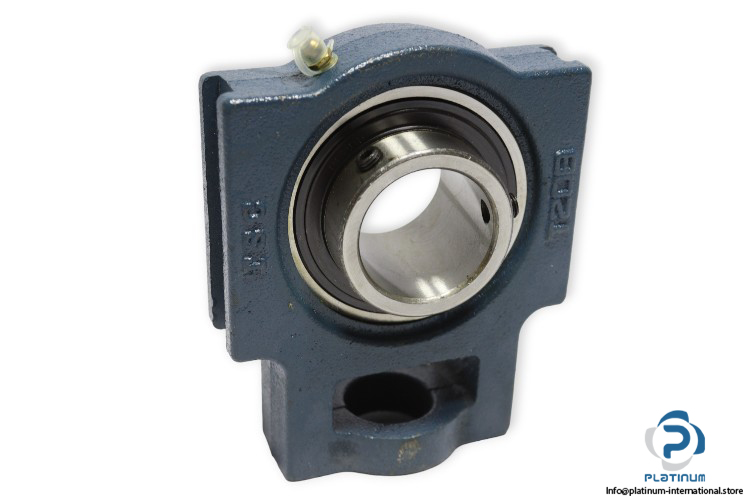

Manufacturer: TSC
Type: take up ball bearing unit
Model: UCT 208
Housing No.: T208

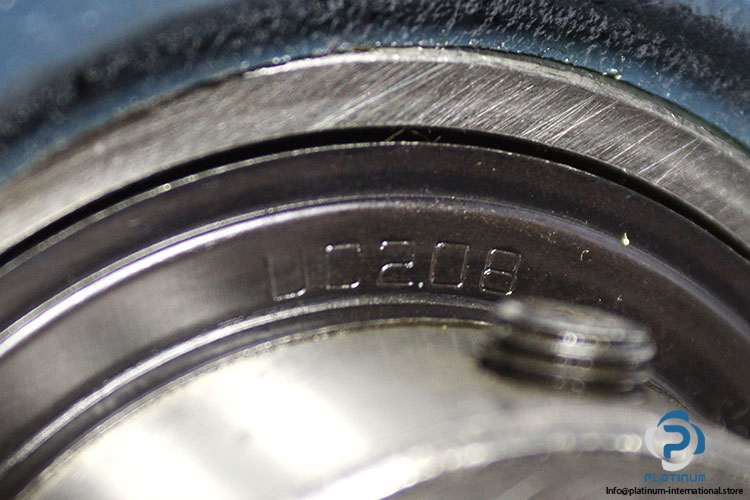

Bearing No.: UC208

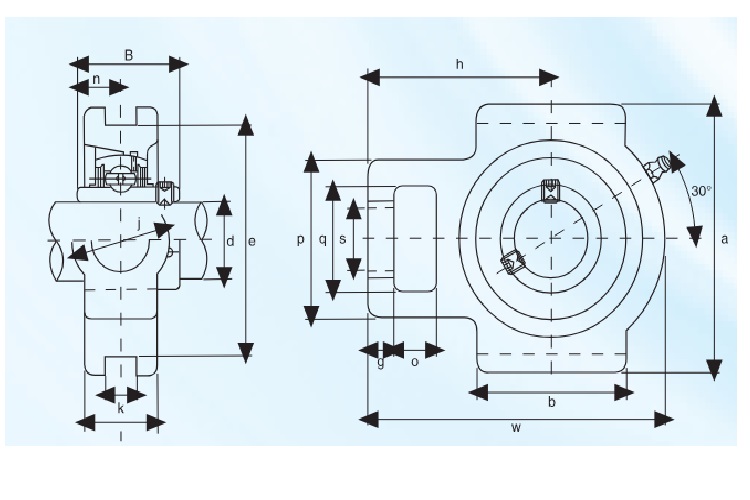

Shaft diameter d: 40 mm
Length of attachment slot O: 19 mm
Height of attachment end p: 83 mm
Height of attachment slot q: 49 mm
Diameter of attachment bolt hole S: 29 mm
Length of piloting groove b: 83 mm
Width of piloting groove k: 12 mm
Overall height a: 114 mm
Distance between bottoms of piloting grooves e: 102 mm
Overall length w: 144 mm
Distance from attachment end face to center line of spherical seat diameter h: 89 mm
Width of inner ring B: 49.2 mm
Load Rating:
Dynamic C: 27700 N
Static C₀: 17000 N
Housing type: Take-up
