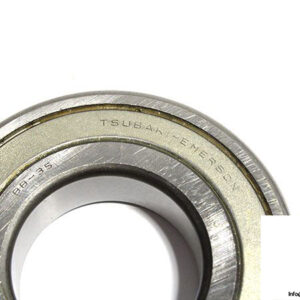

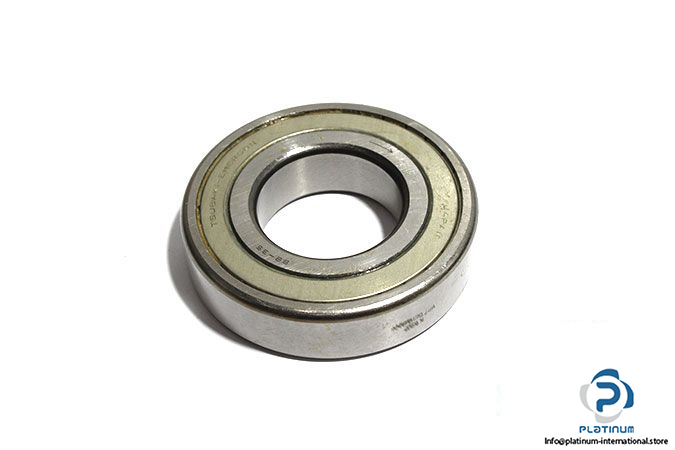

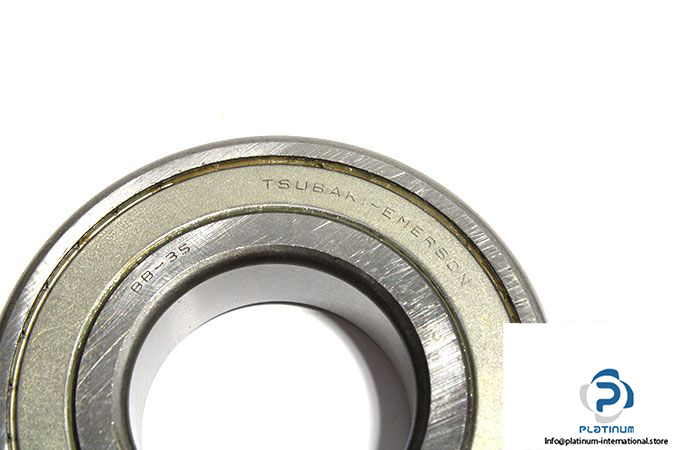

Manufacturer: TSUBAKI-EMERSON
Type: Cam clutch bearings
Model: BB-35

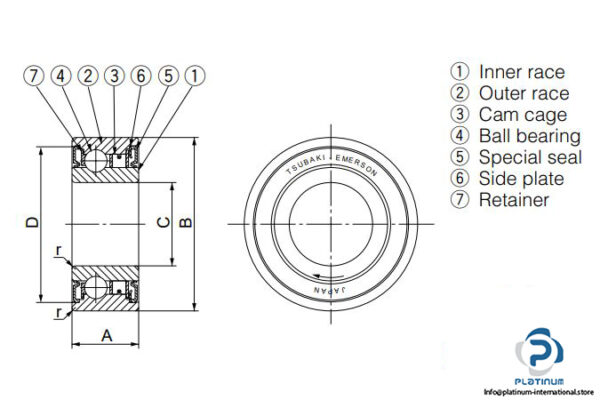

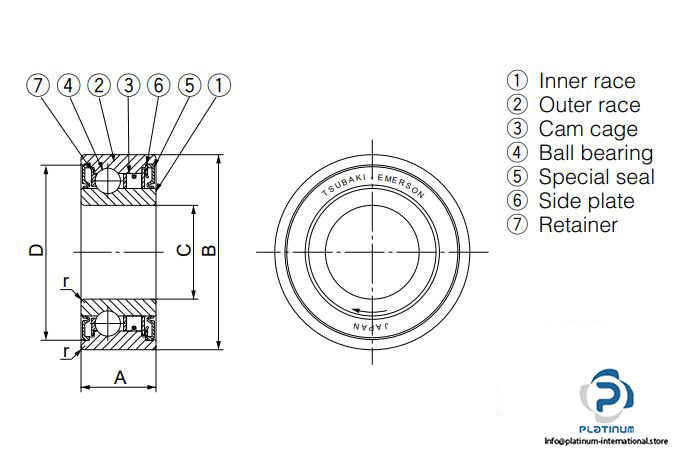

Dimensions
Bore Diameter C: 35 mm
Outer diameter B: 72 mm
Width A: 17 mm
Minimum chamfer dimension r: 1.1 mm
Basic load ratings:
Dynamic C: 13500 N
Static CO: 9700 N
Maximum overrunning speed:
Inner race: 1800 rpm
outer race: 1000 rpm
Torque capacity: 173 Nm
Drag torque: 0.034 Nm
Weight: 0.33 kg
