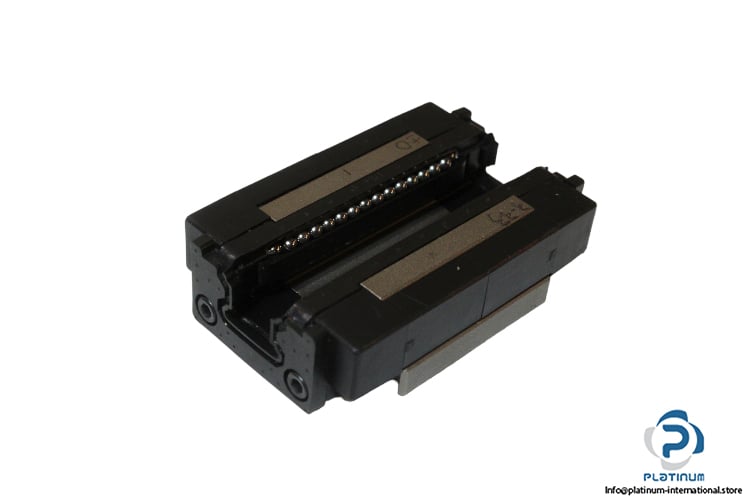

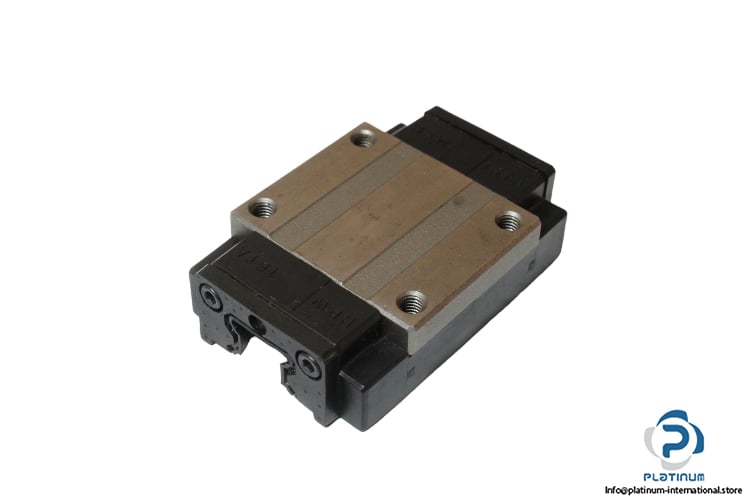

Manufacturer: TSUBAKI NAKASHIMA

Type: Linear Guideway Block

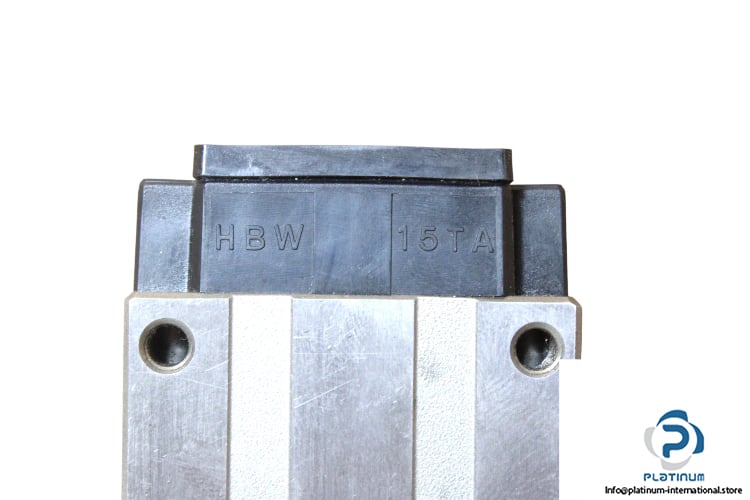

Model:  H15TA



Size: 15

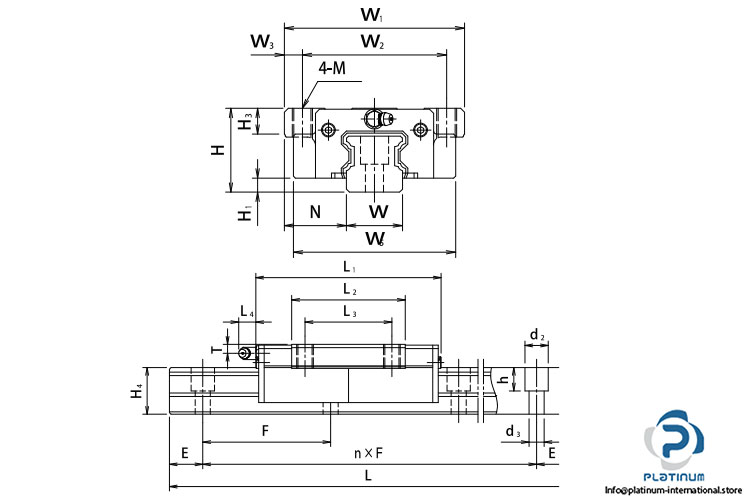

Dimensions

Total Height H: 24 mm

Block Height: 19.4 mm

Width W₁: 47 mm

Width W₅: 46.5 mm

Block Length L₁: 72 mm

L₂: 41 mm

L₃: 30 mm

W₂: 38 mm

Block Type: Flange Type

Mounting Hole: 4 Tapped holes

Basic Load Ratings:

Dynamic C₅₀: 8834 N

Dynamic C₁₀₀: 7012 N

Static C₀: 17020 N
