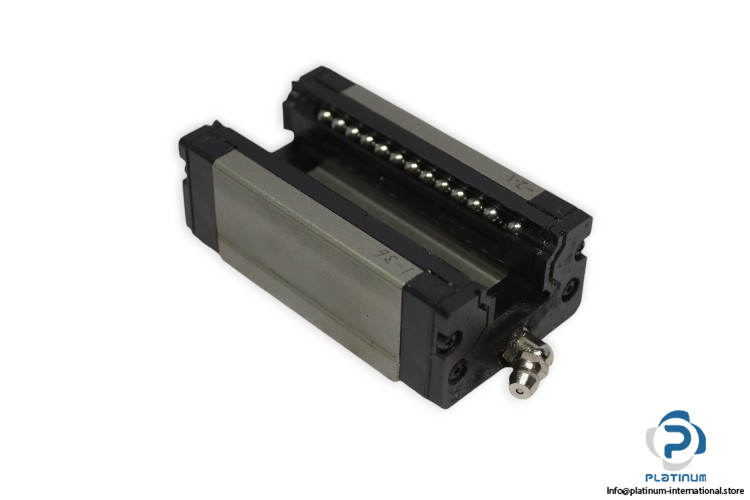

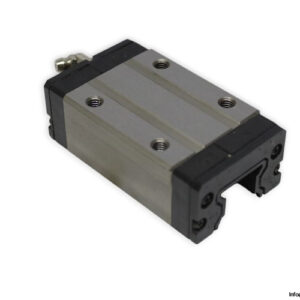

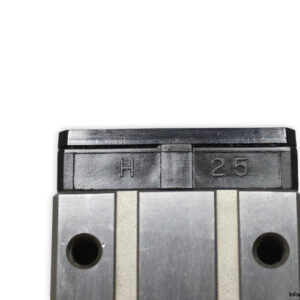

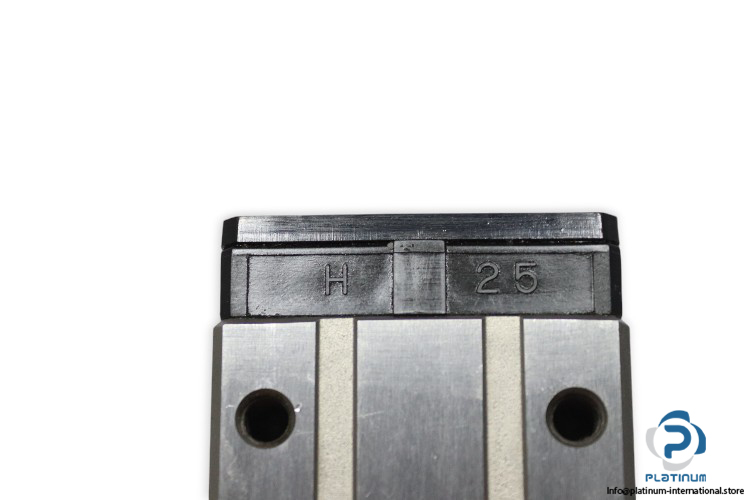

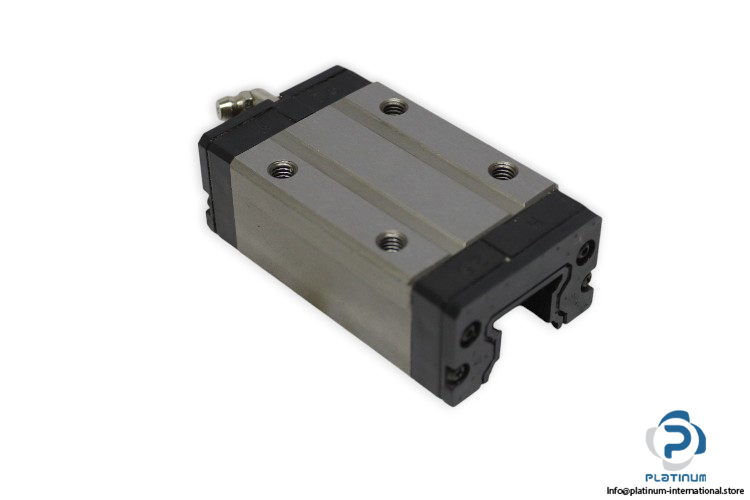

Manufacturer: TSUBAKI
Type: LINEAR BEARING BLOCK
Model: U25ER

Size: 25 mm

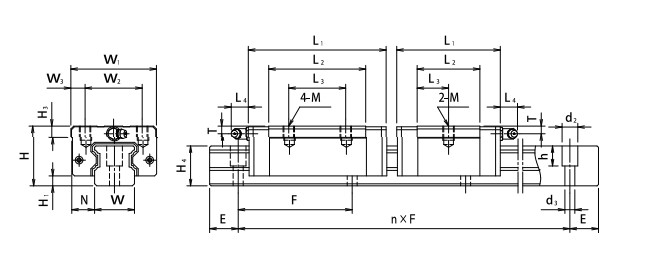

Dimensions
Total Height H: 33 mm
Block Height(H-H1): 29 mm
Width N: 12.5 mm
Width W₁: 48 mm
Width W₃: 6.5 mm
Block Length L₁: 84 mm
L₂: 59 mm
L₃: 35 mm
W₂: 35 mm
Block Type: Flange Type
Mounting Hole: 4 Tapped holes (M6×8)
Basic Load Ratings:
Dynamic C₅₀: 20950 N
Dynamic C₁₀₀: 16630 N
Static C₀: 38290 N
