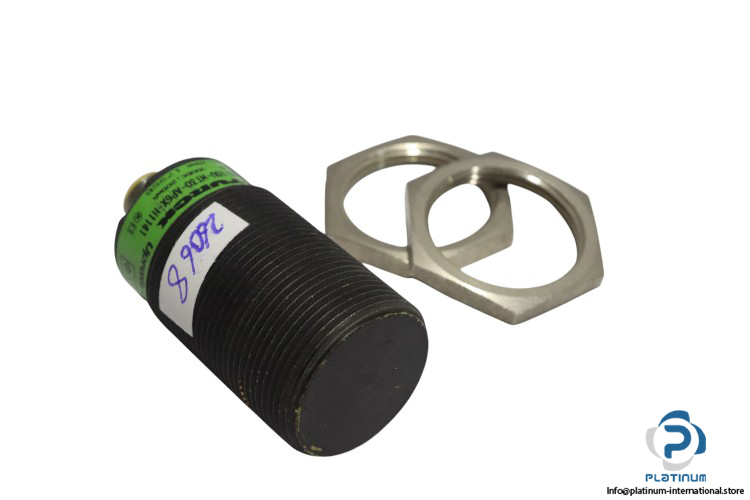

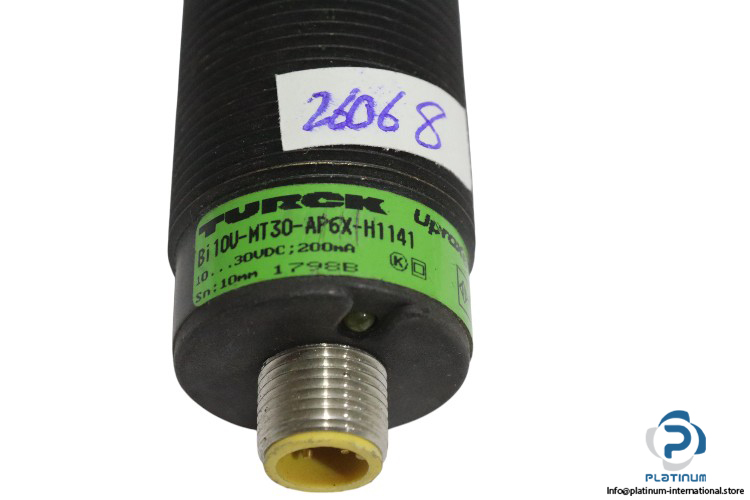

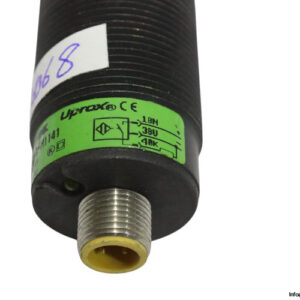

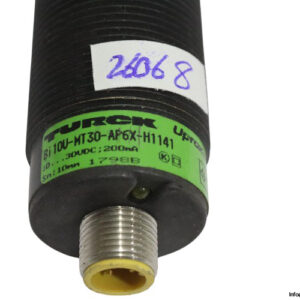

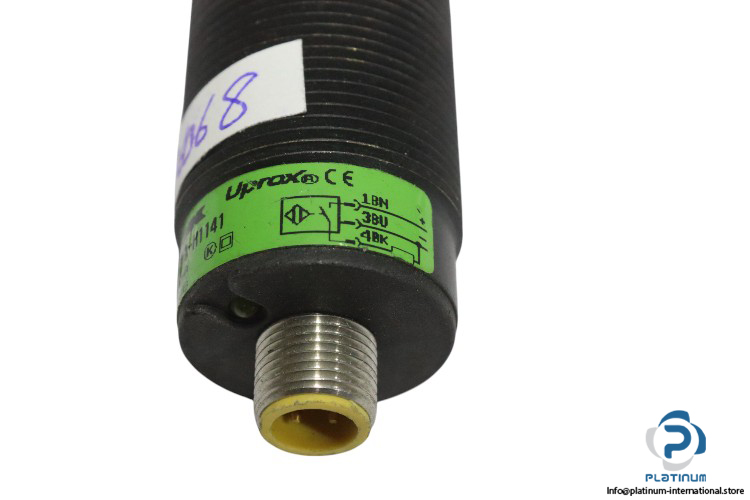

Turck BI10U-MT30-AP6X-H1141 “ Inductive Sensor

The Turck BI10U-MT30-AP6X-H1141 inductive sensor offers precise detection capabilities with a sensing range of 10 mm. Designed for reliable performance in harsh industrial environments, this sensor is equipped with a metal housing, PTFE coating, and is rated for IP68 protection.

• Manufacturer: Turck
• Type: Inductive Sensor
• Model: BI10U-MT30-AP6X-H1141
• Part No.: 1798B

Technical Information:

• Sensing Range: 10 mm
• Operating Voltage: 10 to 30 V DC
• Electrical Design: PNP
• Switching Output: 1 NO
• DC Rated Operating Current Ie: 200 mA
• No-load Current: 25 mA
• Switching Frequency: 1 kHz
• Housing Material: Metal, CuZn, PTFE-coated
• Mounting: Flush
• Protection Degree: IP68
• Connection: Connector, M12 × 1
• Ambient Temperature: -30 to 85 °C
• Length: 62 mm
• Supplied Items: 2 lock nuts
