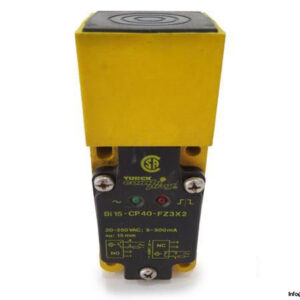

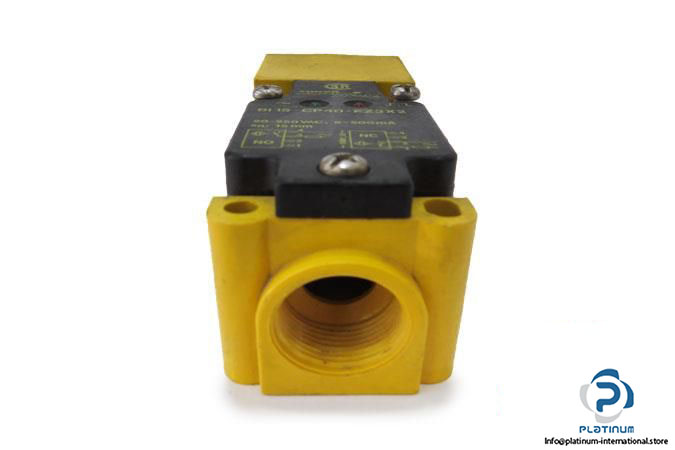

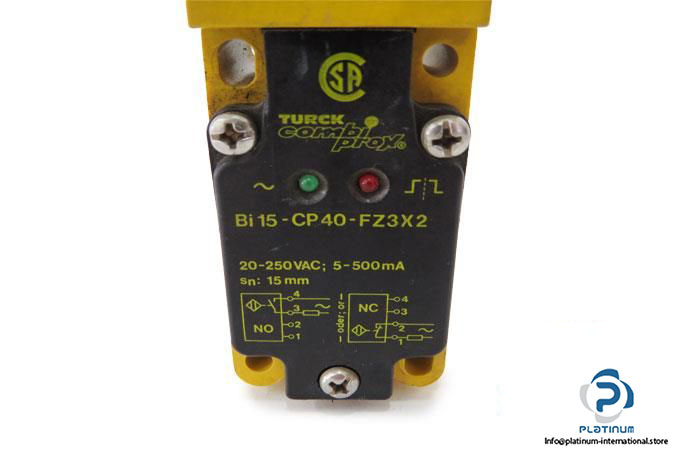

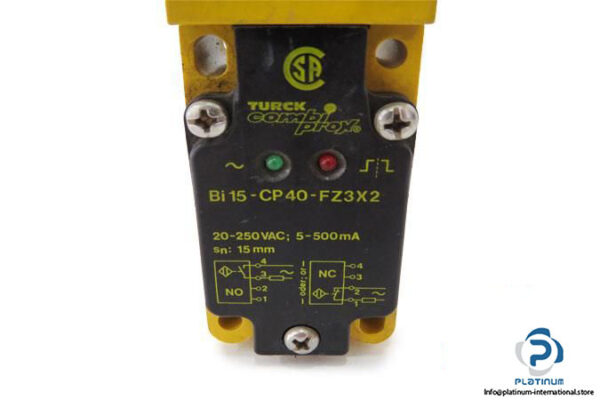

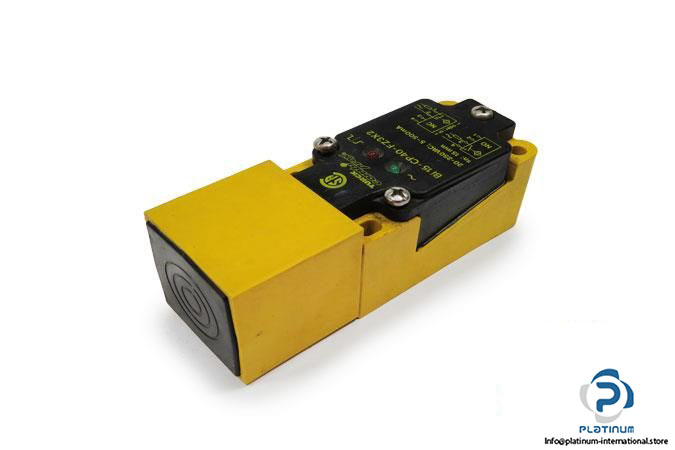

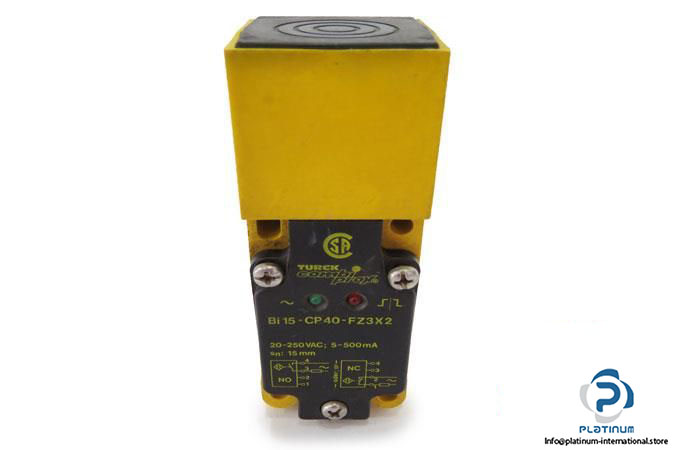

TURCK BI15-CP40-FZ3X2 INDUCTIVE SENSOR

The TURCK BI15-CP40-FZ3X2 is a robust and high-performance inductive sensor from the Combi Prox series, engineered for reliable object detection in harsh industrial environments. With a 15 mm sensing range, it supports both normally open and normally closed switching outputs, and its rugged PBT housing ensures long-term durability in flush mountable installations.

Manufacturer: TURCK
Type: Inductive Sensor
Series: Combi prox
Model: BI15-CP40-FZ3X2
Part No.: 13400

Technical Information

• Sensing Range: 15 mm
• Operating Distance: ‰¤ 12.15 mm
• Operating Voltage: 20 / 250 V AC
• Switching Output Current: 5 / 500 mA
• Switching Output: Normally open/Normally closed
• Connector Type: M20 × 1.5 cable gland
• Dimensions: 114 x 40 x 40 mm
• Switching Frequency: 20 Hz
• Material: PBT
• Mounting: Flush mountable
• Operating Temperature: -25 / 70°C
• Protection Class: II
