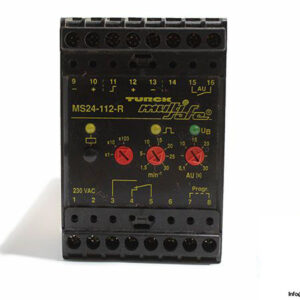

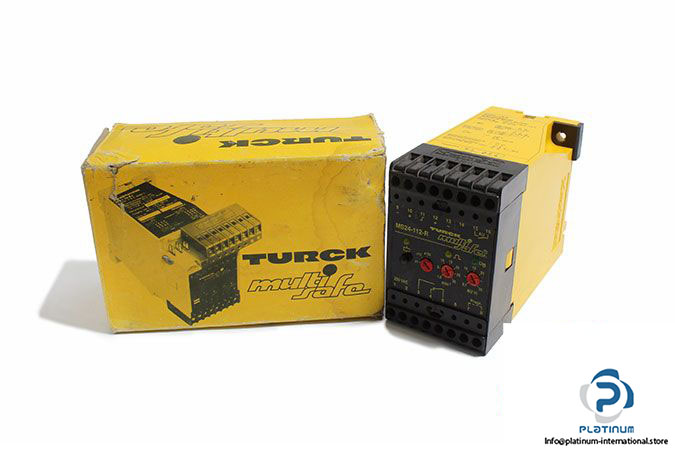

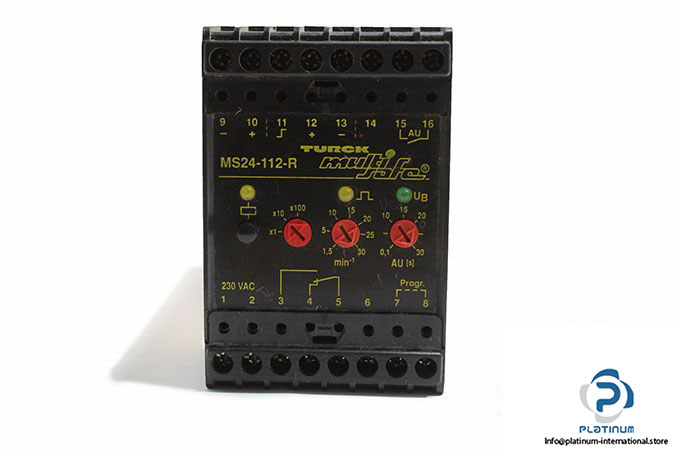

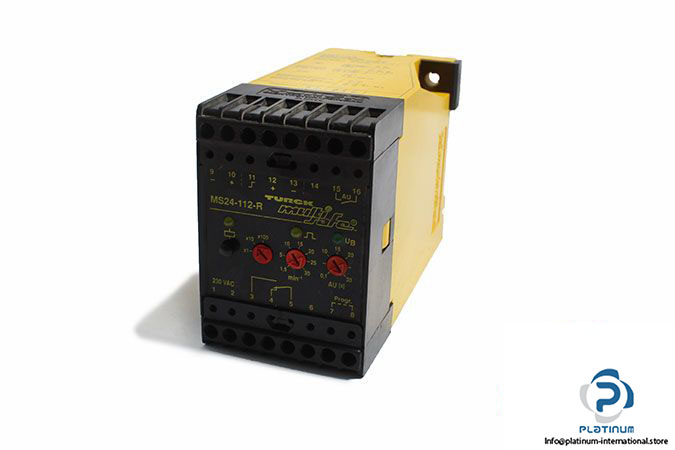

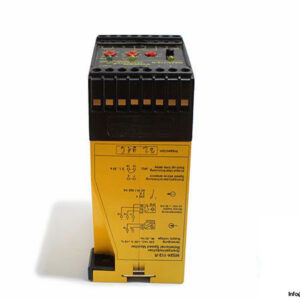

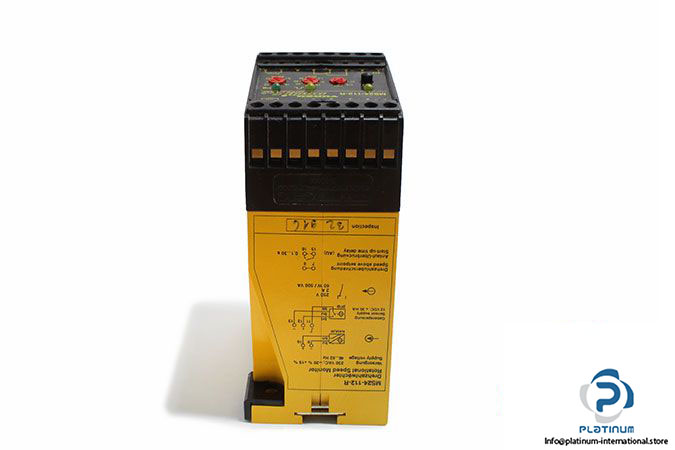

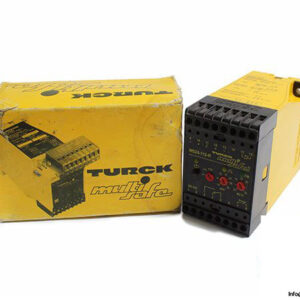

Manufacturer: TURCK

Type: Rotational Speed Monitor

Model: MS24-112-R

Ident-No.: 0515800



Supply Voltage: 85 … 265 VAC

Frequency: 0 … 62 Hz

Power Consumption: 4.5 VA

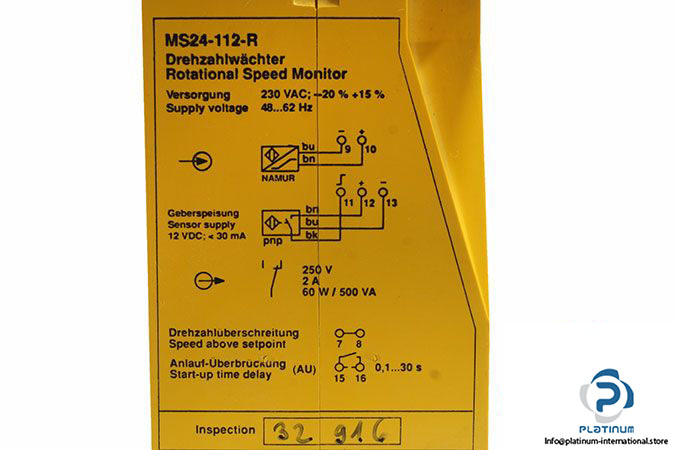

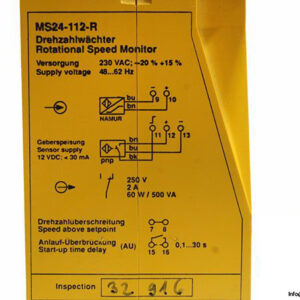

Input:

NAMUR Input Operating Characteristics: 8.2 V; 8.2 mA

3-wire Input: pnp, terminals 11…13

Operating Characteristics: 15 VDC; 30 mA

“ON” Signal: 0 … 5 VDC

“OFF” Signal: 10 … 30 VDC

Output:

Switching Voltage: ≤ 250 V

Switching Current: ≤ 2 A

Switching Capacity: ≤ 500 VA/60 W

Protection Class: IP20

Ambient Temperature: -25…+60 °C

Dimensions: 50 X 110 X 75 mm

Weight: 0.4 kg
