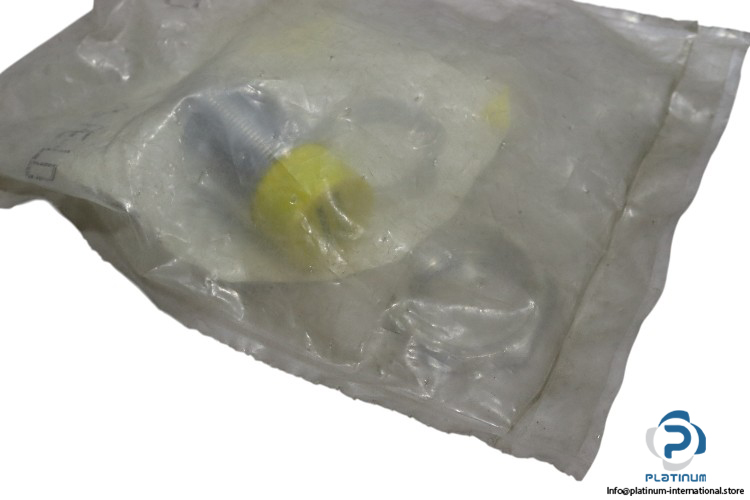

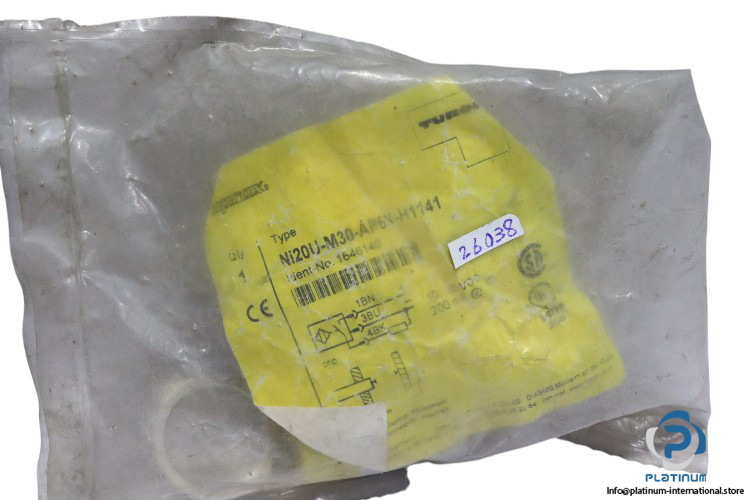

Turck NI20U-M30-AP6X-H1141 “ Inductive Sensor
The Turck NI20U-M30-AP6X-H1141 inductive sensor provides precise object detection with a sensing range of 20 mm, ideal for industrial automation applications. Built for reliability with an IP68 protection rating and robust metal housing, it ensures durable performance across various environments.
- Manufacturer: Turck
- Type: Inductive Sensor
- Model: NI20U-M30-AP6X-H1141
- ID. No.: 1646140
Technical Information:
- Sensing Range: 20 mm
- Operating Voltage: 10 to 30 V DC
- Electrical Design: PNP
- Switching Output: 1 NO
- DC Rated Operating Current Ie: 200 mA
- No-load Current: 25 mA
- Switching Frequency: 1 kHz
- Housing Material: Metal, CuZn, Chrome-plated
- Mounting: Non flush
- Protection Degree: IP68
- Connection: Connector, M12
- Material: Metal, CuZn, Chrome-plated
- Ambient Temperature: -30 to 85 °C
- Length: 62 mm
