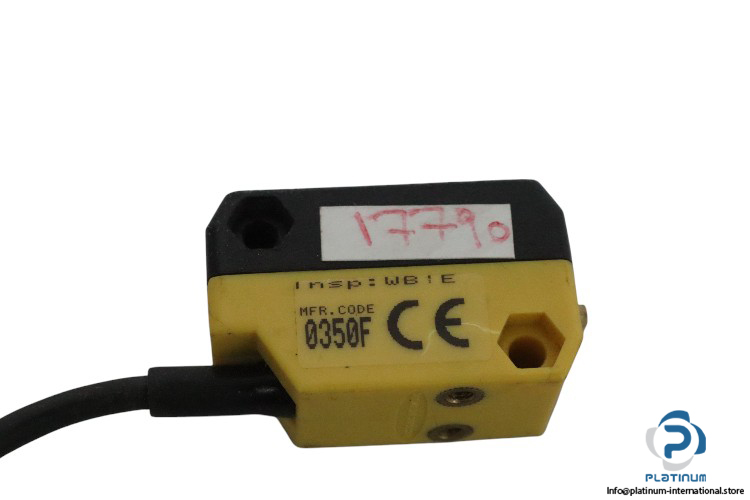

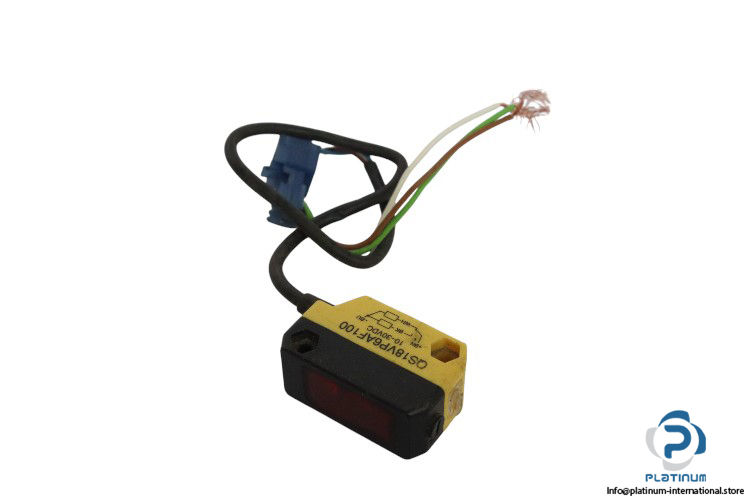

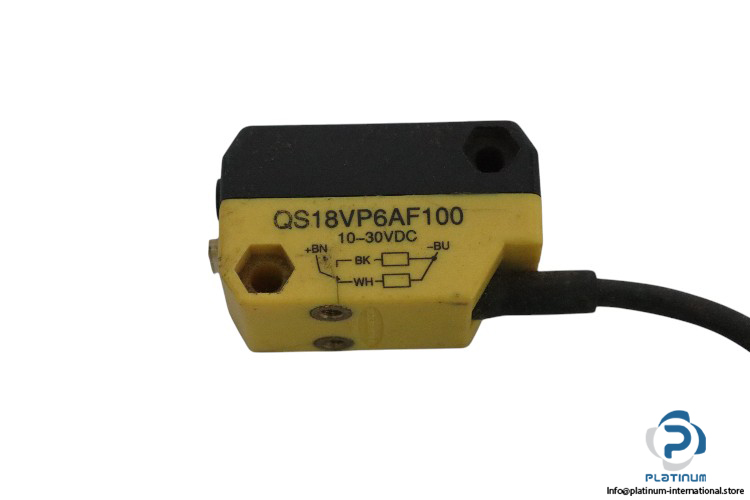

TURCK QS18VP6AF100 Photoelectric Sensor

The TURCK QS18VP6AF100 Photoelectric Sensor is a versatile proximity switch designed to offer high-performance background suppression for precise detection in industrial applications. With its adjustable operating mode and red light emission, it provides accurate and reliable sensing over a range of 1 to 100 mm.

• Manufacturer: TURCK
• Type: Photoelectric Sensor
• Model: QS18VP6AF100

Technical Specifications:

• Function: Proximity switch
• Operating Mode: Background suppression, adjustable
• Operating Voltage: 10 / 30 VDC
• Rated Operational Current DC: 100 mA
• No-load Current: 25 mA
• Output Function: NO/NC, PNP
• Electrical Connection: Cable, 2 m, PVC
• Switching Frequency: 700 Hz
• Wavelength: 640 nm
• Range: 1 / 100 mm
• Number of Cores: 4
• Core Cross-section: 0.35 mm²
• Light Type: Red
• Design: Rectangular
• Protection Class: IP67
• Housing Material: Plastic, ABS
• Ambient Temperature: 0 / 55 °C
• Dimensions: 21.1 x 15 x 34.5 mm

Designed for industrial use, the TURCK QS18VP6AF100 Photoelectric Sensor offers enhanced sensing accuracy with a switching frequency of 700 Hz and a long operational life. The sensor is equipped with IP67 protection, ensuring reliable operation in challenging environmental conditions.
