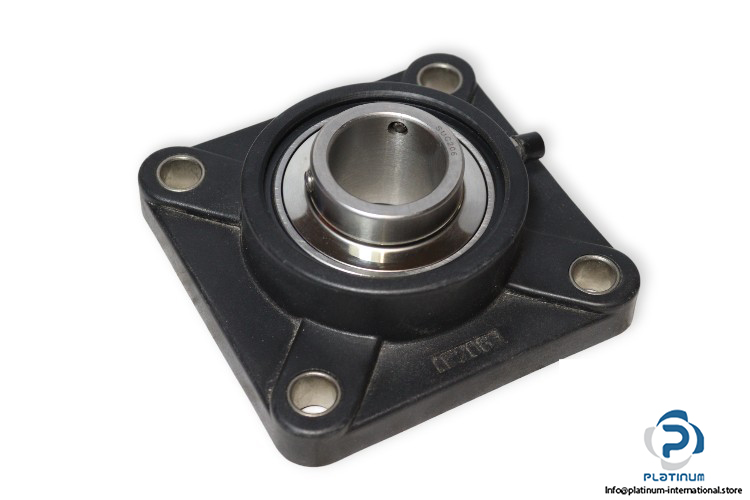

Type: plastic Four-Bolt Square Flange Unit
Model: UCF 206

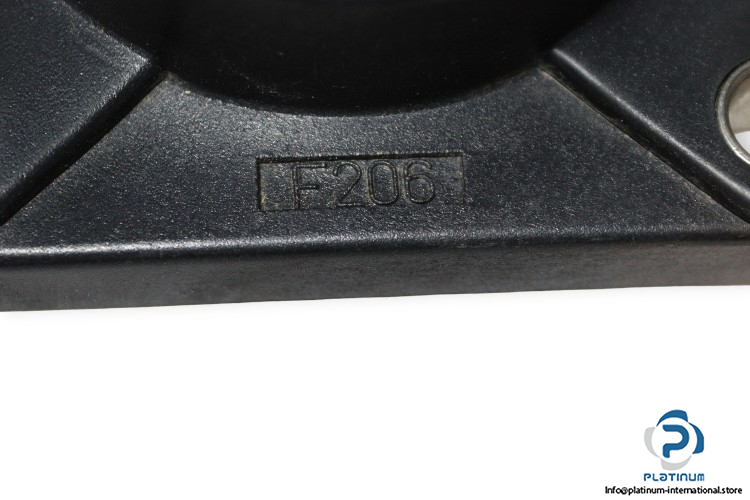

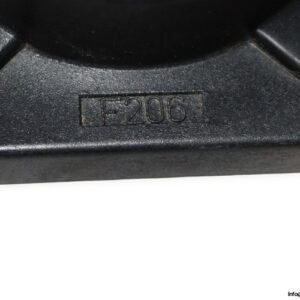

Housing No.: F206

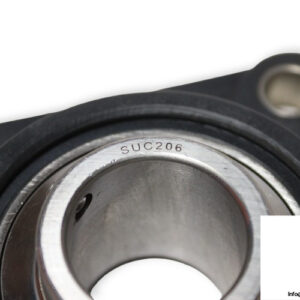

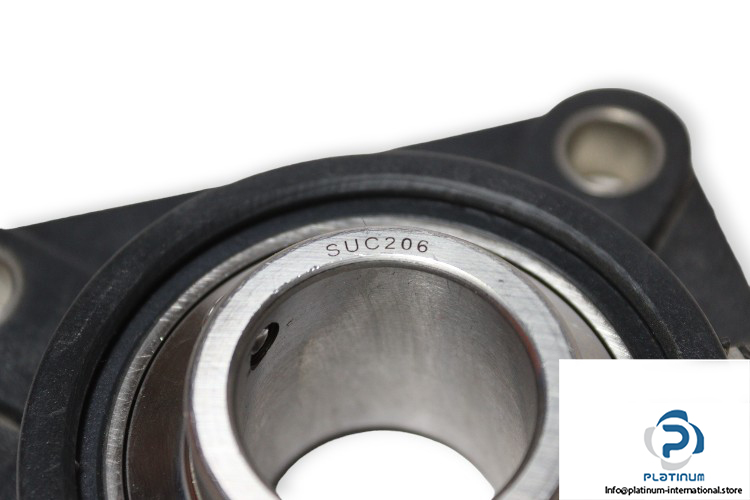

Bearing No.: SUC206

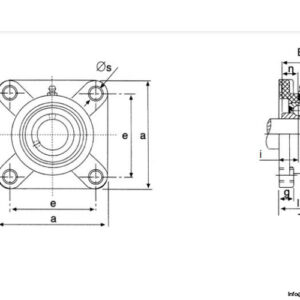

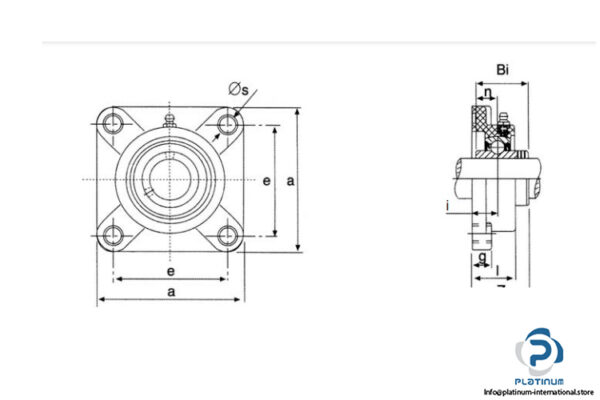

Dimensions
Bore Diameter d: 30 mm
Overall length a: 107 mm
i: 19.2 mm
Housing foot height / flange height g: 14.3 mm
Width of housing I: 31.5 mm
Distance Between Attachment Bolts e: 83 mm
Mounting hole diameter s: 11 mm
Overall width z: 41.4 mm
Mounting: Four-Bolt Flange
Housing Color: Black
Material, bearing: Stainless Steel
Material, housing: Plastic
