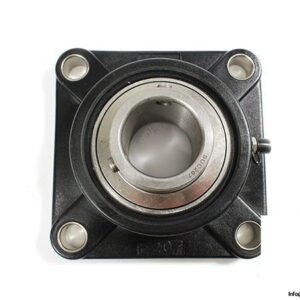

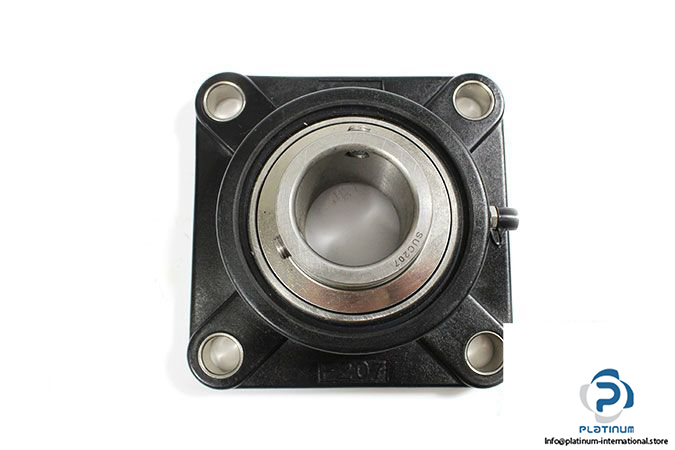

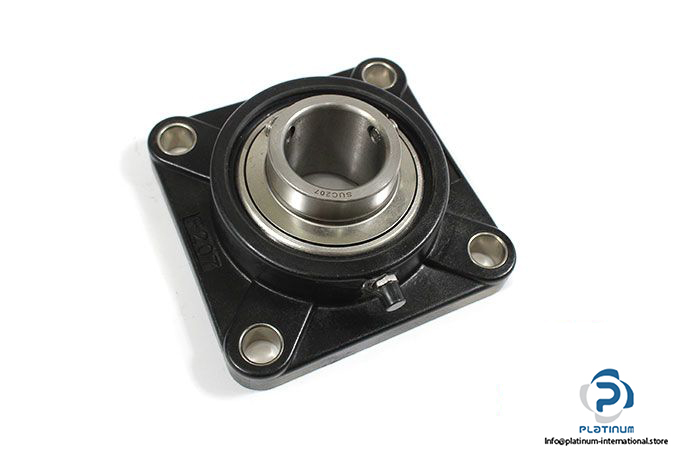

Type:  FOUR-BOLT SQUARE FLANGE UNIT

Series: UCF

Part No.: UCFP 207

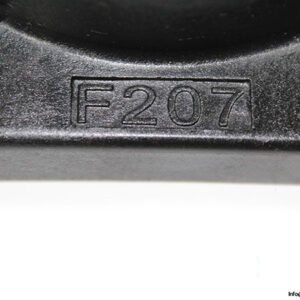

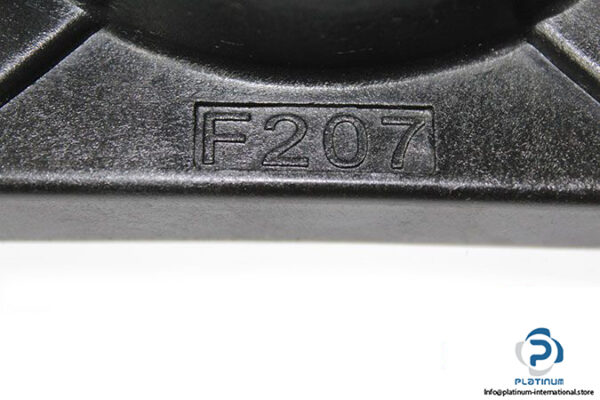

Housing No.: F207

Bearing No.: UC207



Application: The plastic pillow blocks are manufactured in accordance with FDA standards and are therefore suitable for food and pharmaceutical industries

Features:

• plastic pillow block bearings are chemically resistant
• lightweight and run quietly and smoothly in applications where metallic ball bearings will not perform

Housing material: Plastic

Bearing Material: Stainless Steel

Bore type: Round

Mounting: Four-Bolt Flange

Locking device: Set Screw

Bore Diameter: 35 mm

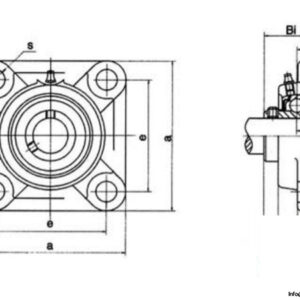

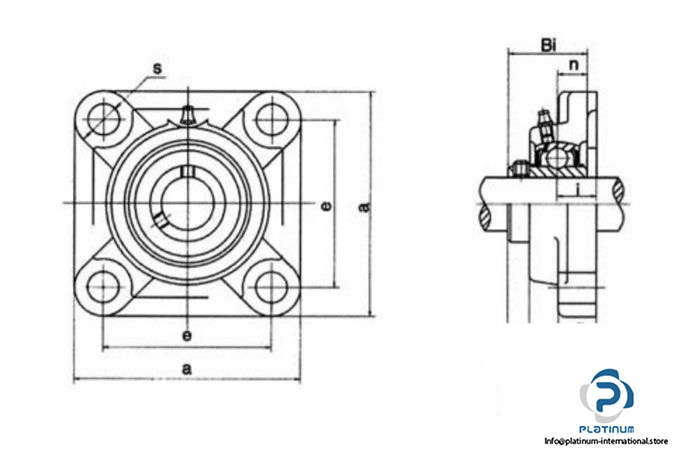

Overall length ( a ): 117 mm

Overall Width ( e ): 92 mm

Overall Height: 46 mm

thread size ( s ): 14 mm

Weight: 0.68 kg
