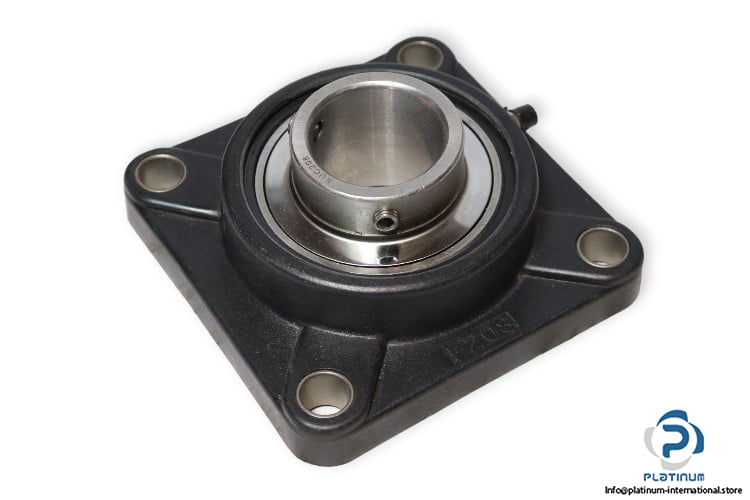

Type: plastic Four-Bolt Square Flange Unit
Model: UCF 208
Housing No.: F208

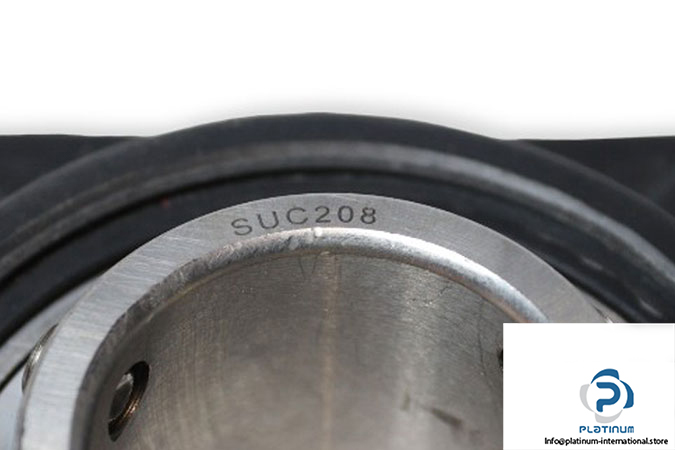

Bearing No.: SUC208

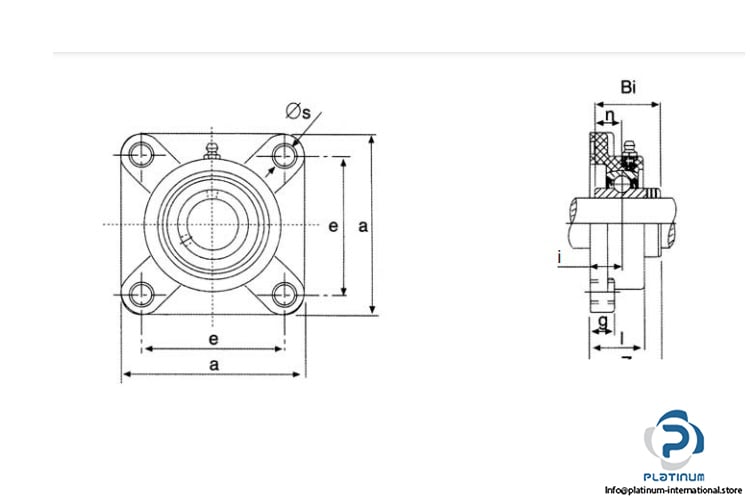

Dimensions
Bore Diameter d: 40 mm
Overall length a: 130 mm
i: 23 mm
Housing foot height / flange height g: 17 mm
Width of housing I: 37.5 mm
Distance Between Attachment Bolts e: 102 mm
Mounting hole diameter s: 14 mm
Overall width z: 53.2 mm
Mounting: Four-Bolt Flange
Housing Color: Black
Material, bearing: Stainless Steel
Material, housing: Plastic
