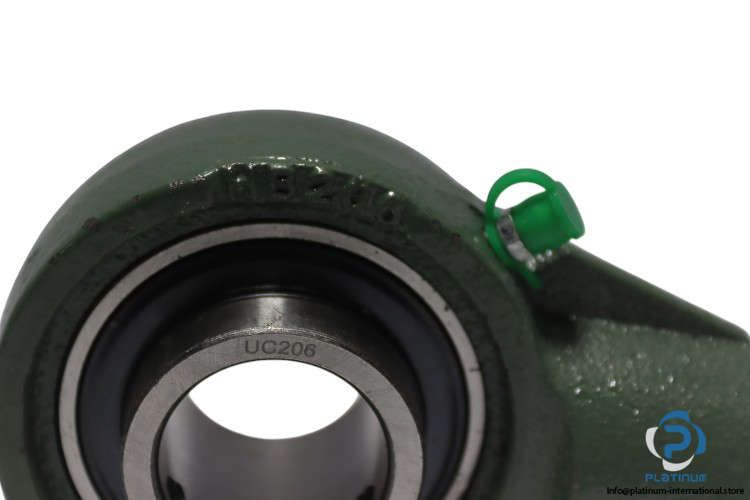

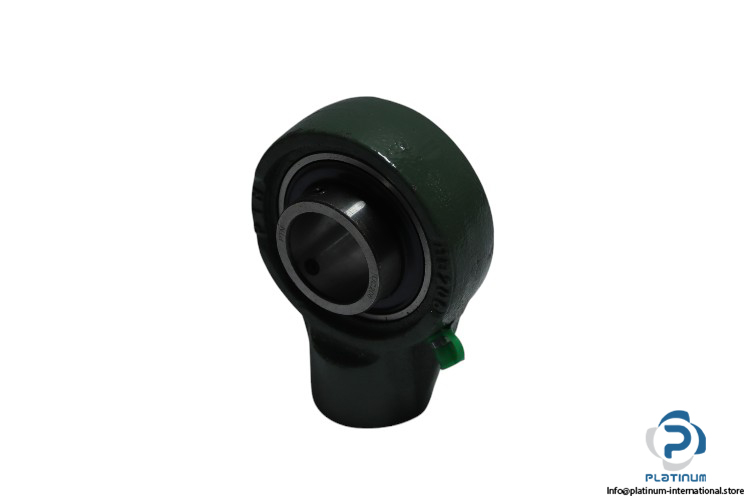

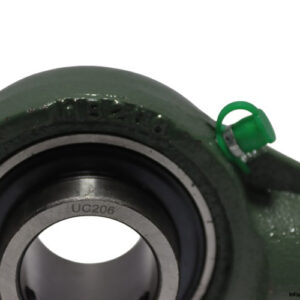

UCHB 206 Hanger Unit Cast Housing
The UCHB 206 Hanger Unit with cast housing is a robust and reliable mounted bearing solution designed for overhead or suspended shaft mounting. Featuring the UC206 bearing and HB206 housing, it provides superior load support and alignment for rotating shafts in industrial machinery.
Type: Hanger Units Cast Housing
Model: UCHB 206
Bearing Number: UC206
Housing Number: HB206
Technical Information:
- Bore Diameter (d): 30 mm
- Overall Length (L): 78 mm
- Overall Height (H1): 103 mm
- Width of Inner Ring (B): 38.1 mm
- Mounting Holes Distance (j): 19 mm
