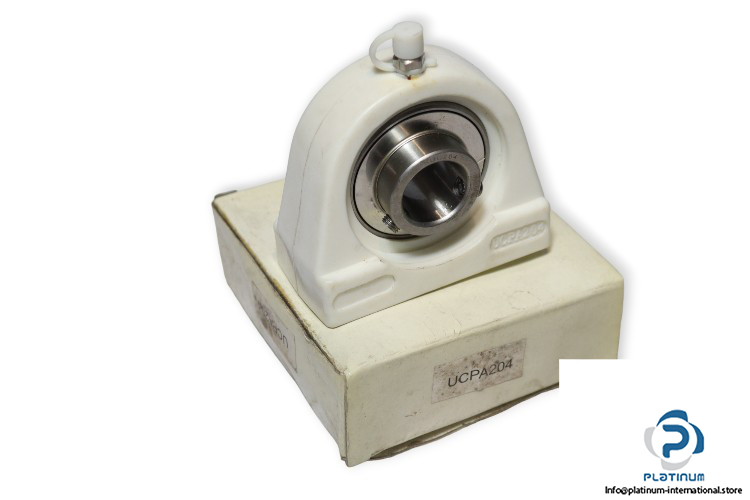

Plastic Tapped Base Pillow Block UCPA 204

The UCPA 204 is a durable tapped base pillow block designed with a plastic housing and stainless-steel bearing, offering reliable performance and corrosion resistance for various industrial applications.

Type: Plastic Tapped Base Pillow Block
Model: UCPA 204

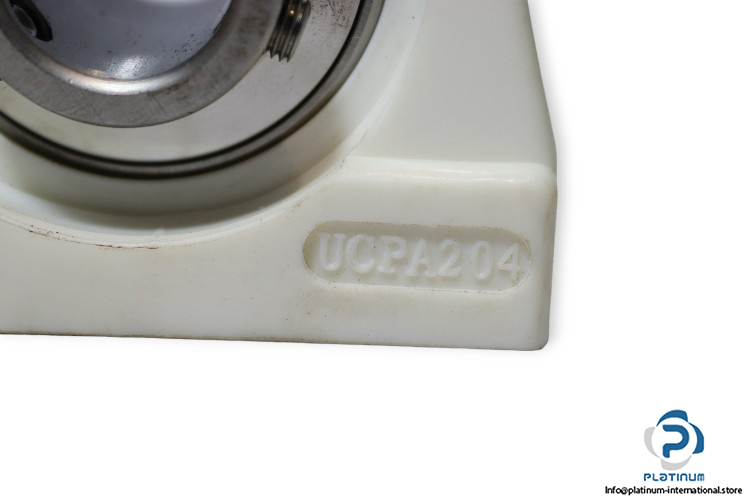

Housing No.: UCPA204

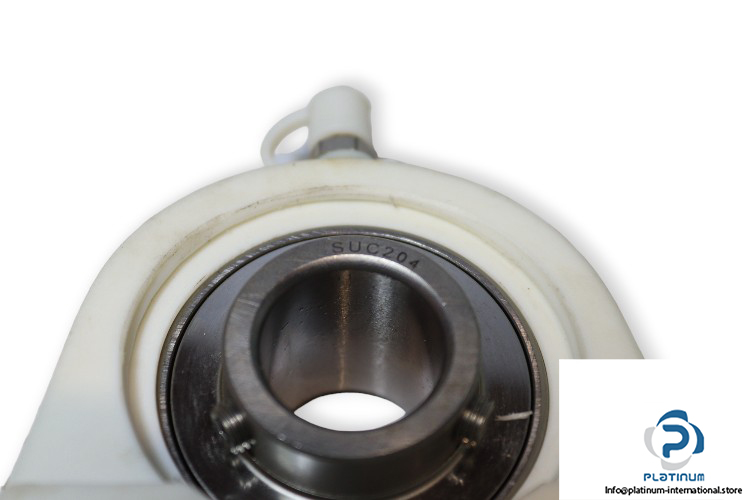

Bearing No.: SUC204

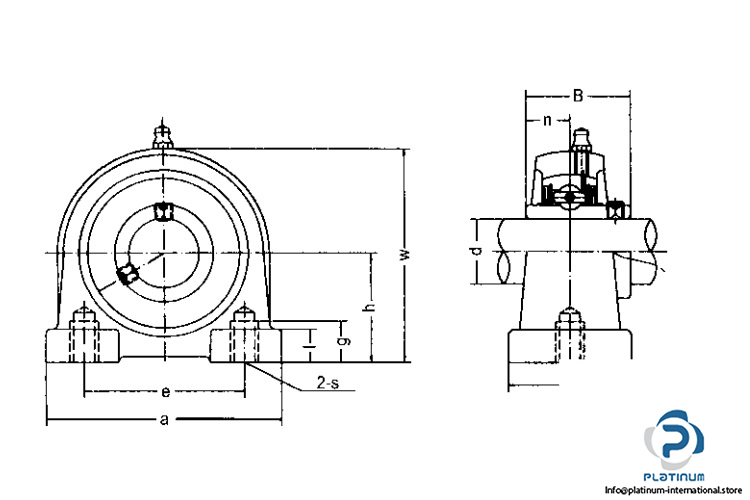

Technical Information

• Shaft Diameter (d): 20 mm
• Overall Length (a): 76 mm
• Overall Height (w): 62 mm
• Base Width (b): 40 mm
• Foot Height (g): 15 mm
• Height of Spherical Seat Center (h): 30.2 mm
• Distance Between Attachment Bolts (e): 52 mm
• Housing Type: Tapped Pillow Block
• Housing Color: White
• Material (Housing): Plastic
• Material (Bearing): Stainless Steel
