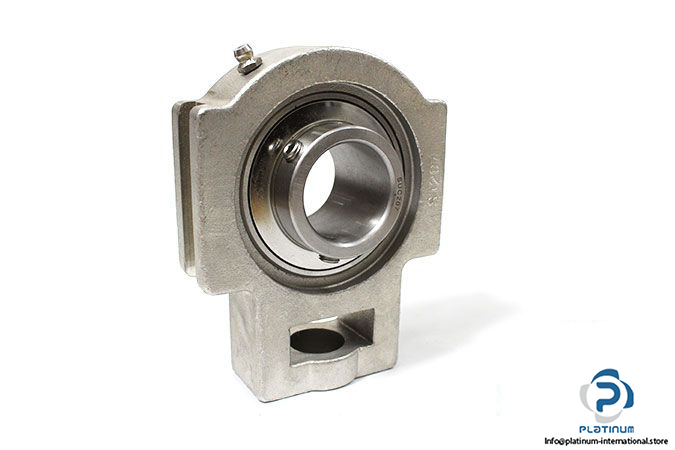

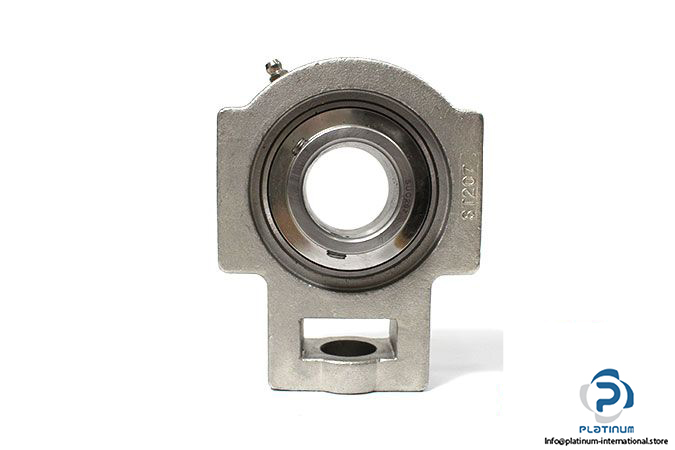

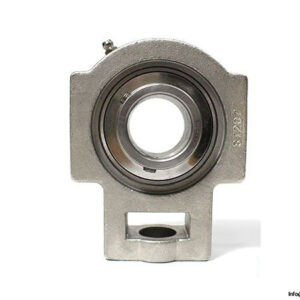

Type: TAKE UP BEARING UNIT

Series: UCT

Part No.: UCT207-SUS

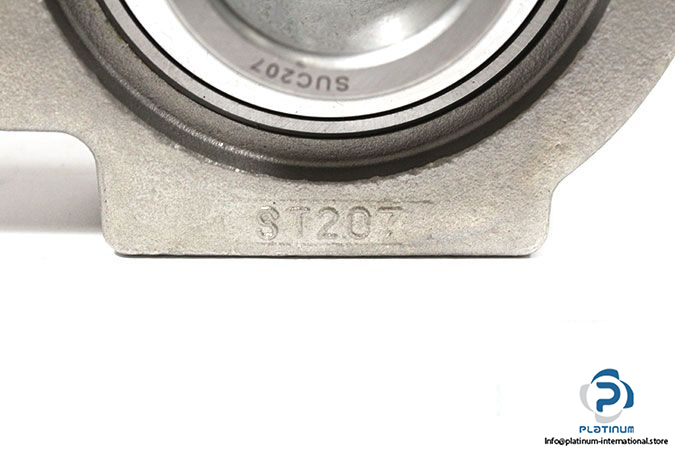

Housing No.: ST207

Bearing No.: UC207

Features:

• The stainless pillow blocks and stainless bearings–also incorporated into the plastic pillow blocks –are made of AISI 440C and AISI 420 quality stainless steel.
• All the pillow block products include full self-alignment of the bearing, hollow set-screws, steel plate slinger for effective expulsion of dust, contact type seal on both sides of the bearing and grease fitting.

Housing Material: Stainless steel

Bore type: Round

Locking device: Set Screw

Bore Diameter: 35 mm

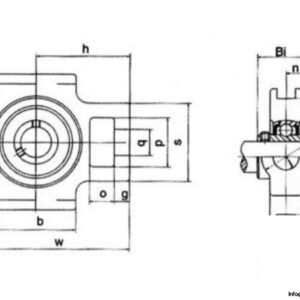

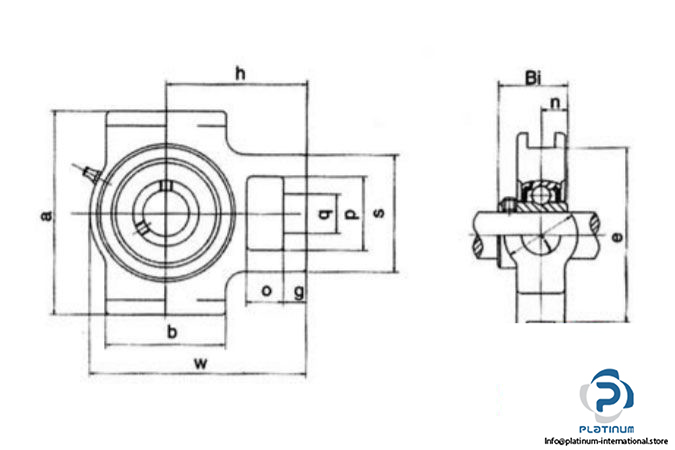

Overall length ( a ): 102 mm

Overall Width ( l ): 30 mm

Overall Height ( w ): 129 mm

Weight: 1.64 kg
