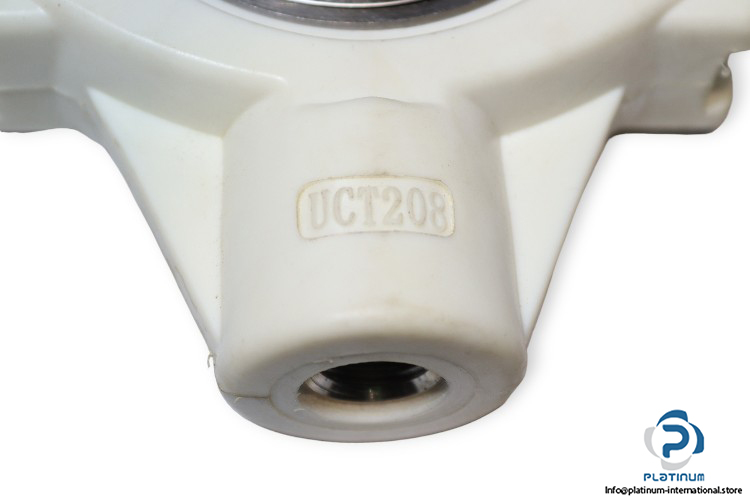

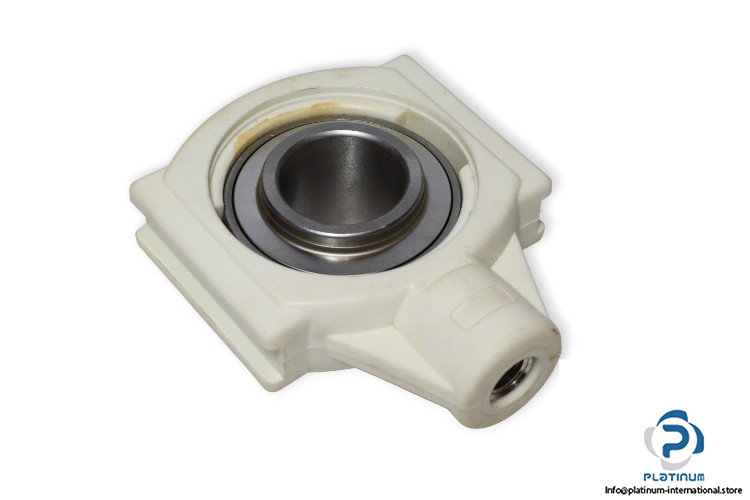

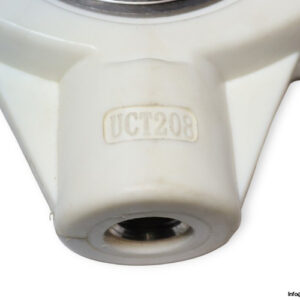

Type: Plastic take up ball bearing unit
Model: UCT 208
Housing No.: TP208
Bearing No.: SSUC208

Shaft diameter: 40 mm

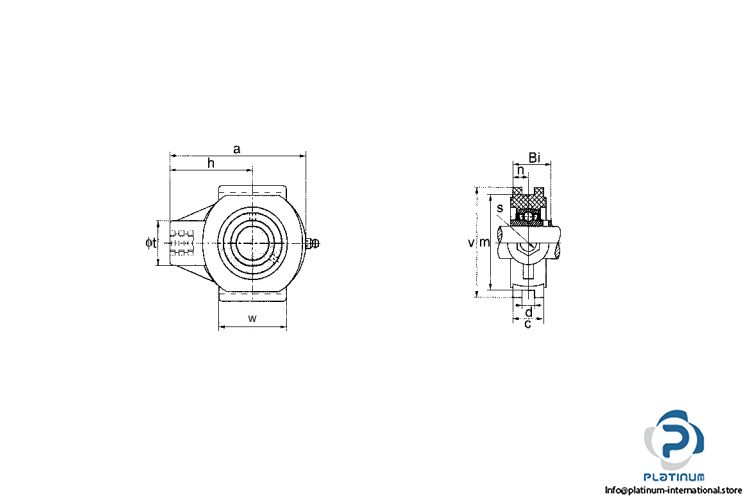

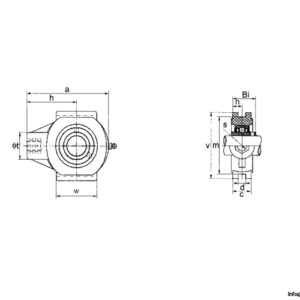

Housing length a: 140 mm
C: 34.5 mm
Width of location slot d: 16 mm
Distance from attachment end face to center line of spherical seat diameter h: 85 mm
Distance between location slots m: 102 mm
Housing height / width t: 40 mm
Housing length, width or diameter v: 114 mm
Length of guidance slot/face w: 80 mm
Width of Inner Ring Bi: 49.2 mm
Distance front side/bearing centre n: 19 mm
Housing type: Take-up
Housing Color: White
Material, housing: Plastic
Material, bearing: Stainless Steel
