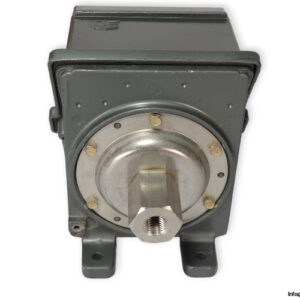

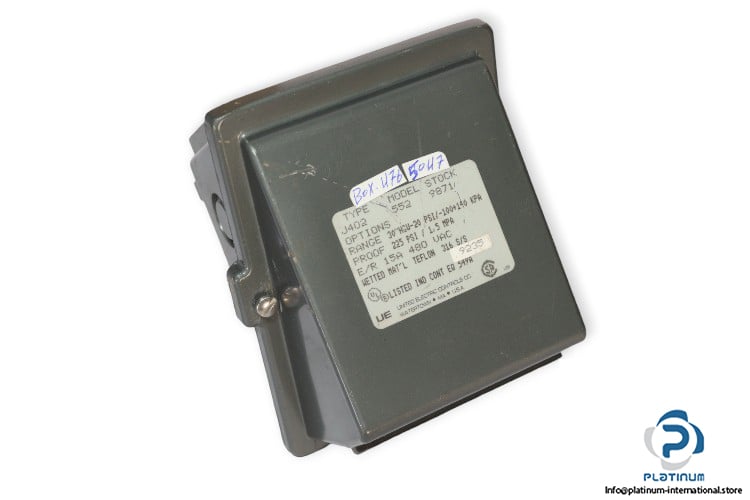

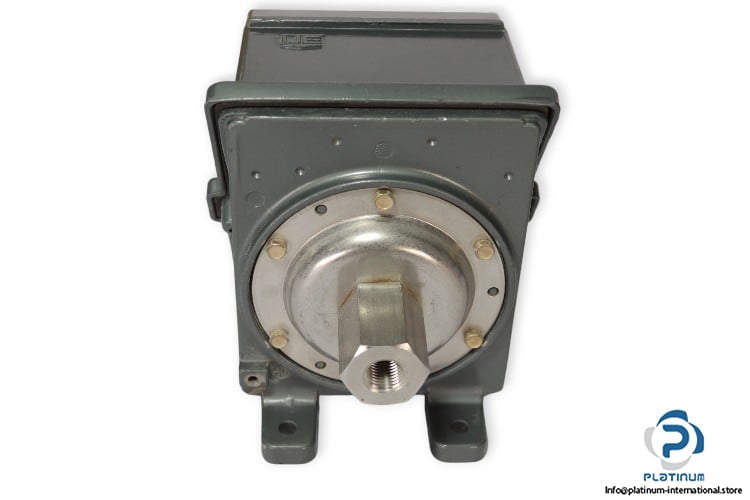

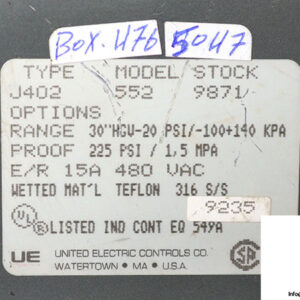

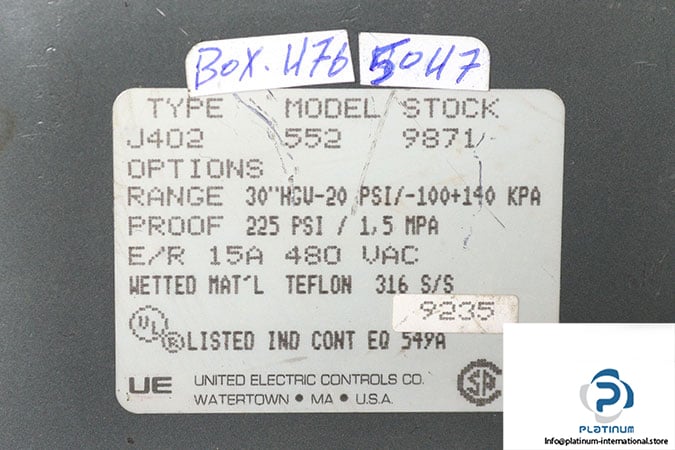

Manufacturer: UNITED ELECTRIC CONTROLS
Type: Pressure Switch
Part No.: J402-552
MNR: 9871

Adjustable Set Point Range: 30”HG Vacuum to 20 PSI,-100 … 140 KPa
Proof Pressure: 225 Psi ,1,5 MPa
Connection: G ¼
Voltage Contact Rating: 480 V AC
Max. Current Rating: 15 A
Outputs: Two SPDT outputs; internal hex screw adjustment
Enclosure: Die cast aluminum, epoxy powder coated, gasketed, captive cover screws
Wetted Part Material: Teflon® diaphragm and Viton® O-Ring with 316L stainless steel
