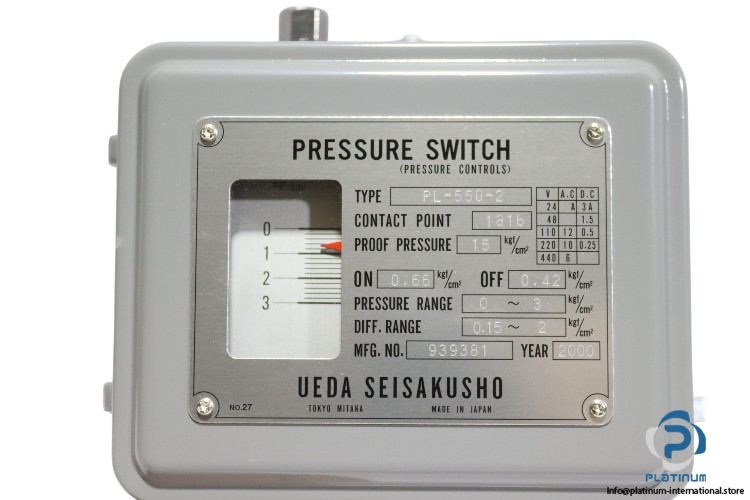

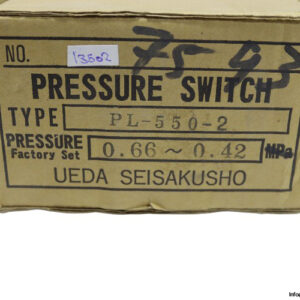

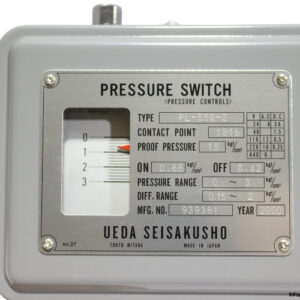

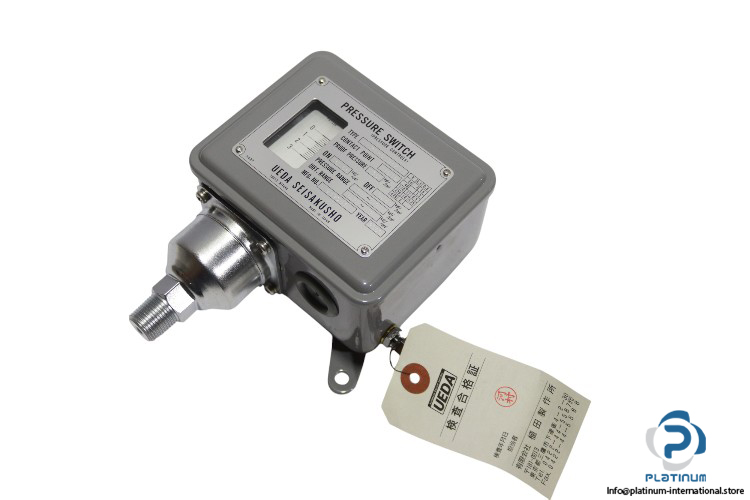

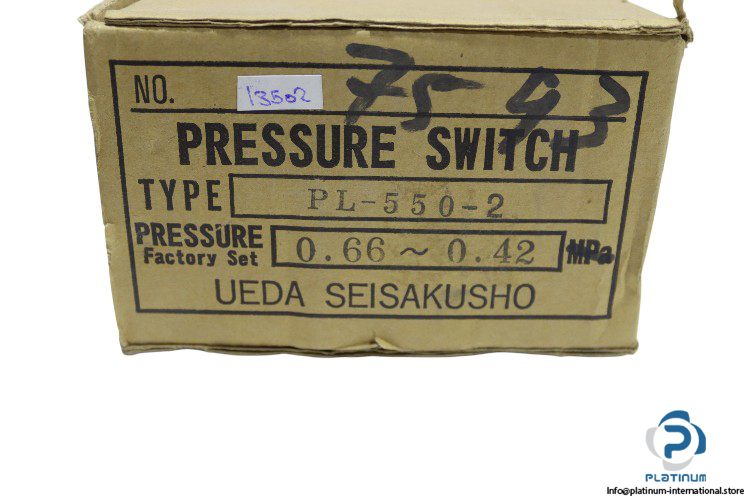

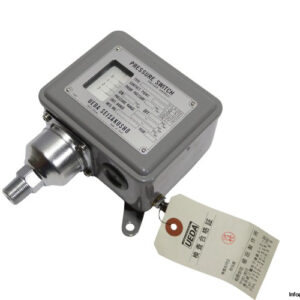

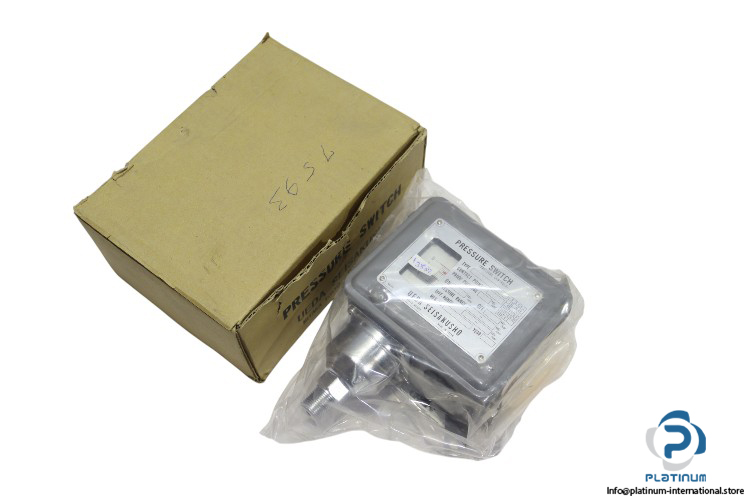

UEDA PL-550-2 Indoor General-Purpose Pressure Switch
The UEDA PL-550-2 is a high-quality indoor pressure switch designed for low and medium-pressure applications. Built with durable phosphor bronze and a bellows-type pressure receiving part, it offers reliable performance with adjustable pressure ranges and a protection structure rated at IP40.
Manufacturer: UEDA
Type: Indoor General-Purpose Pressure Switch
Model: PL-550-2
Ref No: 939381
Technical Data:
- Used For: Low and medium pressure
- Contact Point: 1a1b
- Proof Pressure: 15 kgf/cm²
- Size: W.126.5 × D.74 × H.171.5 mm
- Protection Structure: IP40 (IEC529) equivalent
- Pressure Receiving Part: Bellows Type
- Material: Phosphor Bronze
- Pressure Adjustment Range: 0 / 3 kgf/cm²
- Pressure Differential Range: 0.15 / 2 kgf/cm²
- ON-OFF Pressure: 0.66 kgf/cm² / 0.42 kgf/cm²
- Pressure Resistance: 1.5 MPa
- Port Size: G1/2
