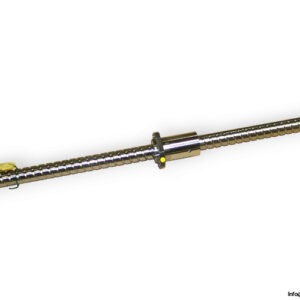

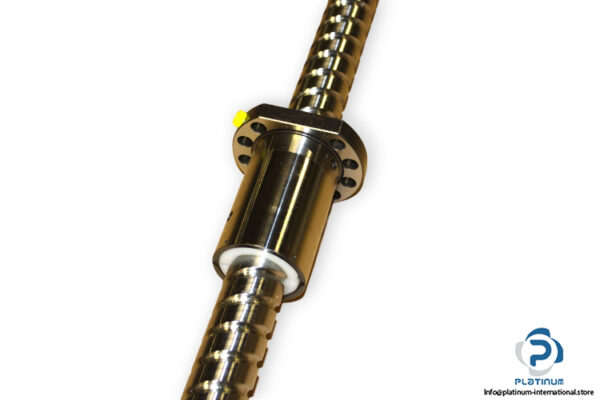

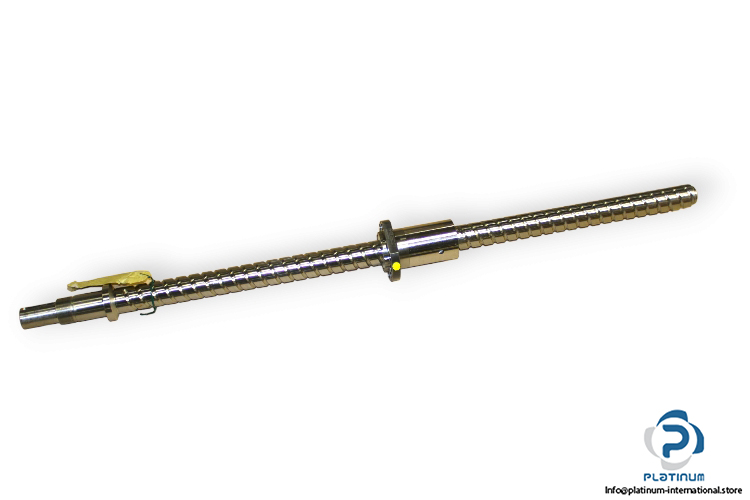

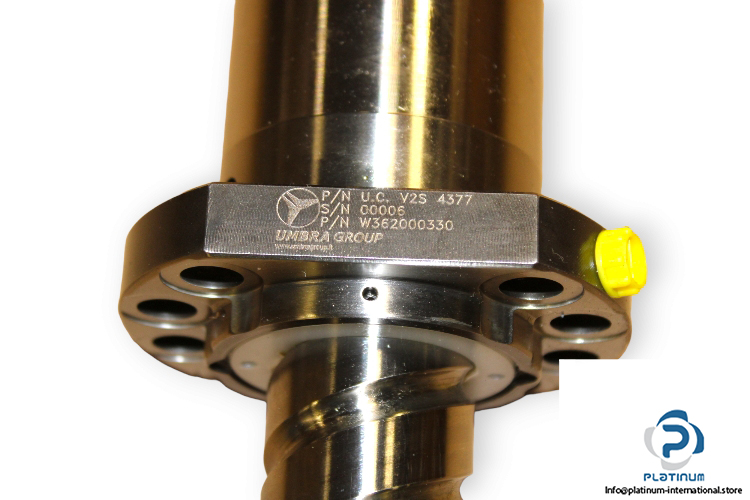

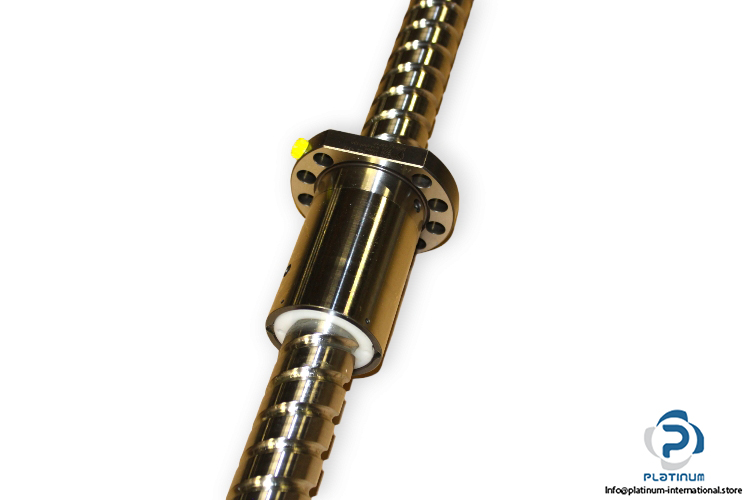

Manufacturer: UMBRA GROUP
Type: Flange nut ball screw
Model: V2S 4377-40.40.912.1077
Part no.: VA00604377
S/N: 00006
Size: 40
Nominal Diameter dN: 40 mm
Dimensions:
Flange diameter: 96 mm
Nut outer diameter: 63 mm
Nut length: 117 mm
Flange thickness: 14 mm
Cutting flange width: 78 mm
Lead P: 40 mm
Number of starts: 2
Direction of Lead: Right-Hand Thread
Threaded length: 912 mm
Total screw length: 1077 mm
Screw Bearings
UMBRA GROUP V2S 4377 BALL SCREW
Manufacturer: UMBRA GROUP
Type: Flange nut ball screw
Model: V2S 4377-40.40.912.1077
Part no.: VA00604377
S/N: 00006
Out of stock
This item is currently unavailable.
| Weight | 11 kg |
|---|---|
| Condition | |
| Model | |
| Size | |
| Shelf No. | |
| Nut Outer Diameter [mm] | |
| Flange Thickness [mm] | |
| Manufacturer | |
| Type of Product | |
| Part No. | |
| Flange Diameter [mm] | |
| Nut Length [mm] | |
| Cutting Flange Width [mm] |
