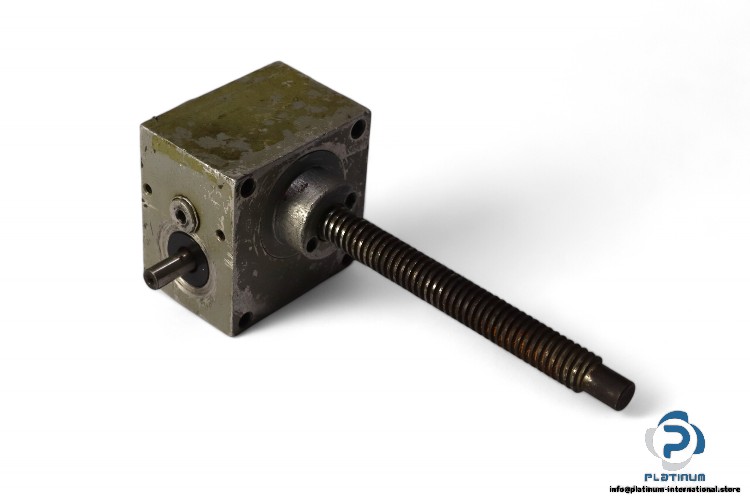

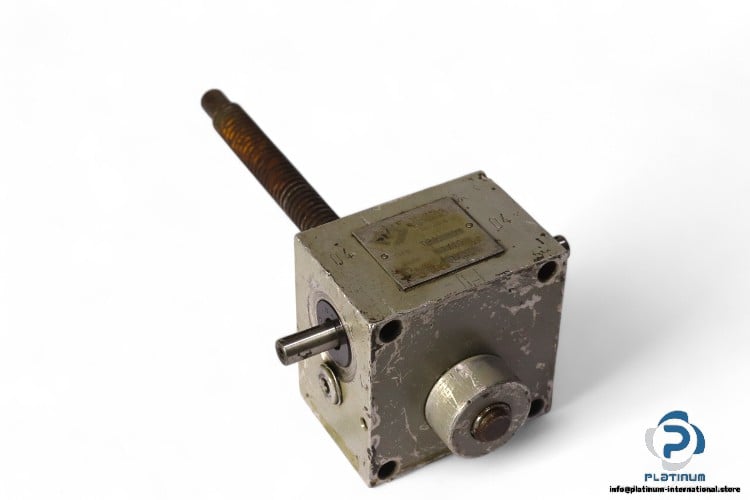

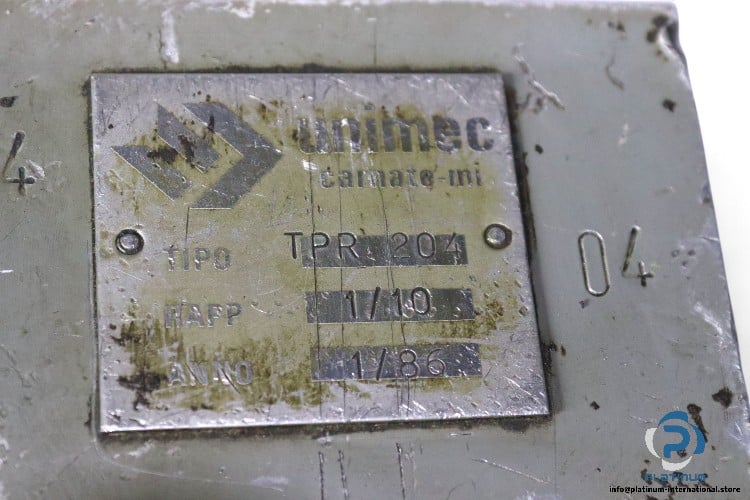

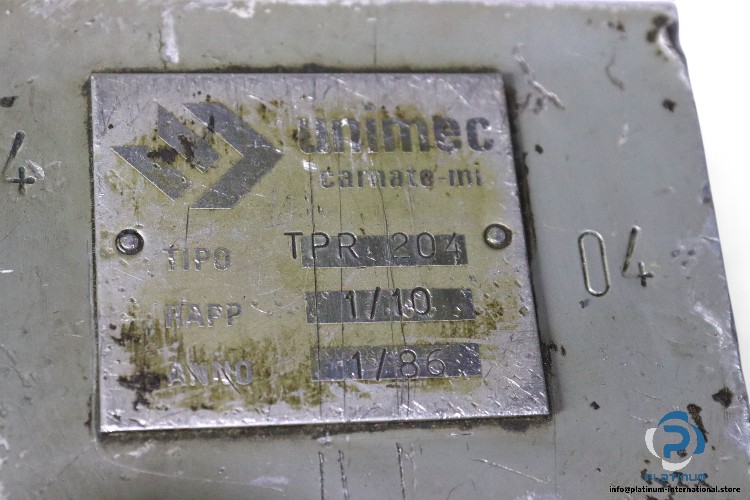

UNIMEC TPR 204 SCREW JACK

The UNIMEC TPR 204 Screw Jack is designed to provide reliable linear motion for heavy-duty applications. With a screw diameter of 20 mm and a length of 160 mm, this screw jack can handle static loads of up to 20 kN and dynamic loads up to 10 kN. Built for durability and high performance, it also features an anti-rotation torque of 17 Nm, maximum input speed of 1800 rpm, and exceptional efficiency for smooth operation.

Manufacturer: UNIMEC

Type: SCREW JACK

Model: TPR 204

Technical Specifications

• Size: 204
• Screw Diameter: 20 mm
• Screw Length: 160 mm
• Static Load (traction or compression): 20 kN
• Dynamic Load (traction or compression): 10 kN
• Maximum Input Speed: 1800 rpm
• Trapezoidal Screw Weight: 2.22 kg/m
• Anti-rotation Torque at Maximum Load: 17 Nm
• Center-to-center Diameter: 30 mm
• Maximum Radial Load on Worm: 220 N
• Operating Temperature: -10 to 80 °C
• Real Ratio: 1/10
• Translation per Worm Revolution: 0.38 mm
• Efficiency: 0.28
• Maximum Linear Speed: 720 mm/min
• Torque at Maximum Load: 2.3 Nm
• Worm Screw Maximum Torque: 54 Nm
