Manufacturer: UNITED ELECTRIC CONTROLS
Type: Differential Pressure Switch
Model: H402553

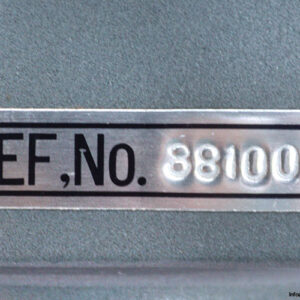

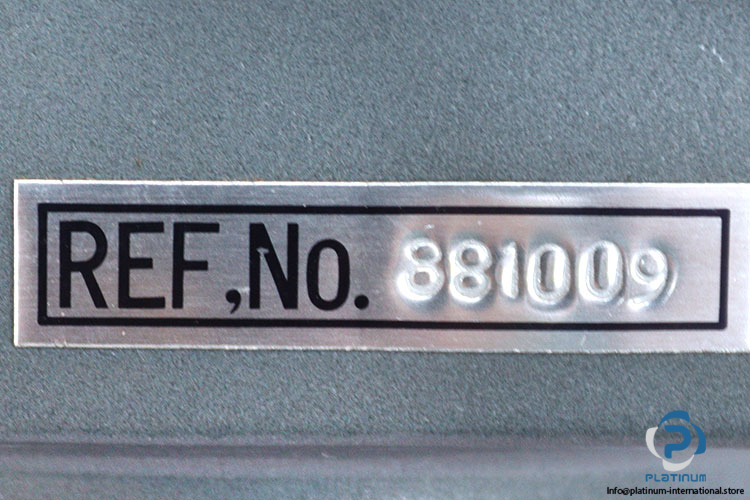

Ref. No.: 881009

Pressure: 0 … 20 PSI (0 … 1.4 bar)
Deadband: 0.05 … 0.3 PSI / 3.4 … 20.7 mbar
Over Range Pressure: 20 PSI / 1.4 bar
Proof Pressure: 225 PSI / 15,5 bar
Rated Voltage: 480 V AC
Rated Current: 15 A
Switch Output: 2-SPDT
Electrical Connection: 1/4 NPT (Female)
Wetted Material: Teflon Diaphragm and Viton O-Ring with 316L Stainless Steel
Temperature: -40 … 71 °C
Dimensions: 115.8 x 129.7 x 139.4 mm
