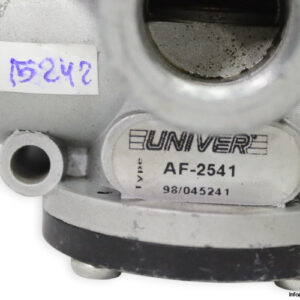

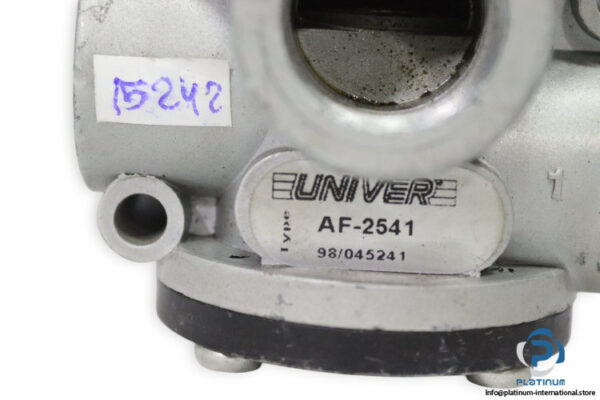

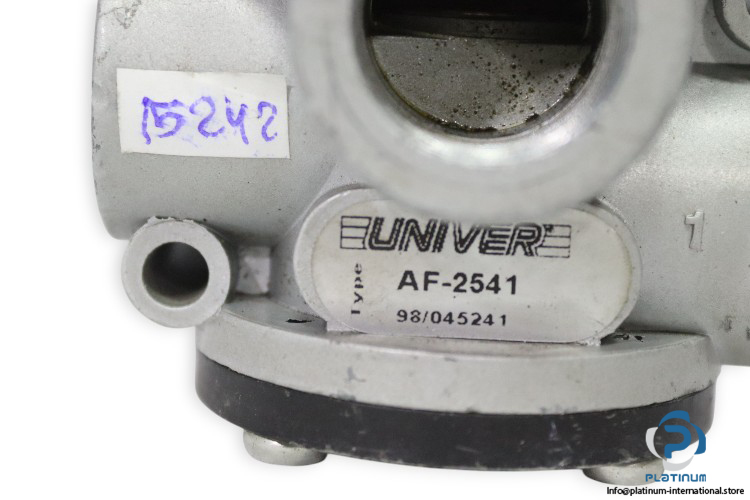

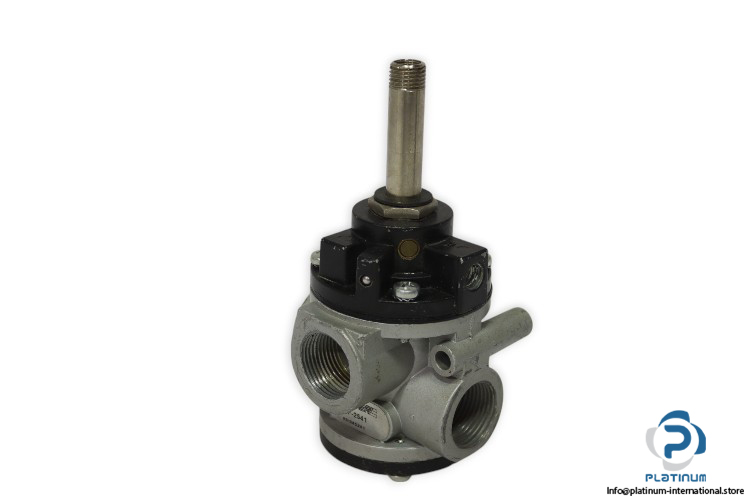

UNIVER AF2541 POPPET VALVE WITHOUT COIL

The Univer AF2541 poppet valve is engineered for high-flow pneumatic systems requiring reliable and robust air control. Designed without a coil, this valve is ideal for integration into customized actuation setups. Manufacturer: Univer
Type: Poppet Valve without coil
Model: AF2541
Series: AF
Ref No.: 98/045241

Technical Information

Commutation System: Poppet
Pressure Max: 10 bar
Fluid: Air
Nominal Bore: 19 mm
Nominal Flow Rate: 6500 Nl/min
Pneumatic Connection: G3/4
Valve Body Material: Zamak
Ambient Temperature: Max. 50°C
