UNIVER CPB50-0,0-SCP-13 ISO CYLINDER

univer-CPB50-0.0-SCP-13-iso-cylinder-(Used)
univer-CPB50-0.0-SCP-13-iso-cylinder-(Used)-1
univer-CPB50-0.0-SCP-13-iso-cylinder-(Used)
univer-CPB50-0.0-SCP-13-iso-cylinder-(Used)-1
Used
Manufacturer: UNIVER

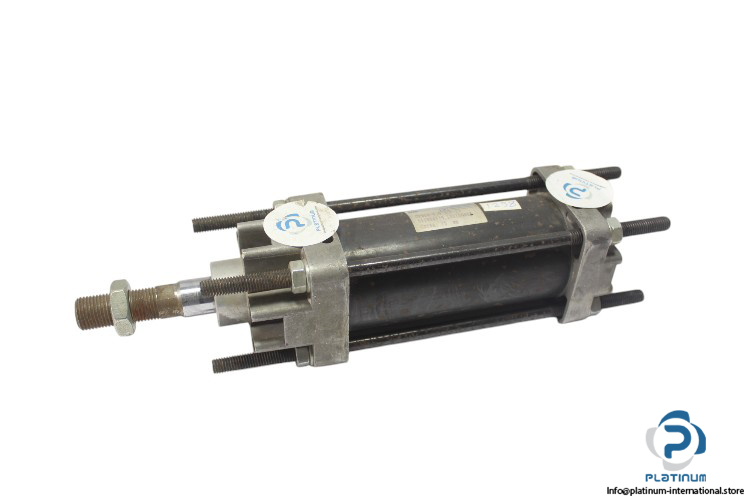

UNIVER CPB50-0,0-SCP-13 ISO CYLINDER

ISO Cylinder

UNIVER CPB50-0,0-SCP-13 ISO Cylinder is a double-acting pneumatic actuator with a 50 mm bore diameter and a 75 mm stroke. Featuring a male piston rod end and square frame design, it is built for high-performance industrial applications. Maximum pressure of 10 bar ensures reliable operation in automation systems.

SKU: 1061990 Category: Tags: , , , , , , , , , , , , , , , , , , , , , , ,
In stock: 1 pcs
Very low
Hurry! Only 1 left in stock.
Add to quote

UNIVER CPB50-0,0-SCP-13 ISO Cylinder

The UNIVER CPB5000SCP13 ISO Cylinder is a high-performance pneumatic actuator designed for precise and efficient motion control in industrial automation. Built to ISO standards, this double-acting cylinder ensures reliability and durability for demanding applications.

  • Manufacturer: UNIVER
  • Type: ISO Cylinder
  • Model: CPB50-0,0-SCP-13
  • Part No.: 01/004779 / 180150907

Technical Information

  • Media: Compressed Air
  • Bore Diameter: 50 mm
  • Stroke: 75 mm
  • Bore x Stroke: 50 x 75 mm
  • Rod Diameter: 20 mm
  • Frame Dimensions: 65 x 205 mm
  • Pneumatic Connection: G 1/4
  • Pressure Max.: 10 bar
  • Operation Mode: Double
  • Piston Rod End: Male
  • Shape: Square
  • Rod Direction: One Side
Weight1,64 kg
Condition

Type of Product

Manufacturer

Shelf No.

Model
