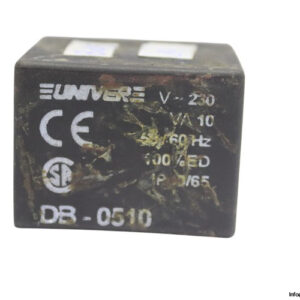

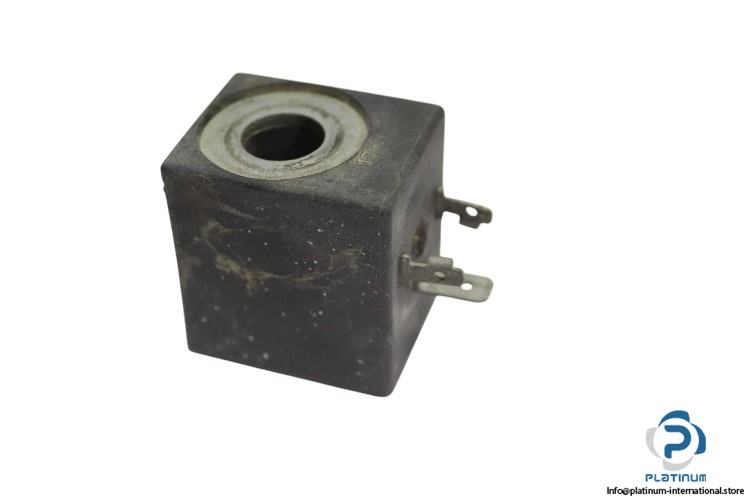

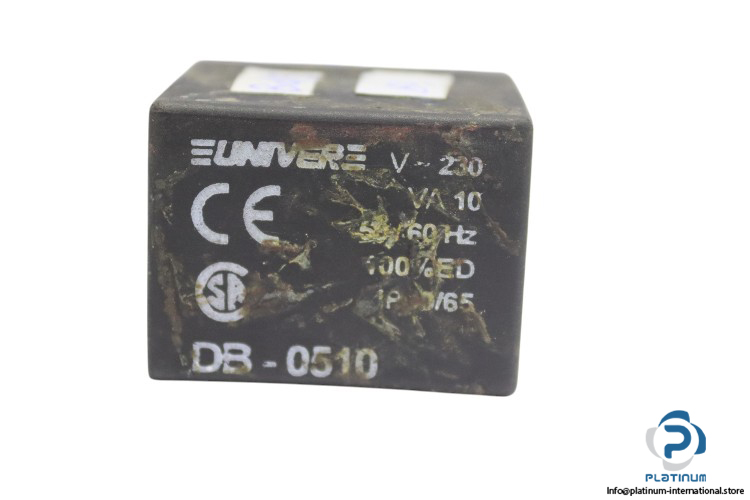

Univer DB0510 Solenoid Coil
The Univer DB0510 is a high-performance solenoid coil designed for industrial automation systems. With 230 V AC operation, compact dimensions, and durable design, it offers reliable energy transfer and coil activation across a wide range of temperatures and applications.
Manufacturer: Univer
Type: Solenoid Coil
Model: DB0510
Technical Information:
- Coil Voltage: 230 V AC
- Frequency: 50/60 Hz
- Power Consumption (Hold) Max.: 10 VA
- Power Consumption (Inrush) Max.: 16 VA
- Electrical Connection: 3-pin
- Operation: ED 100 Percent
- Plug Design: Conical
- Inner Diameter: 13.2 mm
- Length: 40 mm
- Protection Degree: IP00/65
- Ambient Temperature: -10 to 45 °C
- Fluid Temperature: -10 to 95 °C
