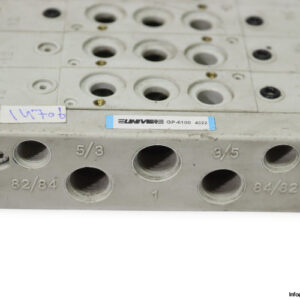

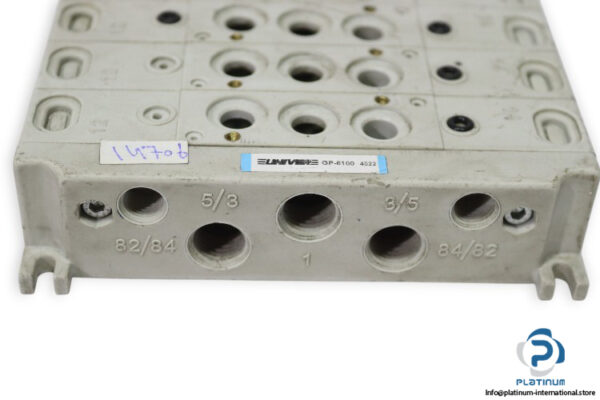

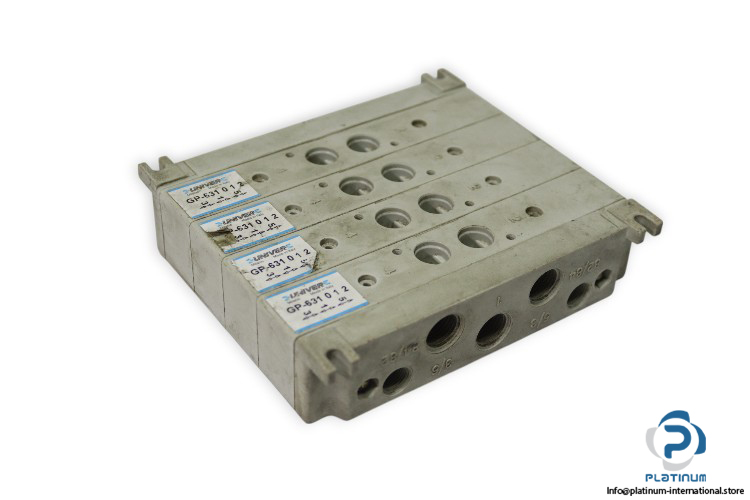

UNIVER GP-6100 4022 THREADED END PLATE WITH SUB BASE SET
This pneumatic assembly by Univer includes a threaded end plate and sub base with open diaphragms, offering flexible configuration for 5/3-way valve systems. Designed for efficient sub-base installation, it supports versatile pneumatic flow control with multiple porting options and connection types.
Manufacturer: Univer
Type: Threaded End Plate
Model: GP-6100 4022

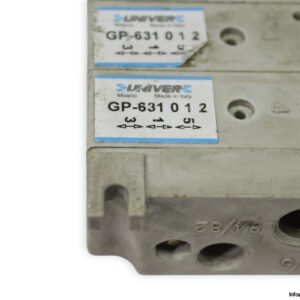

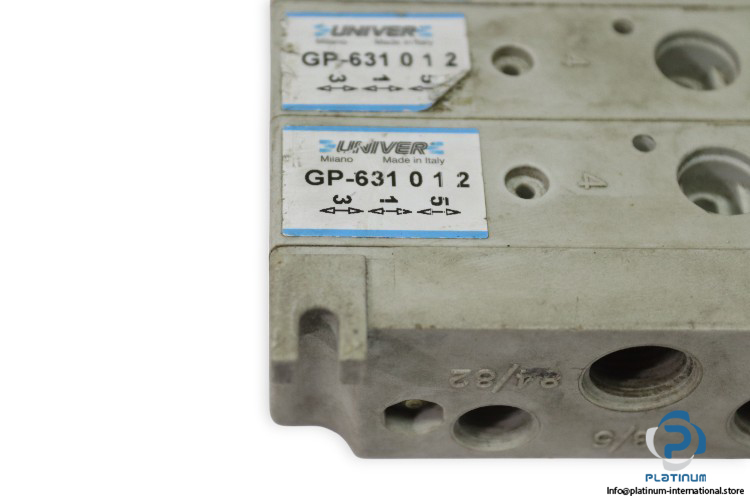

Attached With: UNIVER GP-631 0 1 2 Sub Base With Open Diaphragms
Type: Sub Base with Open Diaphragms (without electrical connection)
Model: GP-631 0 1 2
Attachment Item per Set: 4
Technical Information
- Connection: ¼ & 1/8 inch
- Design: Sub-base
- Port Labels: 1 (Pressure), 82/84, 84/82 (Exhausts), 3/5 (Work Ports)
- Valve Configuration: 5/3-way (center-closed, center-exhausted, or pressure-held based on valve internals)
