UNIVER K2000500100M ISO CYLINDER

univer-K2000500100M-iso-cylinder-(Used)
univer-K2000500100M-iso-cylinder-(Used)-1
univer-K2000500100M-iso-cylinder-(Used)
univer-K2000500100M-iso-cylinder-(Used)-1
Used
Manufacturer: UNIVER

UNIVER K2000500100M ISO CYLINDER

ISO Cylinder

The UNIVER K2000500100M ISO Cylinder delivers precise linear motion with a 50 mm bore, 100 mm stroke, and a double-acting compressed air operation. Designed with a square shape and one-side rod direction.

SKU: 1062537 Category: Tags: , , , , , , , , , , , , , , , , , , , , , , , , , , ,
In stock: 1 pcs
Very low
Hurry! Only 1 left in stock.
Add to quote

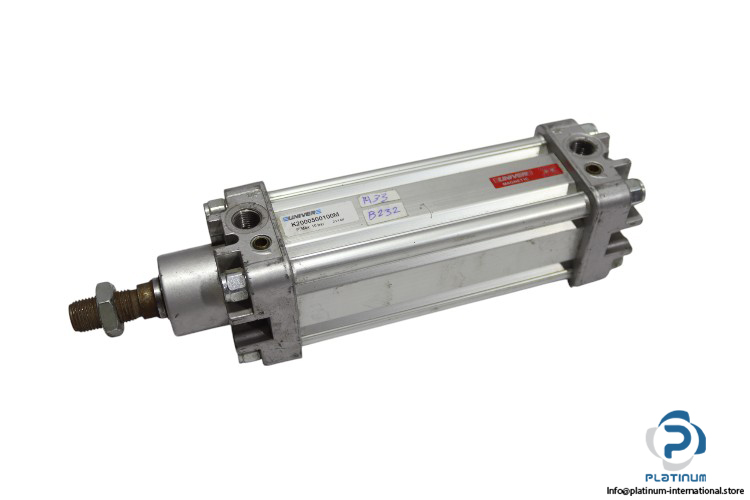

UNIVER K2000500100M ISO Cylinder

The UNIVER K2000500100M ISO Cylinder is a robust and reliable pneumatic actuator designed for industrial automation applications. It operates with compressed air and offers a double-acting motion, ideal for precise and powerful linear movement.

Manufacturer: UNIVER

Type: ISO Cylinder

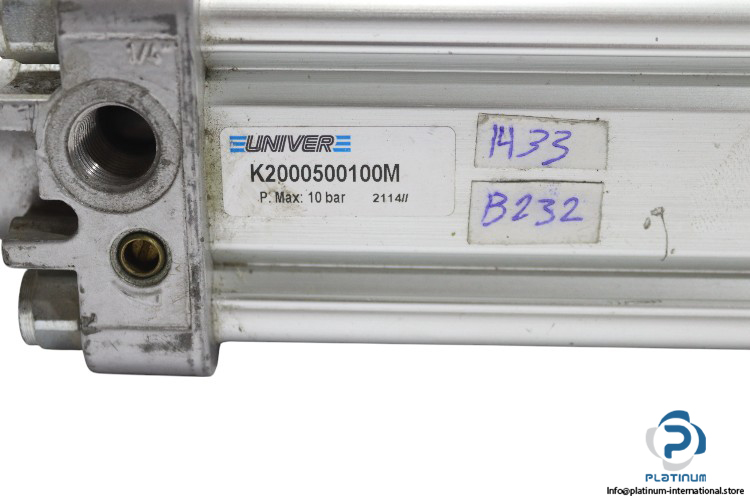

Model: K2000500100M

Technical Information:

  • Media: Compressed Air
  • Bore Diameter: 50 mm
  • Stroke: 100 mm
  • Bore x Stroke: 50 x 100 mm
  • Rod Diameter: 20 mm
  • Frame Dimensions: 67 x 235 mm
  • Pneumatic Connection: G 1/4
  • Pressure Max.: 10 bar
  • Operation Mode: Double
  • Piston Rod End: Male
  • Shape: Square
  • Rod Direction: One Side
Weight1,73 kg
Condition

Type of Product

Manufacturer

Shelf No.

Model
