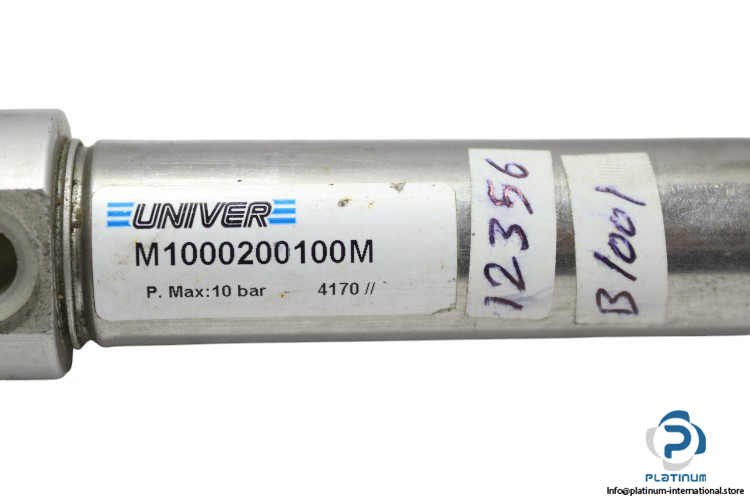

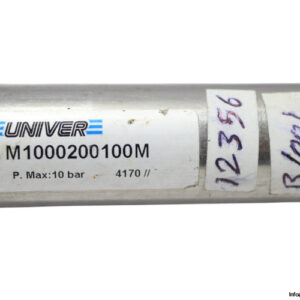

Univer M1000200100M Microcylinder
The Univer M1000200100M is a compact and durable pneumatic microcylinder designed for precise motion in space-limited applications. Built from stainless steel with crimped heads, this double-acting cylinder is ideal for high-performance automation systems operating at pressures up to 10 bar.
Manufacturer: Univer
Type: Microcylinder
Model: M1000200100M
Technical Information:
- Media: Filtered Air, Lubricated or Non-Lubricated
- Piston Diameter: 20 mm
- Stroke: 100 mm
- Pneumatic Connection: G1/8
- Operation Mode: Double Acting
- Piston Rod Thread: Male
- Shape: Circular
- Operating Pressure: Max. 10 bar
- Ambient Temperature: -20 to 80 °C
- Rod Material: Stainless Steel
- Barrel Material: Stainless Steel with Crimped Heads
