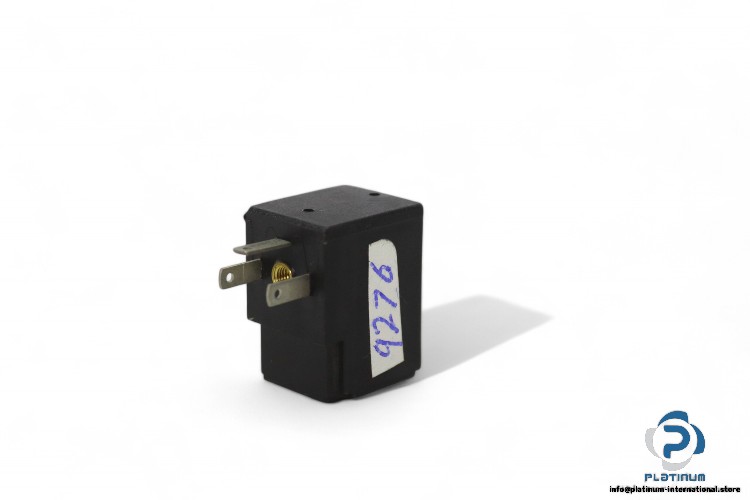

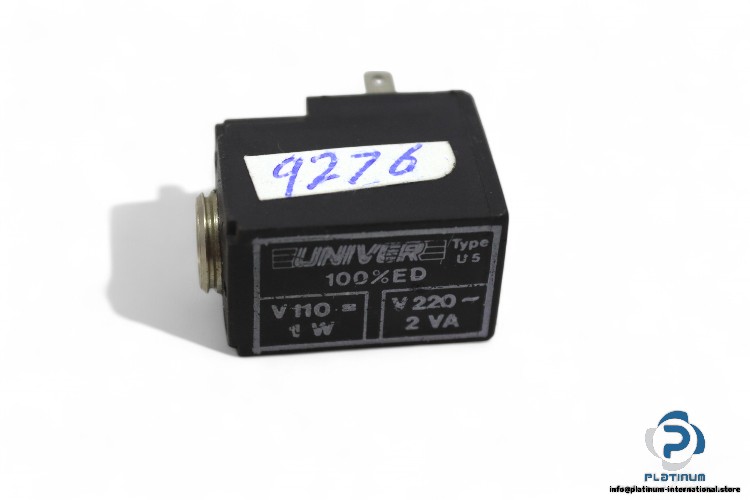

UNIVER Electrical Coil – Model U5
The UNIVER U5 electrical coil is designed for use in industrial and automation systems, operating with both 110 VDC and 220 VAC. It offers a power rating of 2 VA (for AC) and 1 W (for DC), ensuring efficient performance. The coil features a 3-pin electrical connection and operates with a 100% duty cycle (ED). The coil’s inner diameter measures 7 mm, with an overall length of 24 mm, making it a versatile and compact choice for various applications.
🔧 Technical Specifications:
- Manufacturer: UNIVER
- Type: Electrical Coil
- Model: U5
- Voltage: 110 VDC / 220 VAC
- Power: 2 VA (AC) / 1 W (DC)
- Electrical Connection: 3-pin
- Inner Diameter: 7 mm
- Length: 24 mm
- Operation: ED 100% (Duty cycle)
