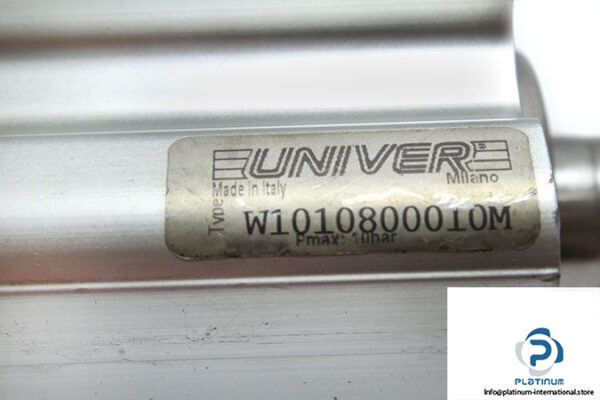

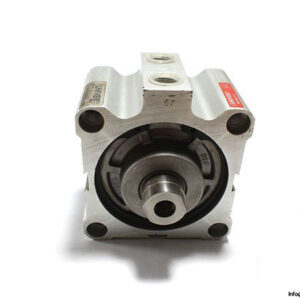

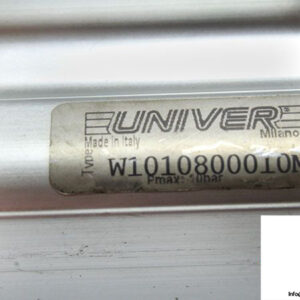

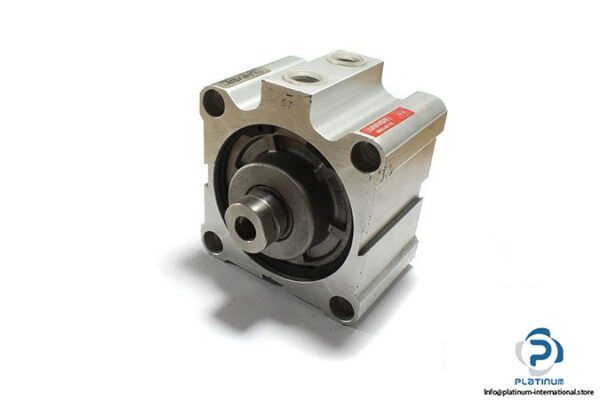

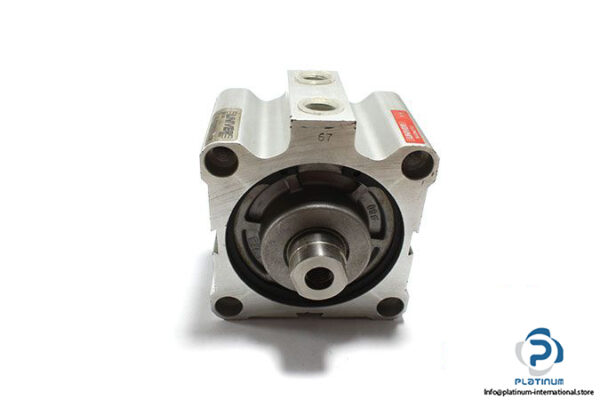

UNIVER W101-080-0010-M Double Acting Short-Stroke Cylinder
The UNIVER W101-080-0010-M is a robust double acting short-stroke cylinder designed for reliable performance in pneumatic applications. Constructed with anodized aluminium barrel, aluminium piston and end-caps, and stainless steel piston rod, it offers durability, precision, and long service life under demanding conditions.
Manufacturer: UNIVER
Type: Double Acting Short-Stroke Cylinder
Model: W101-080-0010-M
Technical information
- Material: Barrel: Anodized Aluminium; Piston and End-Caps: Aluminium; Piston Rod: Stainless Steel
- Stroke Length: 10 mm
- Bore Size: 80 mm
- Piston Rod End: Female thread
- Port Size: G 3/8
- Variants: Standard
- Operating Pressure: 1.5 / 10 bar
- Mode of Operation: Double-acting
- Fluid: Filtered air
- Magnet: With Magnet
- Temperature Range: -20 / 80 °C
