Manufacturer: Urmet

Type: Active Synchronized IR Barriers

Model: 1033/190



Power Supply: 12/24 Vcc/Vca

Absorption: 60 mA

Nominal Flow: 150 m max.

Reach Outside: 50 m max.

Signal Transmitted: Modulated Infrared

Wavelength: 950 nm

Modulation: Impulsive

Pause Duration Time: 7 ms

Impulse Duration Time: 20 ms

Pulse Withdrawal Time: 2 ms

Operation: With or Without Synchronism

Operating Temperature: -20…70 °C

Intervention Time: 30 ÷ 300 ms

Relay Excitation Time: 1 s Minimum

Contacts Relay: NC

Relay Contact Range: 1 A @24 Vcc

Horizontal Angle Mirrors 180 °C

Dimension: 127 x 60 x 55 mm

Weight: 0.27 kg

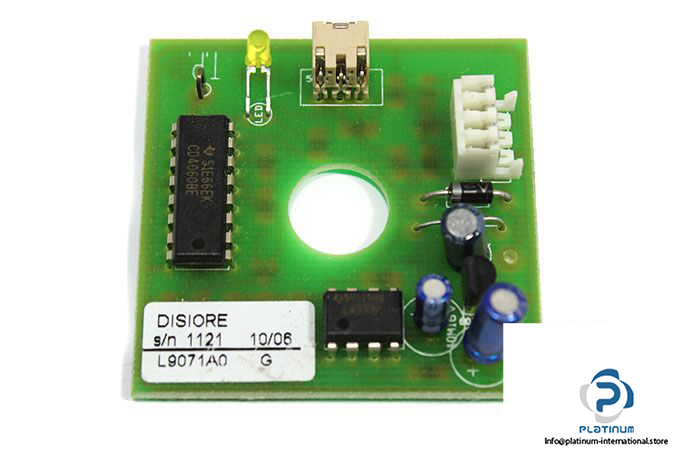

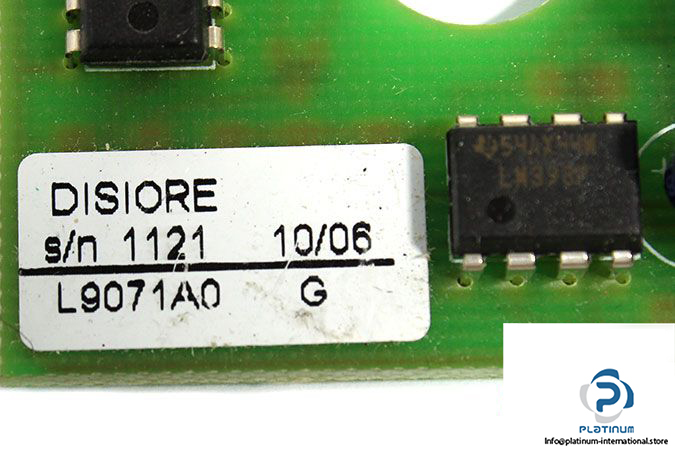

Attachment: DISIORE L9071A0 BOARD

Manufacturer: Urmet / Disiore

Type: Board

Model: L9071A0
