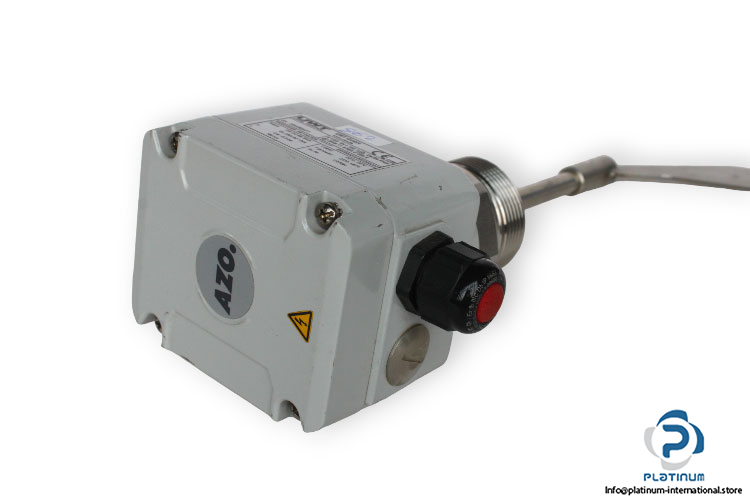

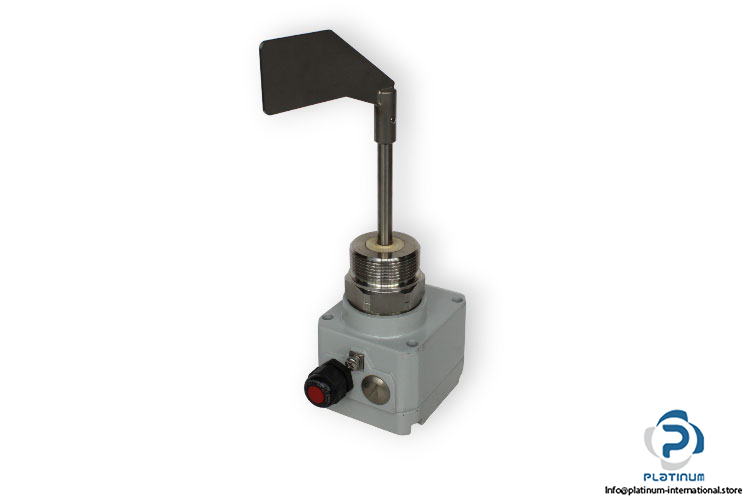

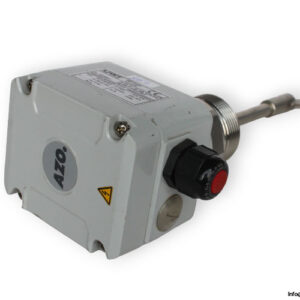

UWT RN3001/SG29 AW11XA7B7A Rotary Paddle Level Switch
The UWT RN3001/SG29 AW11XA7B7A is a durable and precise rotary paddle level switch designed for solid material detection in industrial processes. With robust stainless steel and aluminum construction, it ensures reliable operation under challenging environmental conditions.
Manufacturer: UWT
Type: Rotary Paddle Level Switch
Model: RN3001/SG29 AW11XA7B7A
Art. No.: 1107081

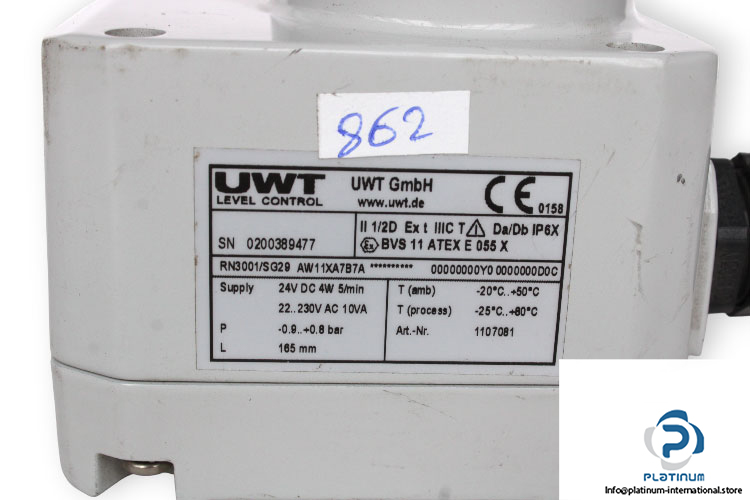

Technical Information
- Medium: Solids
- Process Pressure: -0.9 / 0.8 bar
- Supply Voltage: 24 V DC / 22 / 230 V AC
- Power Consumption Max.: 4 W / 10 VA
- Measuring Tube Length: 165 mm
- Material: Stainless Steel / Aluminum
- Protection Class: IP66
- Process Temperature: -25 / 50 °C
- Ambient Temperature: -20 / 70 °C
