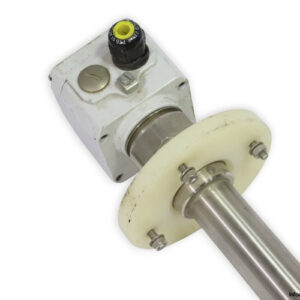

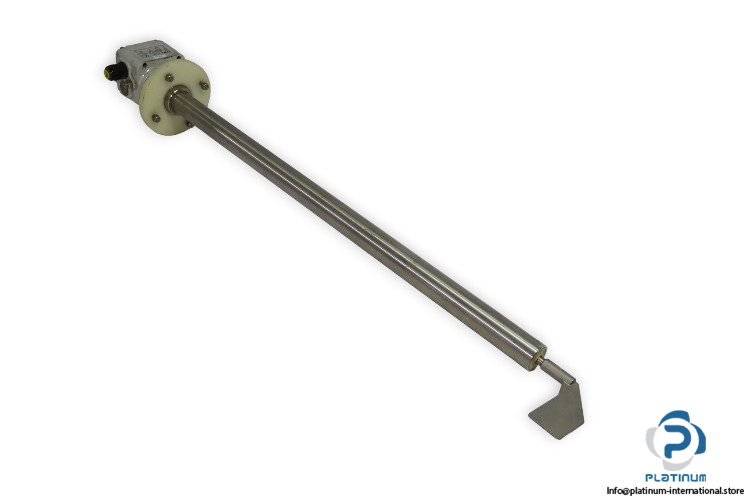

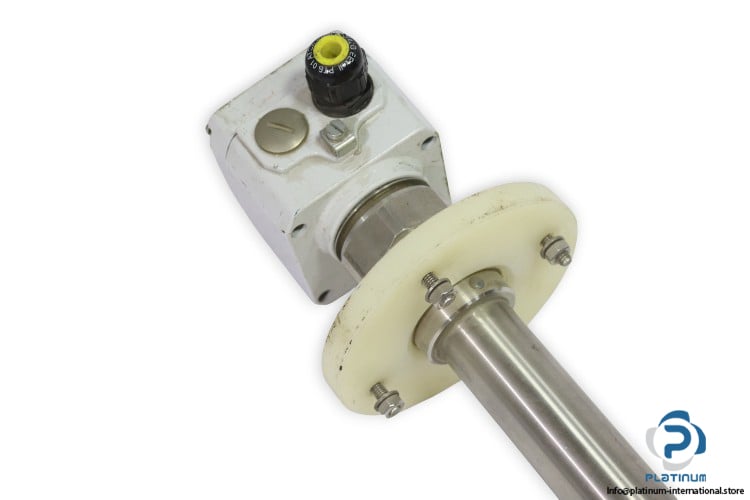

UWT RN 3002 WGSG29LGS29D Rotary Paddle Level Switch

The UWT RN 3002 WGSG29LGS29D is a durable rotary paddle level switch engineered for solid medium applications. Designed with stainless steel and aluminum construction, it offers reliable operation in demanding industrial environments. With robust protection, efficient power usage, and compatibility with electronic inserts, this device ensures precise level measurement.

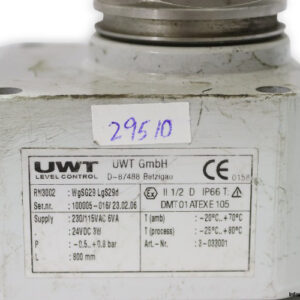

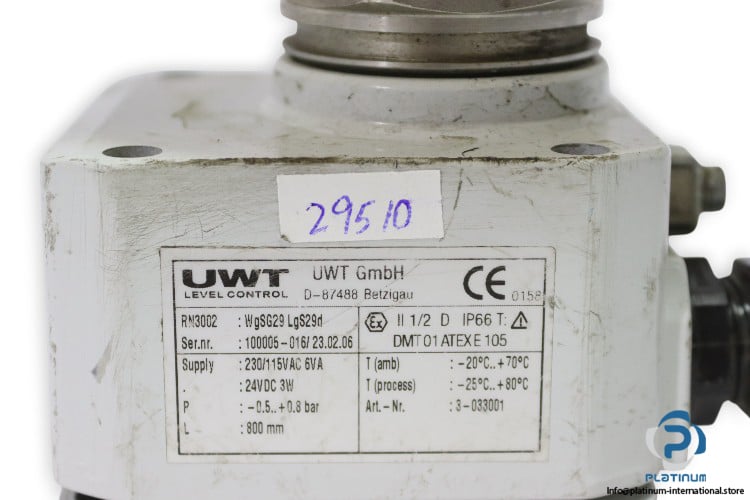

Manufacturer: UWT
Type: Rotary Paddle Level Switch
Model: RN 3002 WGSG29LGS29D
Art. No.: 3-033001

Technical Information

• Medium: Solids
• Process Pressure: -0.5 / 0.8 bar
• Supply Voltage: 24 V DC / 230 – 115 V AC
• Power Consumption Max.: 3 W / 6 VA
• Material: Stainless Steel / Aluminum
• Flange Size: DN32
• Measuring Tube Length: 800 mm
• Protection Class: IP66
• Process Temperature: -25 … 80 °C
• Ambient Temperature: -20 / 70 °C

Attachment

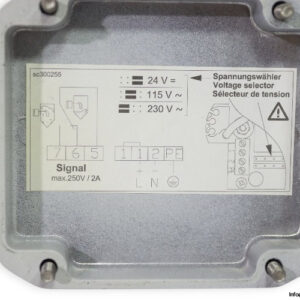

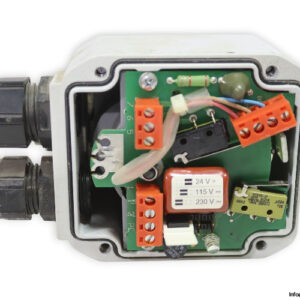

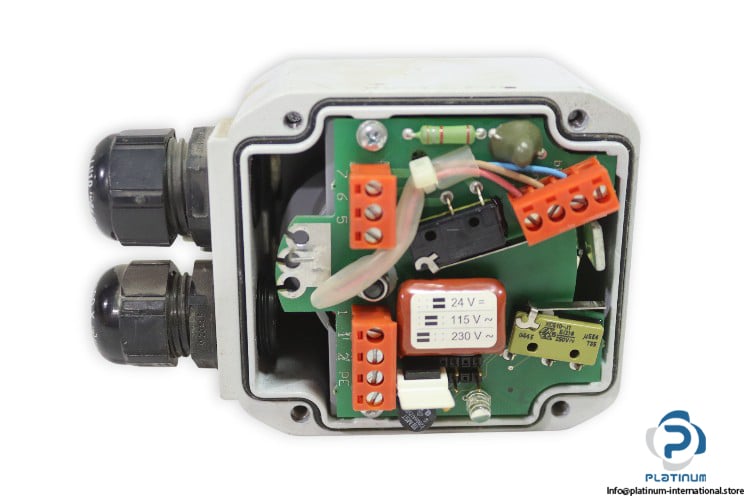

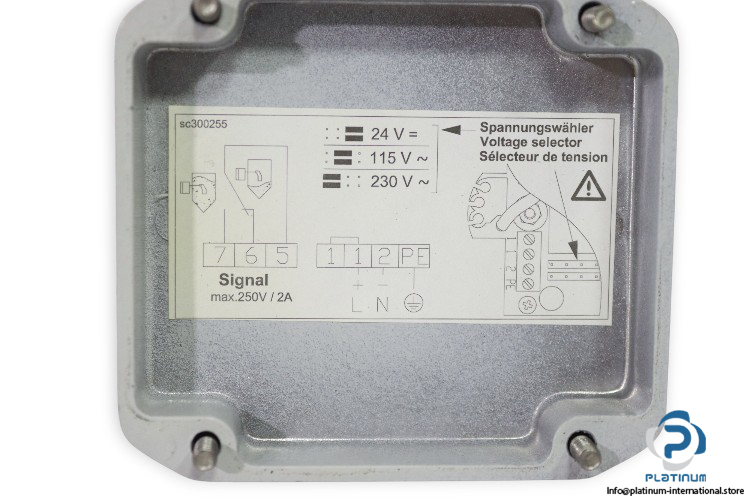

UWT sc300255 Electronic Insert

• Manufacturer: UWT
• Type: Electronic Insert
• Model: sc300255
• Supply Voltage: 24 V DC / 230 – 115 V AC
• Output Relay: SPDT Change-Over (CO)
• Output Voltage: 250 V AC
• Output Current: 2 A
