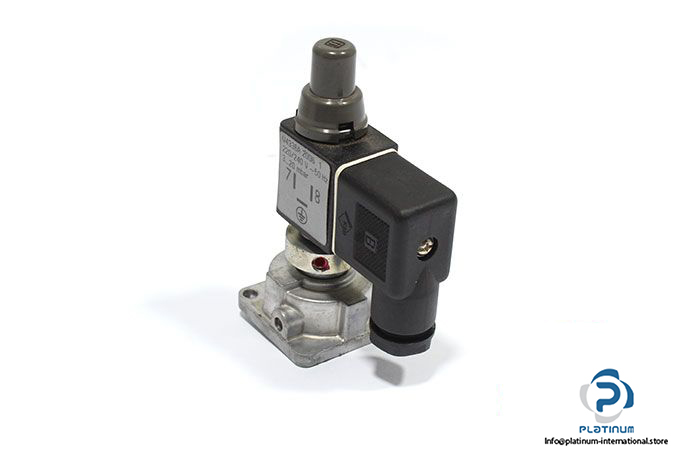

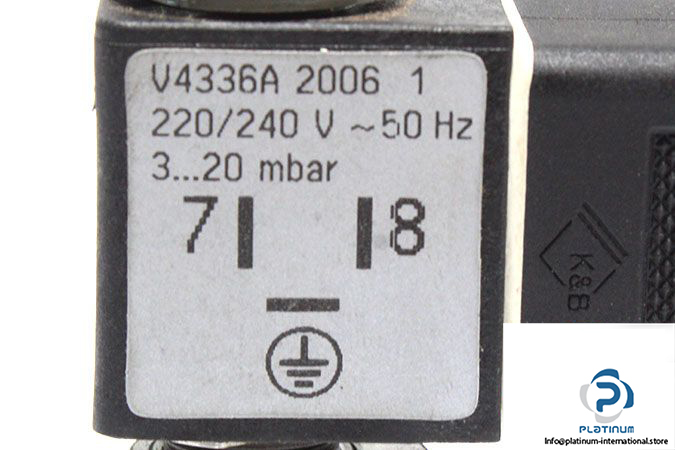

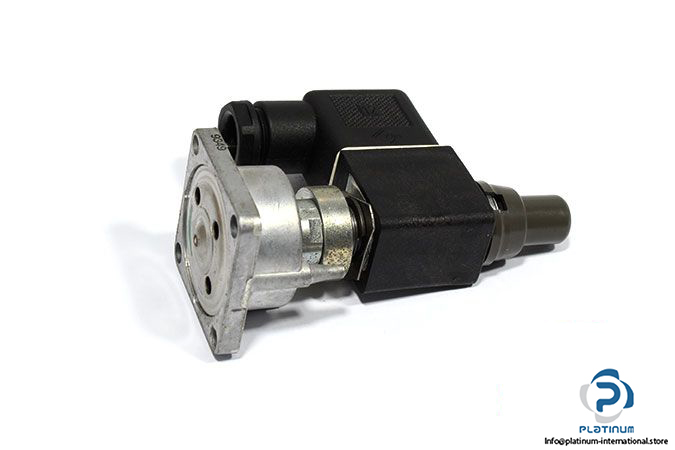

V4336A 2006 1 Electric High-Low Regulator
The V4336A 2006 1 Electric High-Low Regulator is designed for precise servo pressure regulation and high-low control applications. Built for reliability and stability, it provides accurate pressure measurement with a robust electrical interface, ensuring dependable operation across a wide temperature range.
Type: Electric High-Low Regulator
Model: V4336A 2006 1
Technical Information
- Application: Servo Pressure Regulation, High-Low Control
- Pressure Measuring Range: 3 / 20 mbar
- Connection: Sub-Based
- Electrical Connection: Cable Entry
- Supply Voltage: 220 / 240 V AC @ 50 Hz
- Fluid Temperature Range: -25 / 80 °C
