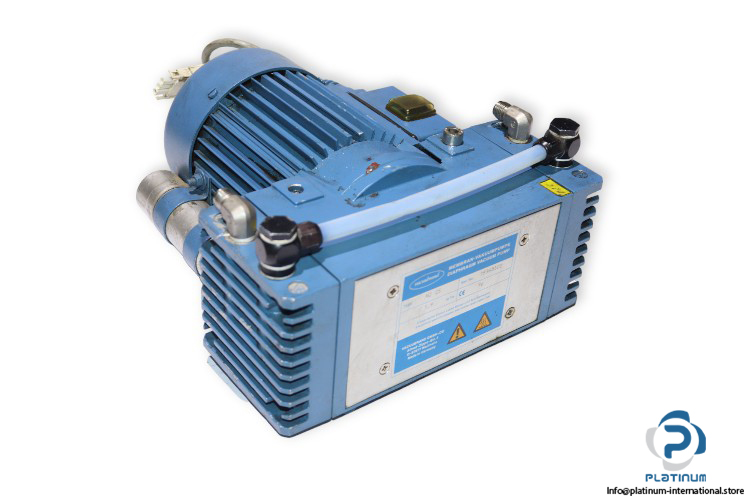

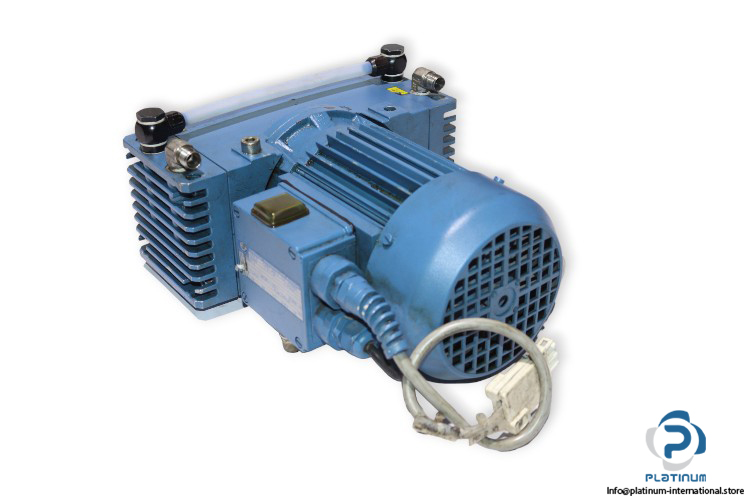

VACUUBRAND MZ2S DIAPHRAGM VACUUM PUMP

The VACUUBRAND MZ2S Diaphragm Vacuum Pump offers high performance and reliability for industrial and laboratory applications. With a flow rate of 1.9 m³/h, this pump ensures efficient operation across a wide range of temperatures. Equipped with a powerful 0.18 kW motor, it provides precise and consistent vacuum generation.

Manufacturer: VACUUBRAND

Type: Diaphragm Vacuum Pump

Model: MZ2S

Technical Specifications

• Flow Rate: 1.9 m³/h
• No Load Speed (50/60 Hz): 1500/1800 rpm
• Ambient Temperature (Storage/Operation): -10 °C / 60 °C/10 °C / 40 °C

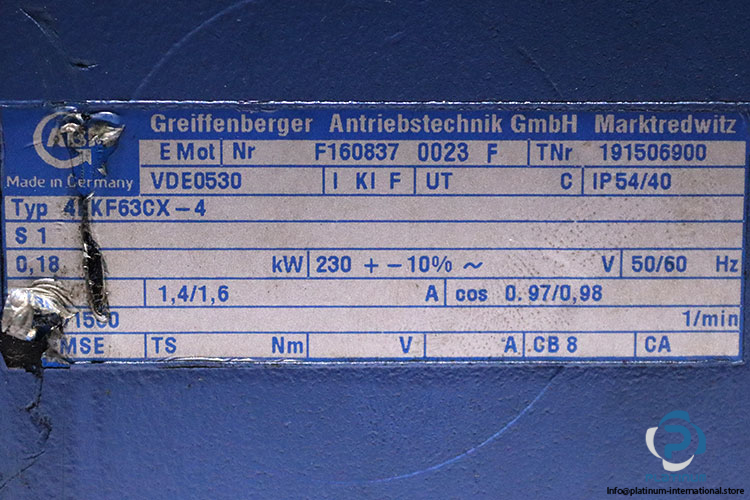

• Attachment: ABM 4 EKF 63 CX-4 Motor
• Rated Power: 0.18 kW
• Voltage: 230 V
• Frequency: 50/60 Hz
• Current: 1.4/1.6 A
• Power Factor: cos 0.97/0.98
• Duty: S1
• Insulation Class: F
• Degree of Protection: IP 54/40
