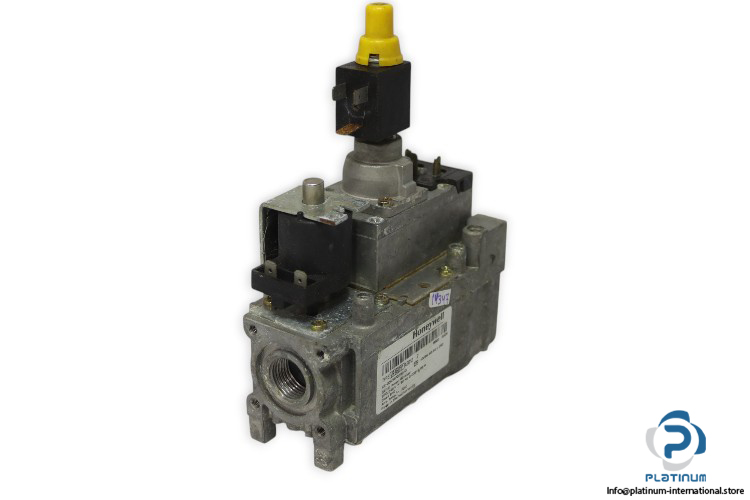

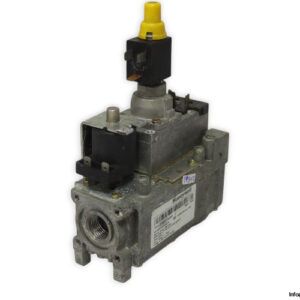

HONEYWELL VR4601P GAS VALVE WITH V4336A22121 REGULATOR

This Honeywell gas valve assembly offers precise control and high reliability in gas flow regulation, featuring an integrated high-low pressure regulator for industrial heating systems.

Manufacturer: Honeywell
Type: Gas Valve

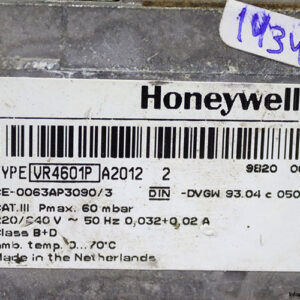

Model: VR4601P
MNR: A2012 2
Ref. No.: 9820 0009
Ref. Code: 0063AP3090/3

Technical Information “ Gas Valve

• Operating Pressure: Max. 60 mbar
• Voltage: 220/240 V AC
• Line Frequency: 50 Hz
• Current: 0.032+0.02 A
• Class: B+D
• Connection: G1/2
• Minimum Regulation Capacity: 0.31 m³/h
• Ambient Temperature: 0 to 70°C
• Certificate: DIN-DVGW 93.04 C 050

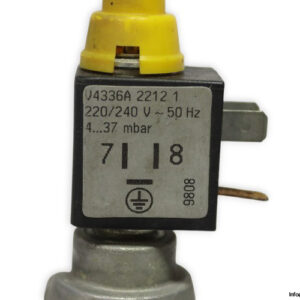

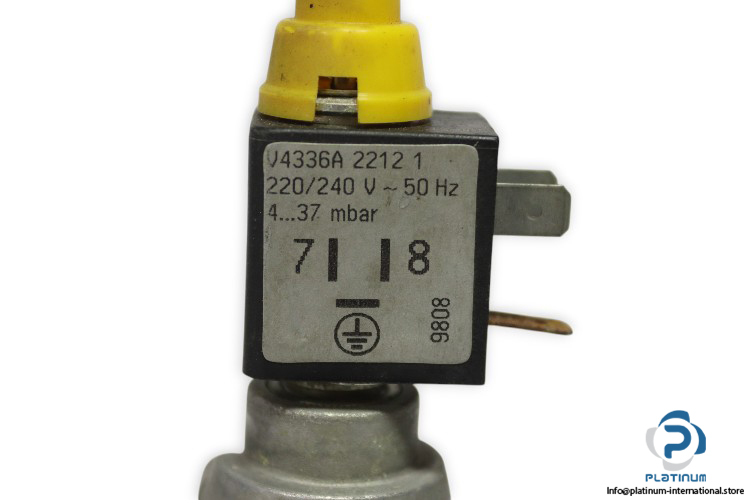

Attachment “ High-Low Pressure Regulator

• Model: V4336A22121
• Ref. No.: 9808
• Coil Voltage: 220/240 V AC, 50 Hz
• Fluid: Compressed Air / Inert Gas
• Pressure Regulation Range: 4 to 37 mbar
• High Pressure Setting Range: 12 to 37 mbar
• Low Pressure Setting Range: 4 to 50 mbar
• Pneumatic Connection: 5 mm
