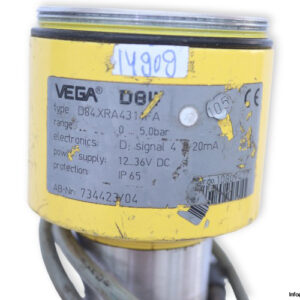

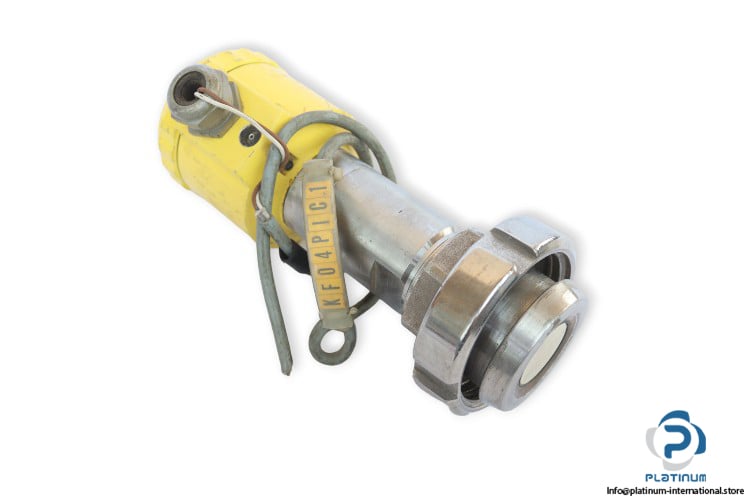

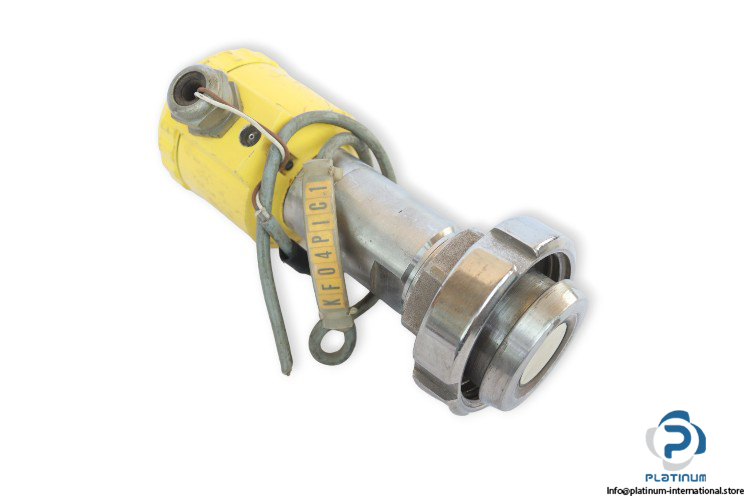

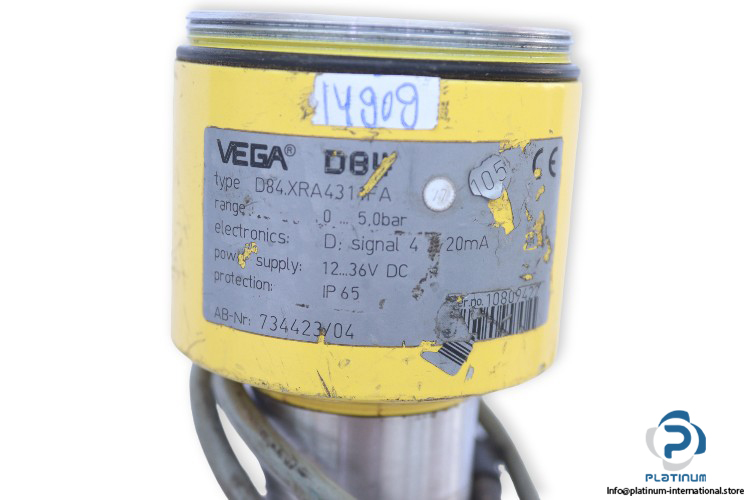

VEGA D84.XRA4311FA Hydrostatic Pressure Transmitter

The VEGA D84XRA4311FA Hydrostatic Pressure Transmitter is a precision-engineered device designed for accurate pressure measurement in industrial environments. With robust construction and an IP65 protection class, it ensures long-lasting performance under a wide range of temperatures and pressures.

Manufacturer: VEGA

Type: Hydrostatic Pressure Transmitter

Model: D84.XRA4311FA

Part No.: 734423/04

Technical Information:

• Measuring Pressure Range: 0 / 5.0 bar
• Process Temperature: -10 / 100 °C
• Supply Voltage: 12 / 36 V DC
• Input Current: 150 mA
• Analogue Output Signal: 4 / 20 mA
• Prob Length, Diameter: 121 mm, 41.6 mm
• Welded Socket Length, Diameter: 19 mm, 65 mm
• Protection Class: IP65
• Ambient Temperature: -40 / 85 °C
• Total Length, Diameter: 188 mm, 76 mm

Attachment:

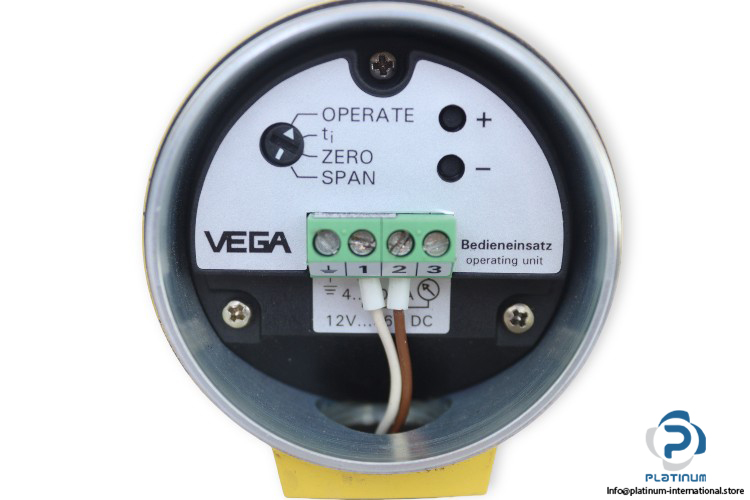

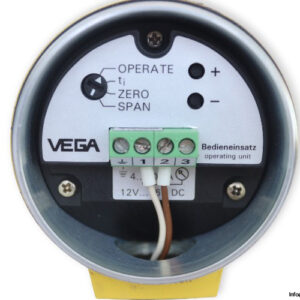

VEGA D84 Electronic Insert

• Manufacturer: VEGA
• Type: Electronic Insert
• Model: D84
• Supply Voltage: 12 / 36 V DC
• Output Current: 4 / 20 mA HART
