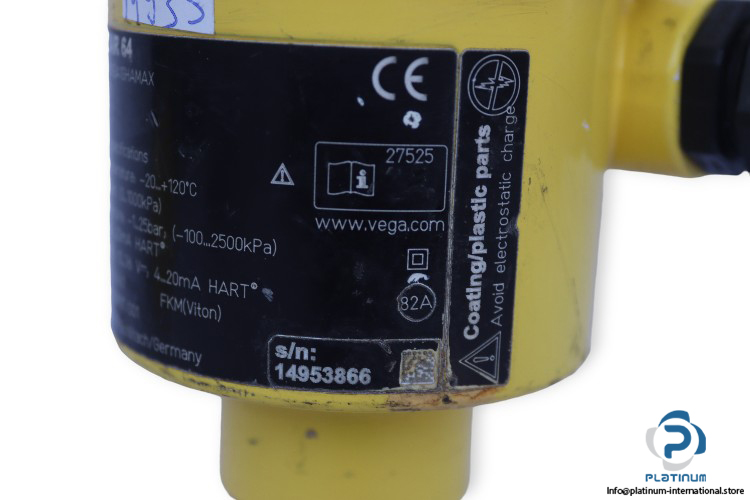

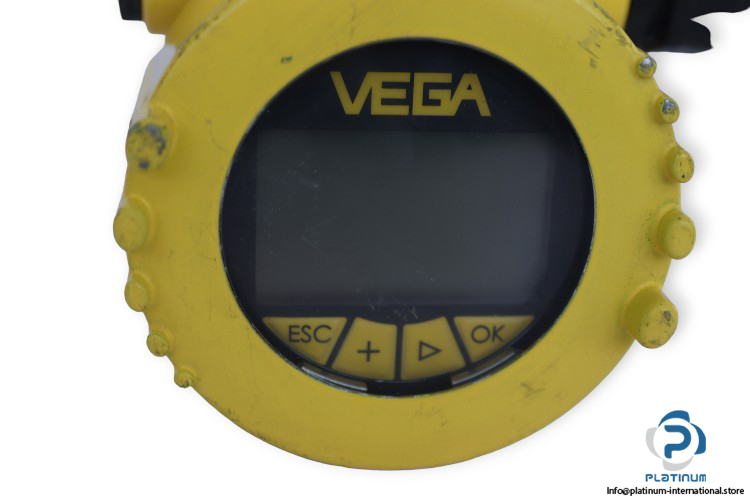

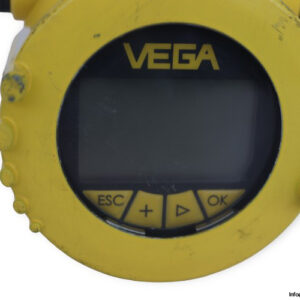

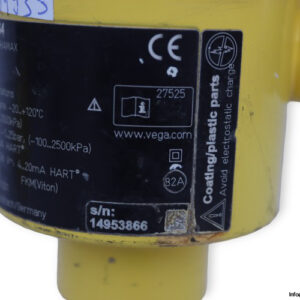

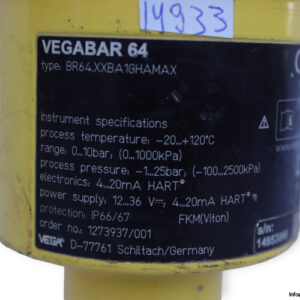

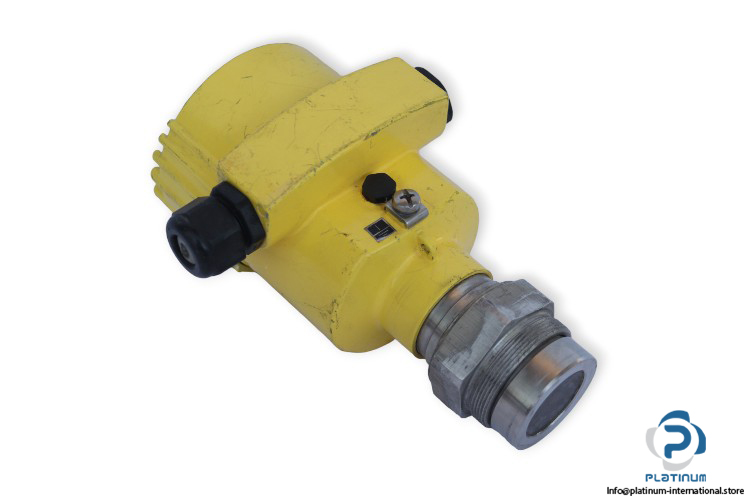

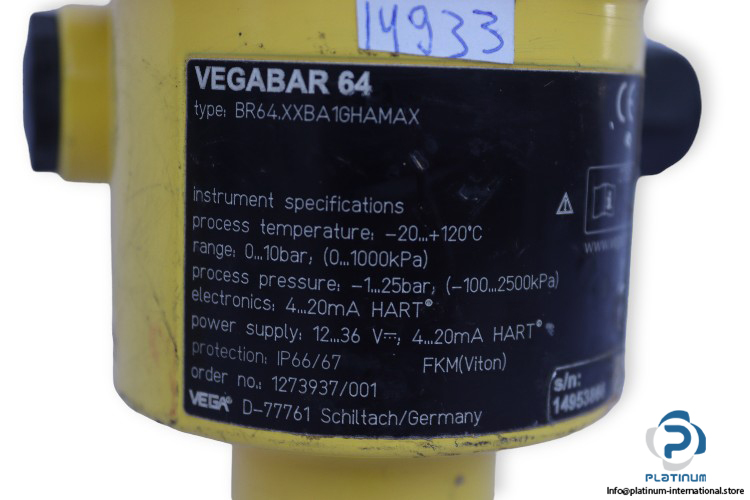

VEGA VEGABAR 64 HYDROSTATIC PRESSURE TRANSMITTER
The VEGABAR 64 BR64.XXBA1GHAMAX is a high-performance hydrostatic pressure transmitter designed for accurate level and pressure measurement in industrial environments. Engineered by VEGA, it features robust construction, precise output, and wide-range capabilities suitable for demanding applications.
Manufacturer: VEGA
Type: Hydrostatic Pressure Transmitter
Model: VEGABAR 64 BR64.XXBA1GHAMAX
Technical Information
- Range: VEGABAR 64
- Measuring Pressure Range: 0 / 10 bar / 0 / 1000 kPa
- Process Temperature: -20 / 120 °C
- Process Pressure: -1 / 25 bar / -100 / 2500 kPa
- Supply Voltage: 12 / 36 V DC
- Analogue Output Signal: 4 / 20 mA HART
- Protection Class: IP66/67
- Ambient Temperature: -40 / 80 °C
- Length, Diameter: 167 mm, 77 mm
