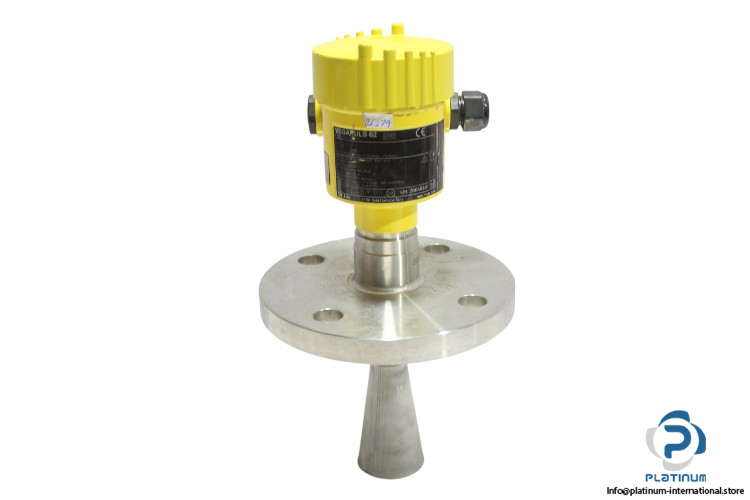

Vega VEGAPULS62 “ Radar Sensor for Continuous Level Measurement of Liquids
The Vega VEGAPULS62 is a high-precision radar sensor designed for continuous level measurement of liquids in challenging environments. With advanced features like a wide measurement range and robust housing materials, it ensures reliable performance in extreme conditions, from -196°C to 450°C and pressures up to 40 bar.
- Manufacturer: Vega
- Type: Radar Sensor for Continuous Level Measurement of Liquids

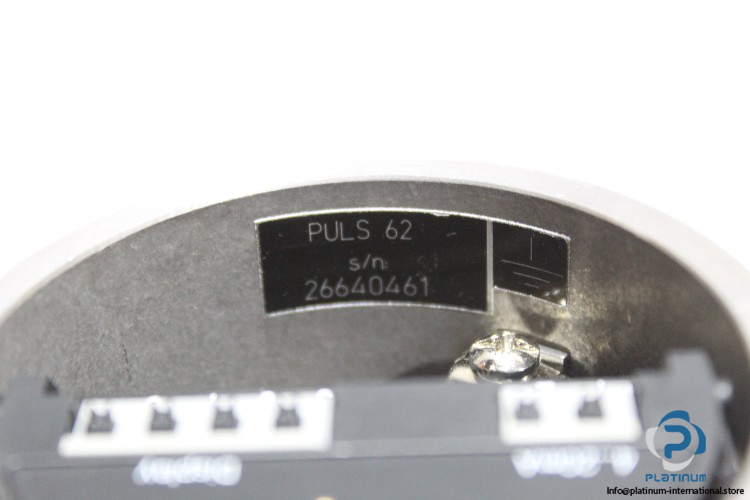

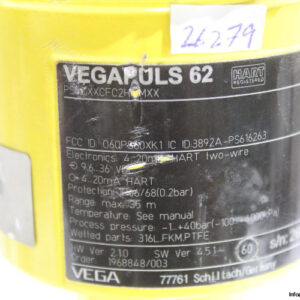

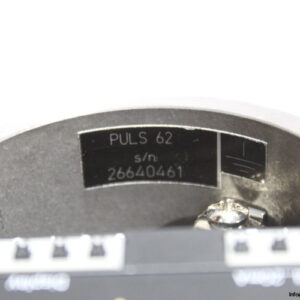

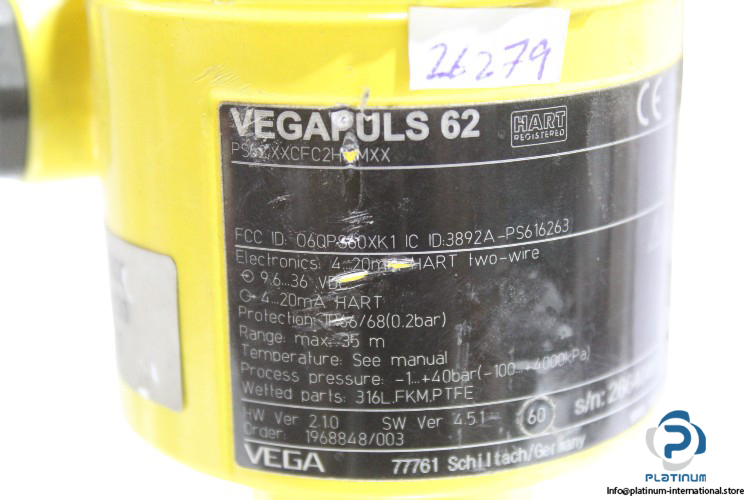

- Model: VEGAPULS62
- MNR: PS62.XXCFC2HAMXX
- ID. No.: 060PS60XK1 IC / 3892A-PS616263
- Order No.: 1968848/003
- HW version: 2.1.0
- SW version: 4.5.1

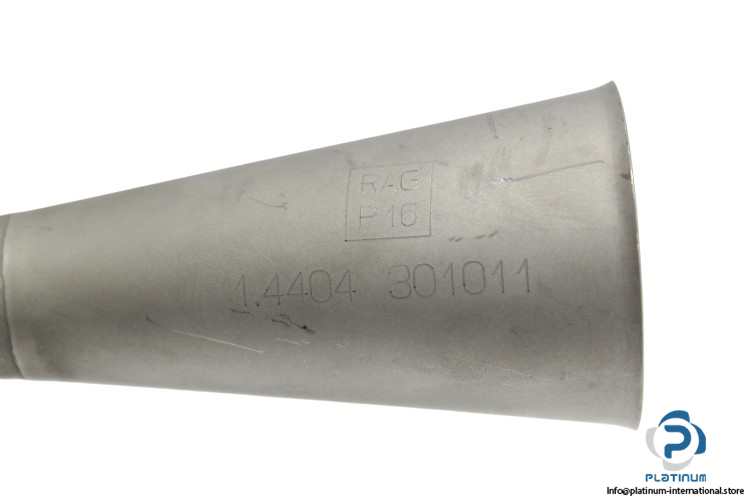

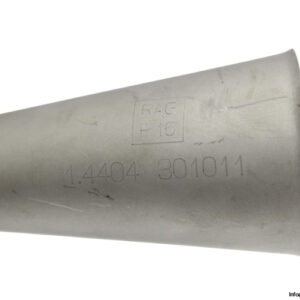

- Flange Ring Part No.: 301011

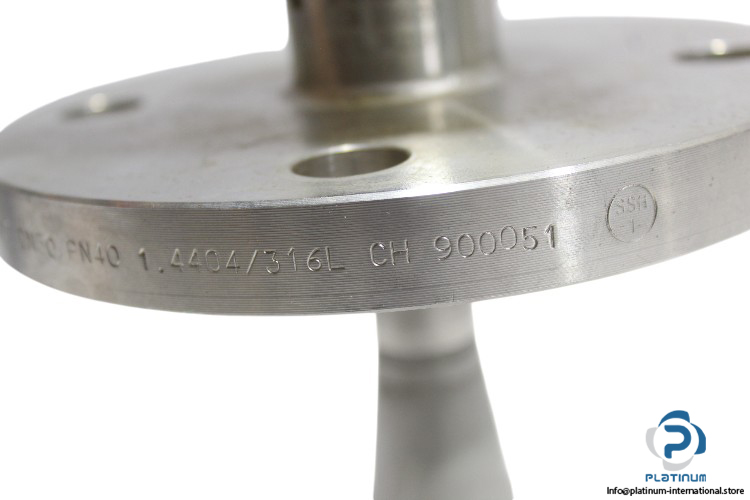

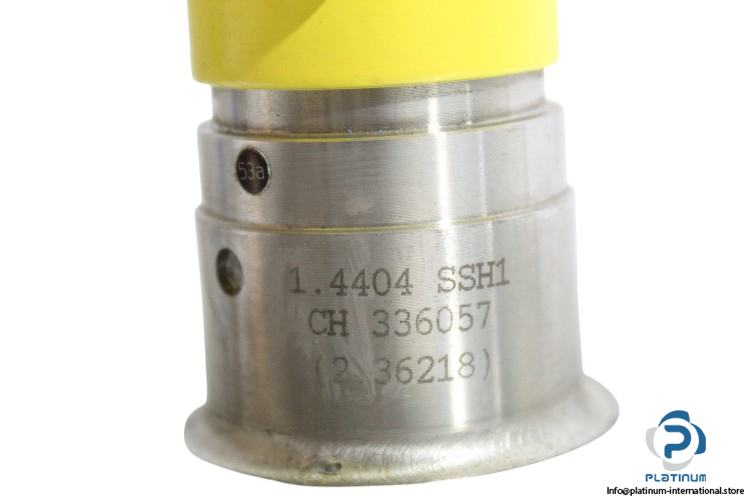

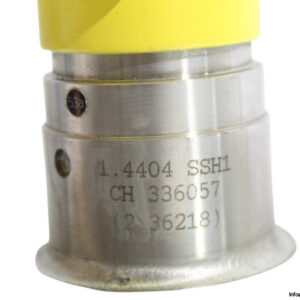

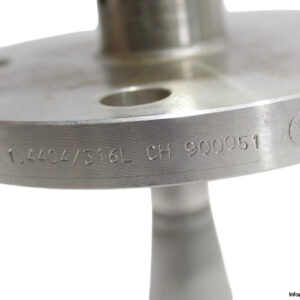

- Ring, Flange No.: CH 336057 (2.36218) CH 900051
Technical Information:
- Measuring Distance Range: 35 m
- Operating Voltage: 9.6 to 36 V DC
- Process Temperature: -196 to 450°C
- Process Pressure: -1 to 40 bar

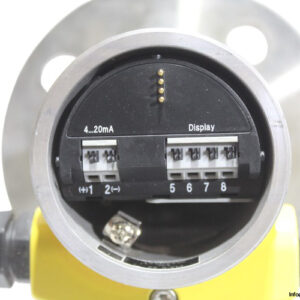

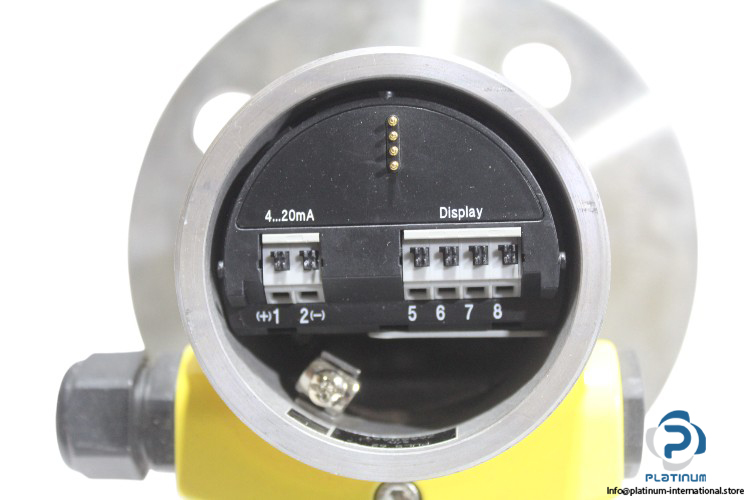

- Output: Two-wire: 4 to 20 mA/HART
- Frequency: 26 GHz
- Beam Angle: Bigger than 3°
- Threaded Connection: G1½, 1½ NPT
- Flange Connection: DN50, 2
- Seal Material: FKM, FFKM, Graphite and Ceramic
- Housing Material: Plastic, Aluminum, Stainless Steel (Precision Casting), Stainless Steel (Electropolished)
- Protection Rating: IP66/IP68
- Ambient Temperature: -40 to 80 °C
- Surface Finish: SSH1

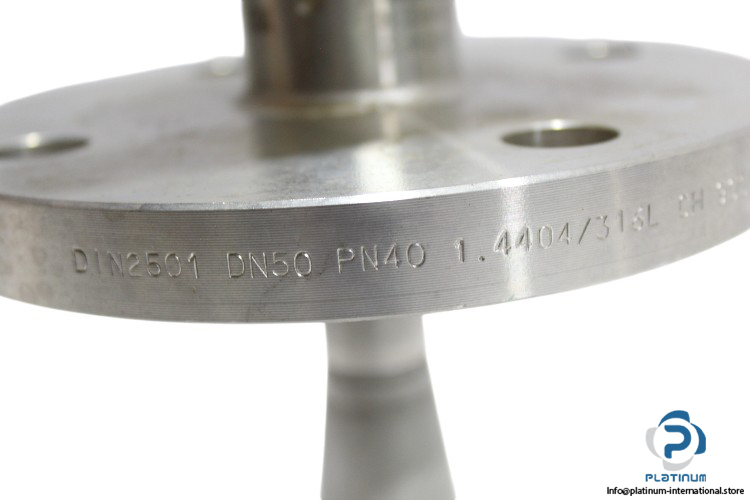

- Nominal Flange Pressure (PN40): 40 bar

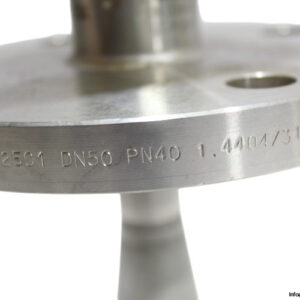

- Nominal Flange Diameter (DIN2501, DN50): 50 mm
- Flange Ring Material (1.4404 316L): Stainless Steel
