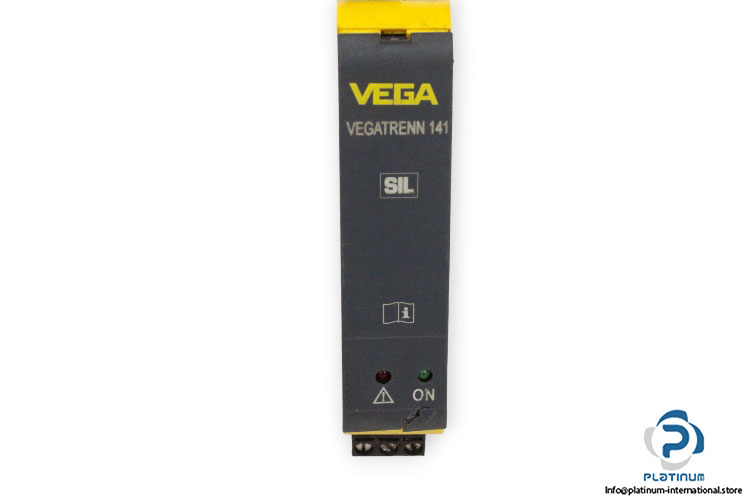

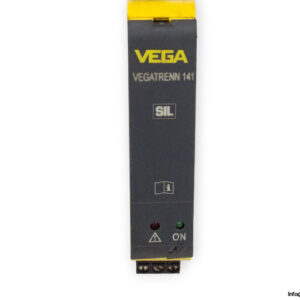

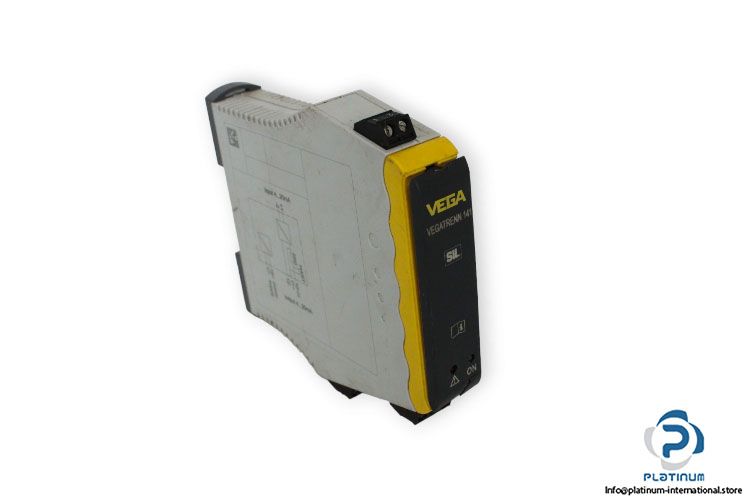

Vega VEGATRENN141 Single Channel Power Supply

The Vega VEGATRENN141 is a single channel power supply designed for safe and reliable sensor integration. With universal supply voltage, low power consumption, and HART compatibility, it ensures stable performance in industrial automation and process control systems.

Manufacturer: Vega
Type: Single Channel Power Supply
Model: VEGATRENN141
Part No.: TRENN141.AXXSKXX

Technical information

• Supply Voltage: 24 / 230 V AC, 24 / 65 V DC
• Max. Power Consumption: 3 W (15 VA)
• Sensor Input: 1 x 4 / 20 mA/HART
• Input Type: Active
• Terminal Voltage: 21 / 16.5 V DC at 4 / 20 mA
• Off-load Voltage: 24 V DC (+/- 1 V)
• Protection Rating: IP20
• Ambient Temperature Range: -20 / +60 °C
• Pollution Degree: 2
• Dimensions: 113 x 108 x 20 mm
