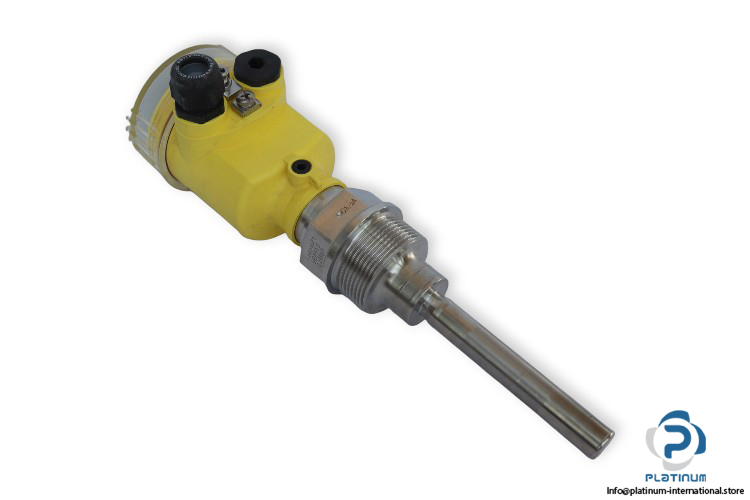

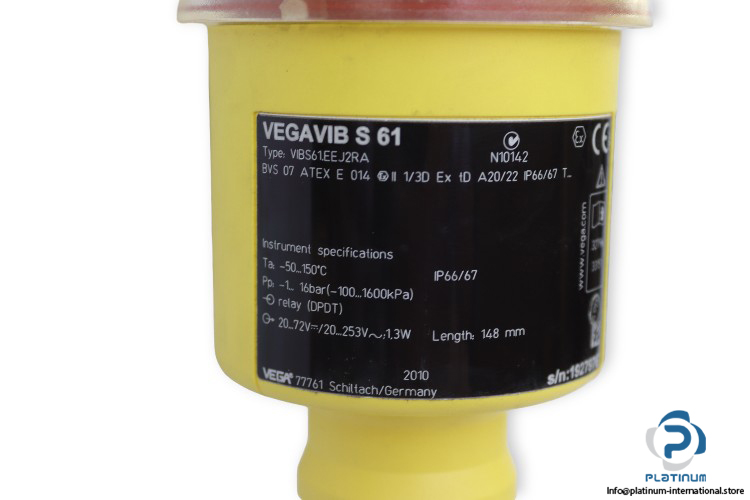

Manufacturer: VEGA
Type: Vibrating Point Level Sensor
Model: VEGAVIBS61 VIBS61EEJ2RA
Order No.: 77761

Series: VEGAVIB S61
Sensor Prob Length: 148 mm
Process Pressure: -1 … 16 bar (-100 … 1600 kPa)
Process Temperature: -50 … 150 °C
Supply Voltage: 20 … 253 V AC / 20 … 72 V DC
Power Consumption: 1.3 W
Output Signal: Relay DPDT
Material: Plastic
Protection Class: IP66/IP67
Ambient Temperature: -40 … 80 °C
Length, Diameter: 239, 81 mm

Attachment:

VEGA VIB S61 ELECTRONIC INSERT

Manufacturer: VEGA
Type: Electronic Insert
Model: VIB S61

Supply Voltage: 20 … 253 V AC / 20 … 72 V DC
Power Consumption: 1.3 W
Output Signal: Relay DPDT
