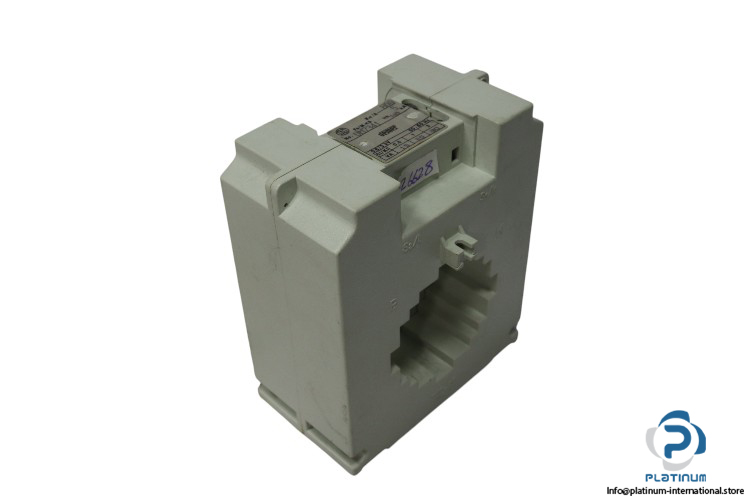

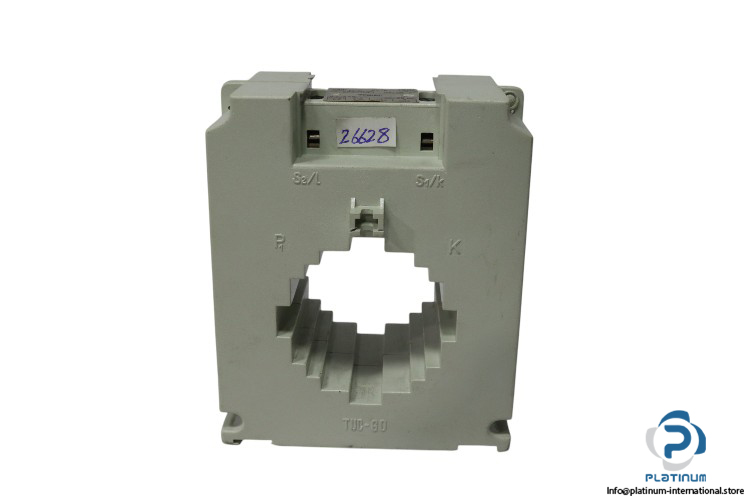

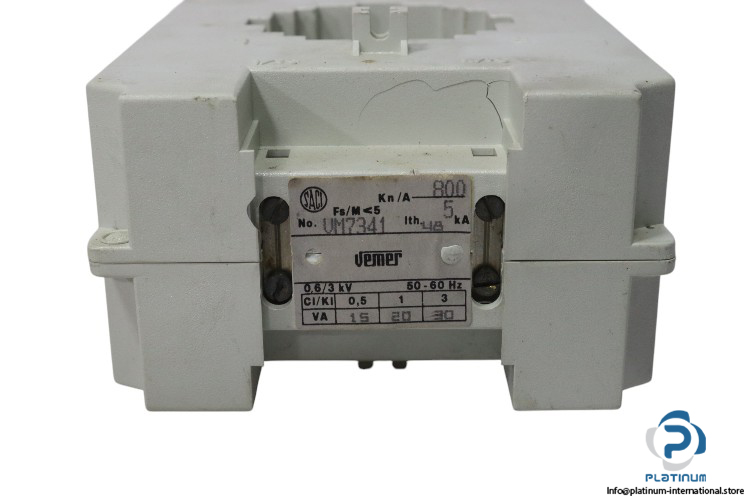

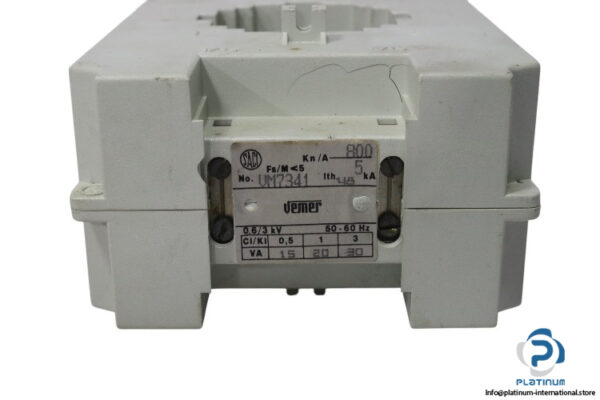

Vemer VM7341 / TU-60 “ Current Transformer
The Vemer VM7341 / TU-60 current transformer is designed to provide reliable and precise measurements in high-voltage electrical systems. With a broad range of knee-point voltage classes and thermal current capacity, this transformer is suitable for industrial applications requiring robust performance.
- Manufacturer: Vemer
- Type: Current Transformer
- Model: VM7341 / TU-60
Technical Information:
- Primary/Secondary Current: 800/5 A
- Primary/Secondary Voltage: 0.6/3 Kv
- Knee-Point Voltage Class: 0.5 (15 VA) – 1 (20 VA) – 3 (30 VA)
- Frequency: 50 to 60 Hz
- Thermal Current Ith: 48 kA
- Dimensions: 105 x 137 x 87 mm
- Diameter: 51 mm
