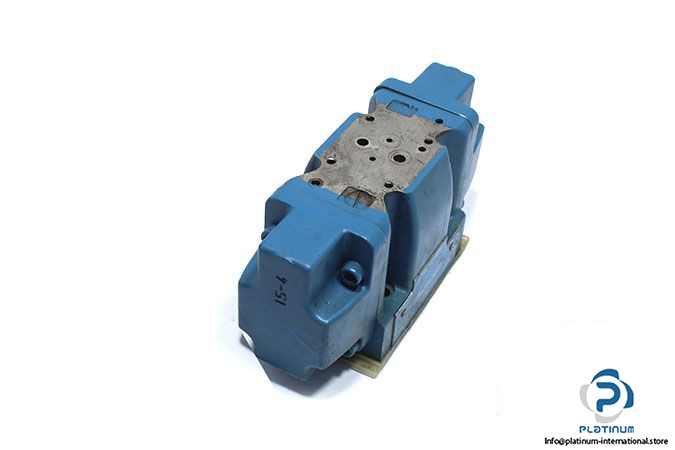

VICKERS DG5S 5 2C MU A6 21 PILOT OPERATED DIRECTIONAL CONTROL VALVE
The VICKERS DG5S 5 2C MU A6 21 Pilot Operated Directional Control Valve is designed for precise hydraulic control in industrial applications. With a nominal size of NG 10, electrically actuated operation, and a maximum working pressure of 350 bar, this valve provides reliable performance in demanding environments.
Manufacturer: VICKERS
Type: Pilot Operated Directional Control Valve

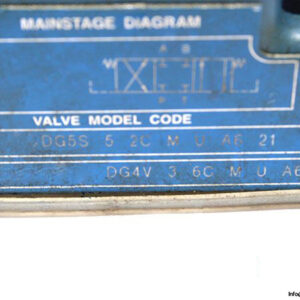

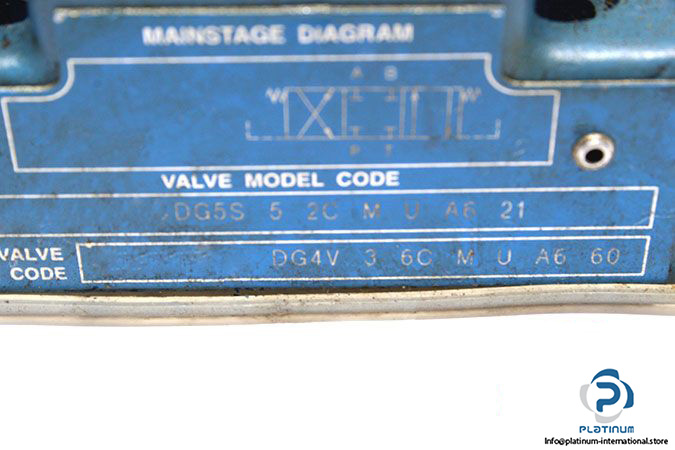

Model: DG5S 5 2C MU A6 21
Code No.: DG4V 3 6C M U A6 60
Technical Specifications
- Nominal Size: NG 10
- Type of Actuation: Electrically
- Max. Working Pressure (Port P, A, B): 350 bar
- Max. Pressure (Port T): 100 bar
- Nominal Flow Rate: 20 l/min
- Hydraulic Connection: Sub-Plate
- Fluid Temperature Range: -20 / .. +80 °C
