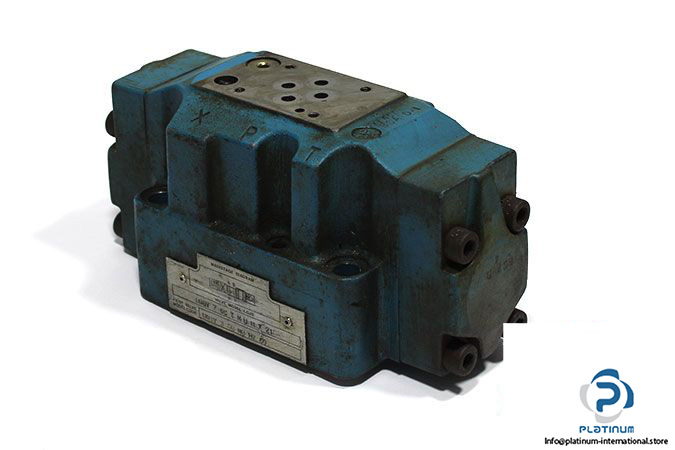

Vickers DG5V-7 6C T M U H7 21 Pilot Operated Directional Valve
The Vickers DG5V-76CTMUH721 Pilot Operated Directional Valve is a high-performance hydraulic valve designed for precise control of fluid flow in industrial and mobile systems. Its robust construction, reliable pilot operation, and excellent pressure handling make it ideal for demanding hydraulic applications.
Manufacturer: Vickers
Type: Pilot Operated Directional Valve

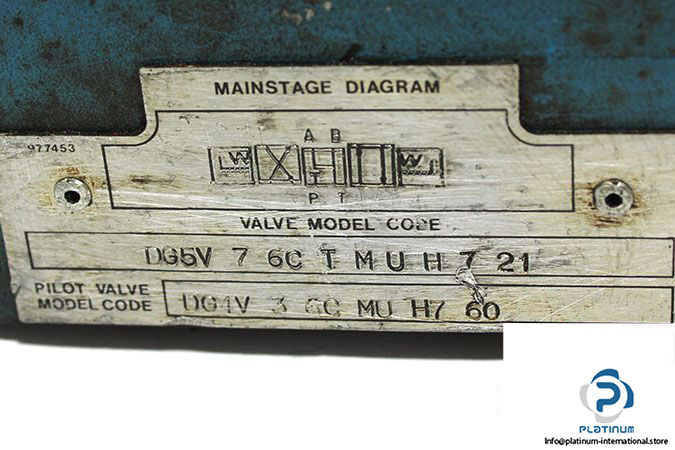

Valve Model: DG5V-7 6C T M U H7 21
Pilot Valve Model: DG4V 3 6C H7 60
Technical Information
- Fluid: Oil
- Size: NG10
- Max. Working Pressure (Port P, A, B): 350 bar
- Max. Pressure (Port T): 250 bar

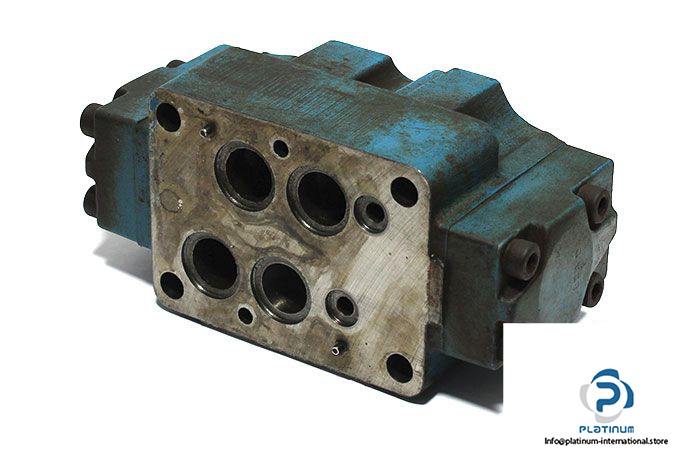

- Hydraulic Connection: Sub-Based
- Operating Temperature: -40 / 110 °C
