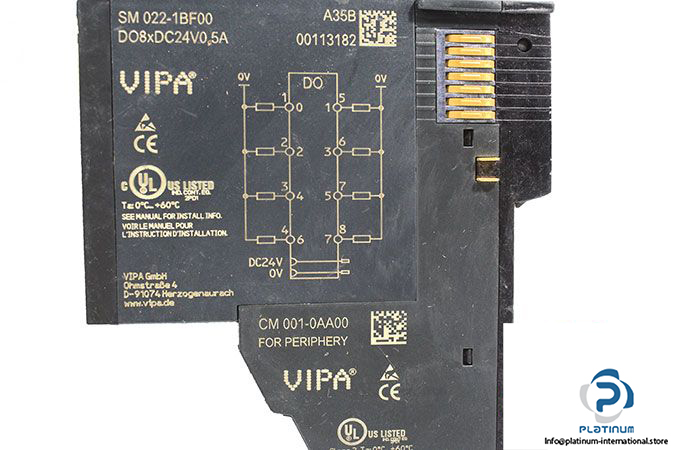

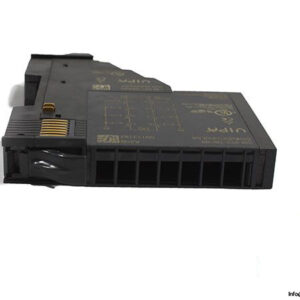

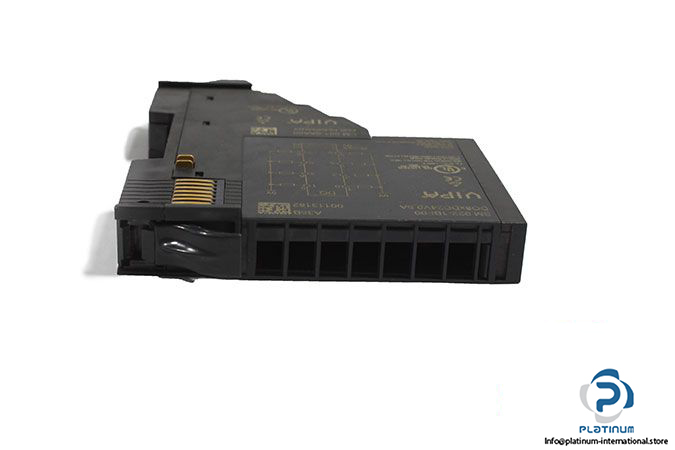

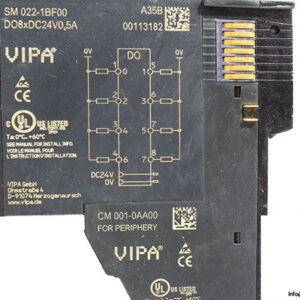

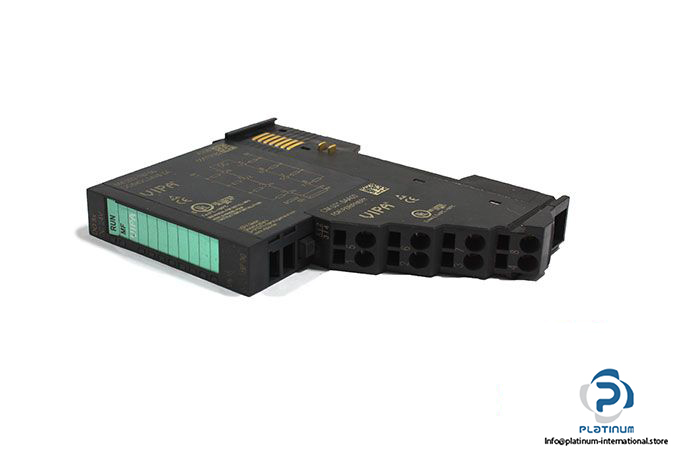

Manufacturer: VIPA

Type: Digital Output Module

Model: SM 022-1BF00

Order No.: 022-1BF00

Current Consumption from Backplane Bus: 80 mA

Power Loss: 0.7 W

Number of Outputs: 8

Rated Load Voltage: 20.4 … 28.8 VDC

Current Consumption from Load Voltage L+ (Without Load): 15 mA

Status Display: green LED per channel

Output Current at Signal “1”, Rated Value: 0.5 A

Lamp Load: 10 W

Signal Logic Output: Sourcing output

Material: PPE / PPE GF10

Operating Temperature: 0 … 60 °C

Dimensions: 12.9 X 58 X 62 mm

Weight: 0.06 kg
