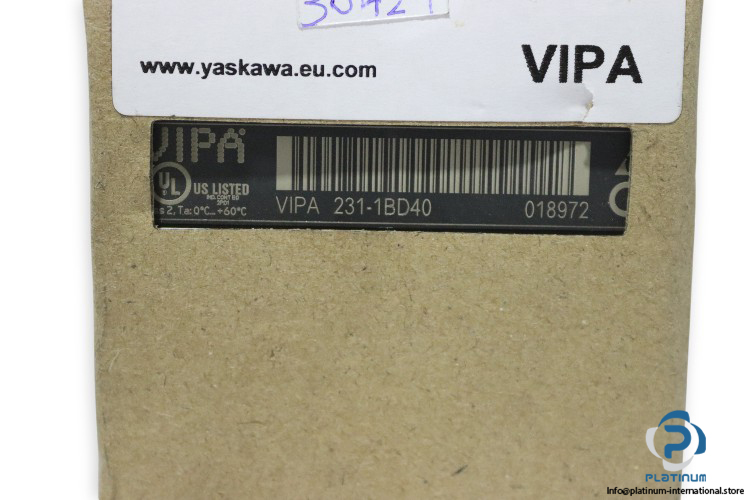

VIPA / Yaskawa 231-1BD40 Analog Input Module

The VIPA / Yaskawa 231-1BD40 is a high-performance analog input module from the System 200V series. Designed for reliable signal processing in industrial automation, it offers compact dimensions, durable materials, and efficient energy consumption.

Manufacturer: VIPA / YASKAWA
Type: Analog Input Module
Model: 231-1BD40
Part No.: 018972
Reference No.: 100-220-597 / 1000407544 / 231-1BD40018972

Technical Information

• Series: VIPA System 200V I/O Modules
• Range: SM 231, ECO
• Current Consumption: 120 mA
• Power Loss: 0.6 W
• Cable Length (Shielded): 200 m
• No. of Input: 4
• Input Bytes: 8
• Parameter Bytes: 12
• Material: PPE / PA 6.6
• Mounting: Profile Rail 35 mm
• Operating Temperature: 0 / 60 °C
• Dimensions: 25.4 x 76 x 88 mm
