VIPA YASKAWA 67S-PNJ0-EB Display Panel PC
The VIPA YASKAWA 67SPNJ0EB is a high-performance industrial display panel PC designed for automation and control applications. With its 21.5-inch TFT color display, robust processing power, and versatile connectivity, it provides reliable and efficient operation in demanding environments.
Manufacturer: VIPA YASKAWA
Type: Display Panel PC
Model: 67S-PNJ0-EB
Technical Information
- Supply Voltage: 24 V DC
- Rated Current Consumption: 1.2 A
- Display Type: TFT Color (16.7M Colors)
- Screen Diagonal: 21.5 In
- Resolution: 1920 x 1080
- Aspect Ratio: 16:9
- User Software: Movicon 11 CE Standard

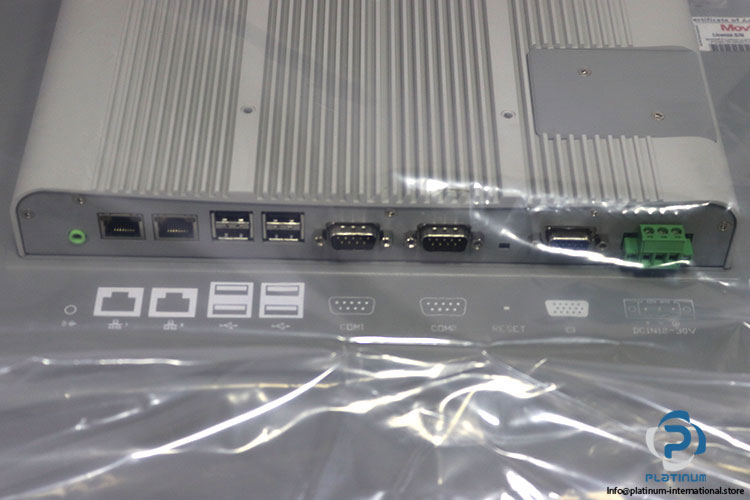

- Onboard Interface: 2x RS232/RS422/RS485, 4x USB-A, 1x VGA, 2x RJ45 (Ethernet), 1x Audio Out
- Processor: Intel Atom Dualcore 1.86 GHz
- Operating System: Windows Embedded Compact 7
- Connection: Male Connector Sub-D, 9-Pin
- Protection Class: IP20 / IP65
- Ambient Temperature: 0 / 50 °C
- Dimensions: 542 x 362 x 54.2 mm
