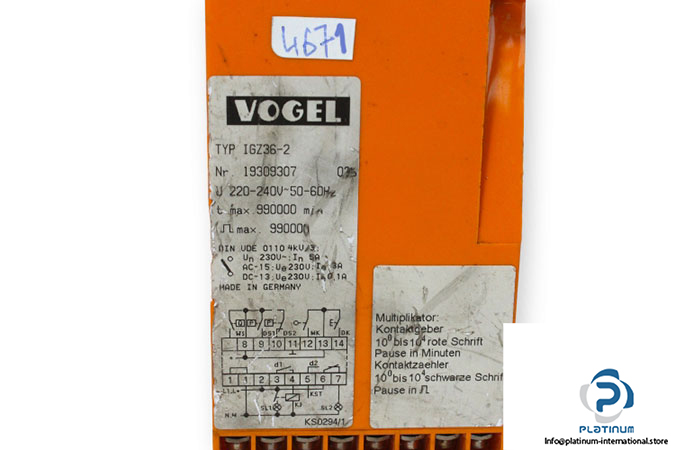

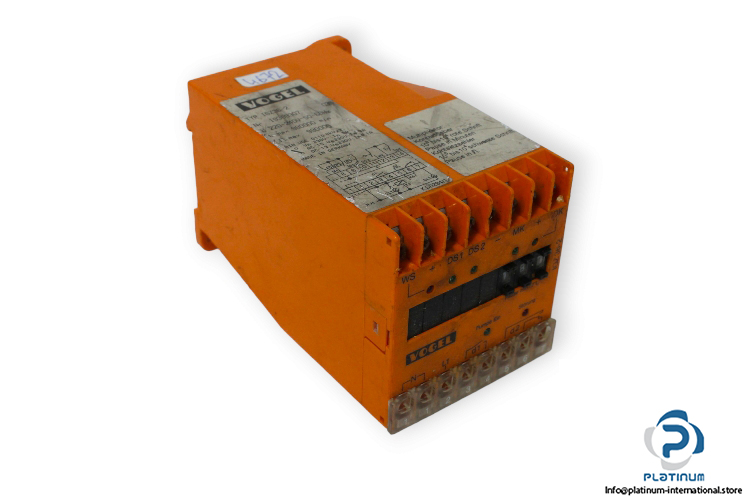

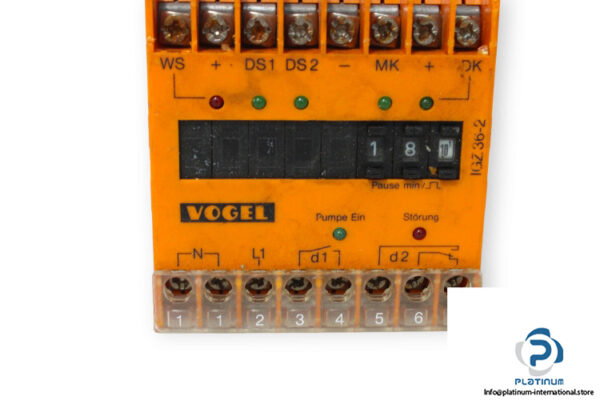

Manufacture: Vogel
Type: Lube Control Timer
Model: IGZ362
Part No.: 19309307 035

Application: Single-line system Piston feeders
Supply voltage: 220 … 240 V AC
Nominal Voltage Un: 230 V AC
Nominal current In: 5 A
Frequency: 50 … 60 Hz
Setting time max.: 990000 min
Pulse max.: 990000 pulse
Switching Capacity:
AC-15: 230 V AC,3 A
DC-13: 230 V DC,0.1 A
