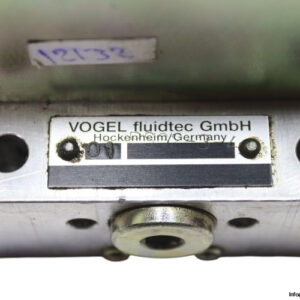

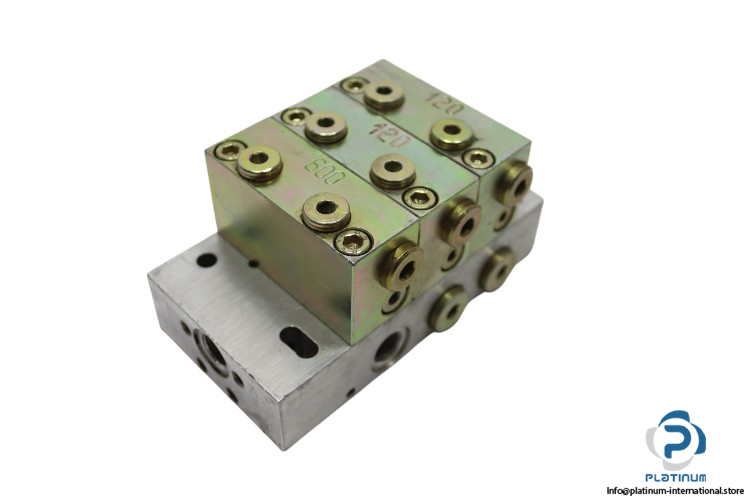

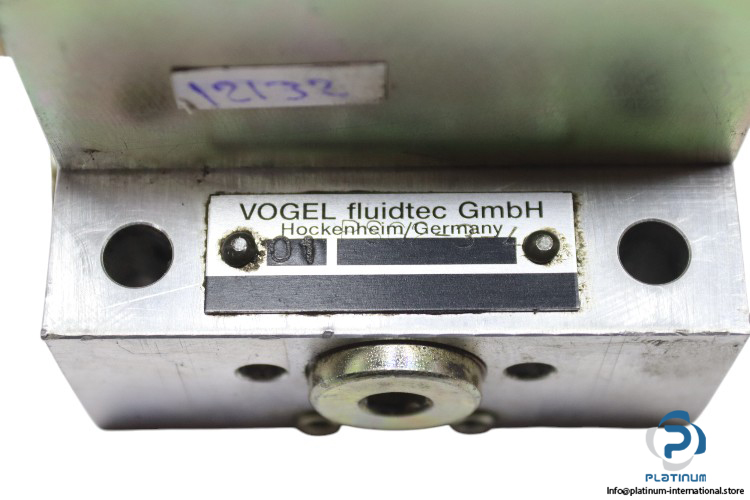

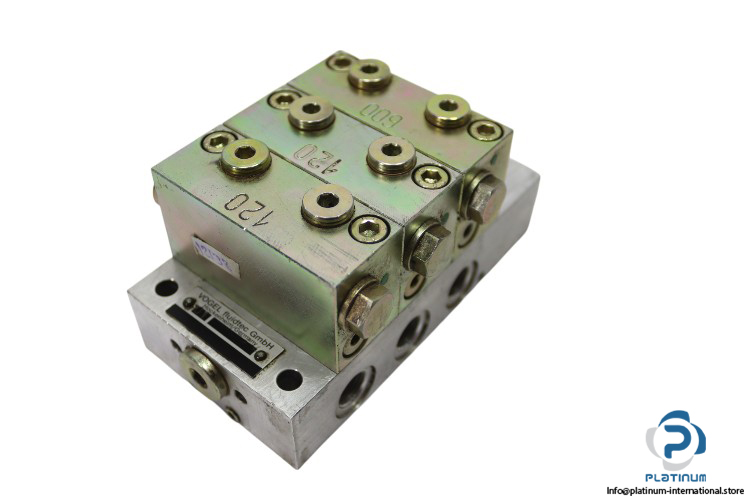

Vogel Fluidtec 01PSG2-3-4 Modular Lubrication Feeder Valve
The Vogel Fluidtec 01PSG2-3-4 is a precision-engineered modular lubrication feeder valve designed for high-efficiency grease and oil distribution in centralized lubrication systems. Built from durable aluminum and optimized for demanding industrial environments, it provides adjustable dosing and reliable performance under high pressure.
Manufacturer: Vogel Fluidtec
Type: Modular Lubrication Feeder Valve / Modular Metering Device
Model: 01PSG2-3-4
Technical Information:
- Fluid: Oils and Grease
- Connection: G1/4, 5 mm
- Material: Aluminum
- Max. Inlet Volume Flow: 2.5 L/Min
- Lubricant: Grease up to NLGI 2, oil with viscosity 12 mm²/s
- Max. Operative Pressure: 200 bar
- Dosing Quantity: 0.06 to 0.84 cm³ per cycle and outlet
- Operating Temperature: -15 to 110 °C
