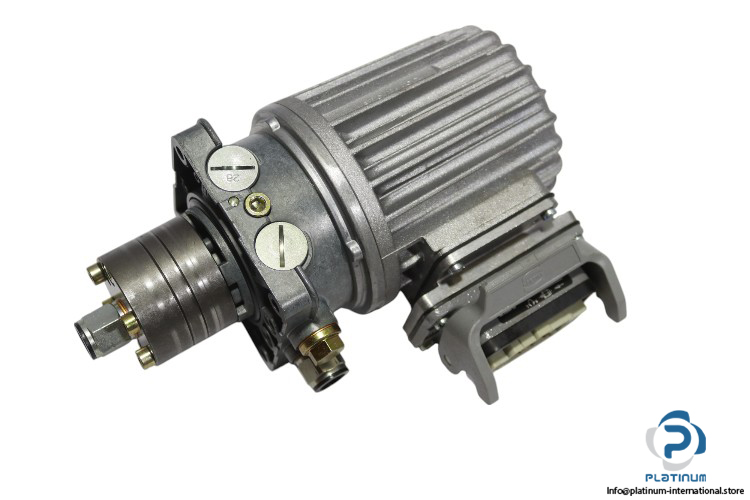

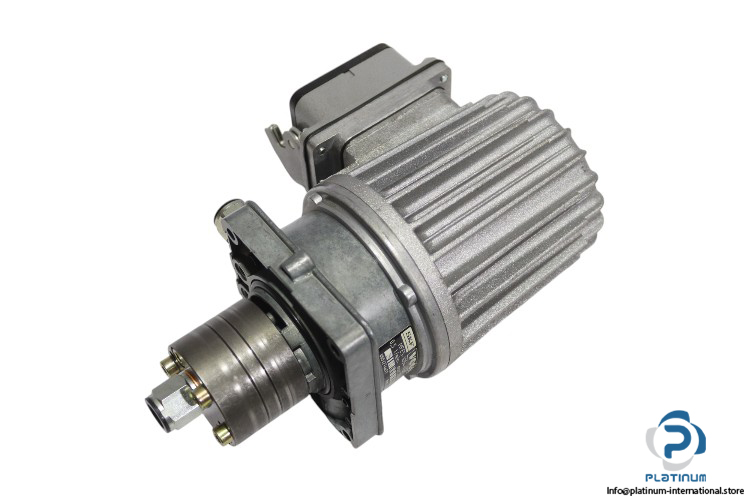

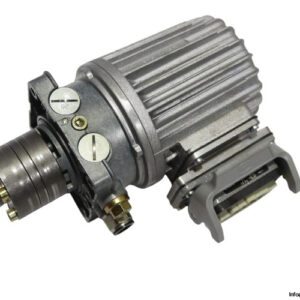

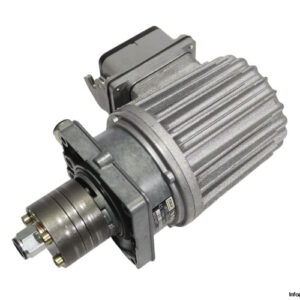

SKF VOGEL MFE5-1004+MGP Gear Pump Unit with Spare Motor DU56N2075-53+MGP

The SKF VOGEL MFE5-1004+MGP Gear Pump Unit is designed for use in single-line centralized lubrication systems. With a flow rate of 0.5 L/min and a maximum back pressure of 28 bar, this unit ensures efficient lubrication for industrial machinery. Paired with the VOGEL DU56N2075-53+MGP spare motor, it offers reliable performance with a 3-phase voltage supply and a nominal speed of 2700 rpm at 50 Hz.

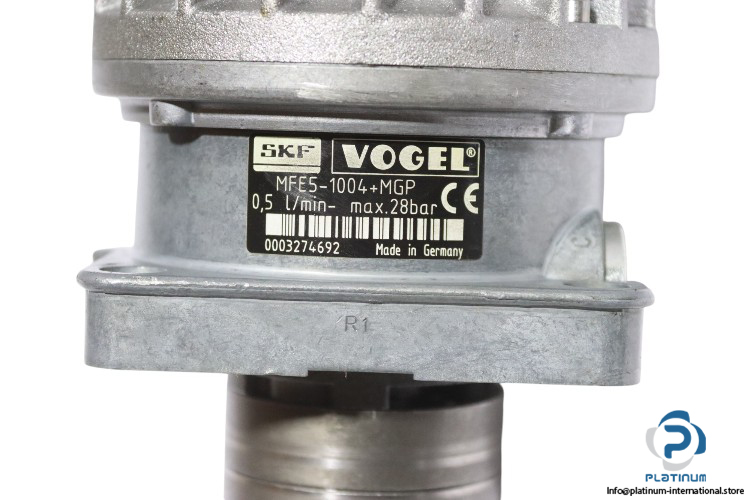

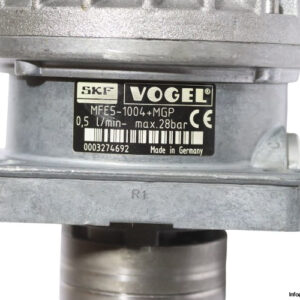

Manufacturer: SKF VOGEL

Type: Gear Pump Unit

Model: MFE5-1004+MGP

Ref No: 0003274692

Technical Data (Gear Pump Unit):

• Used For: Single-line centralized lubrication system
• Flow Rate: 0.5 L/min
• Max. Back Pressure: 28 bar
• Dimensions: 96 x 88 x 149 mm
• Port Size: G1/4

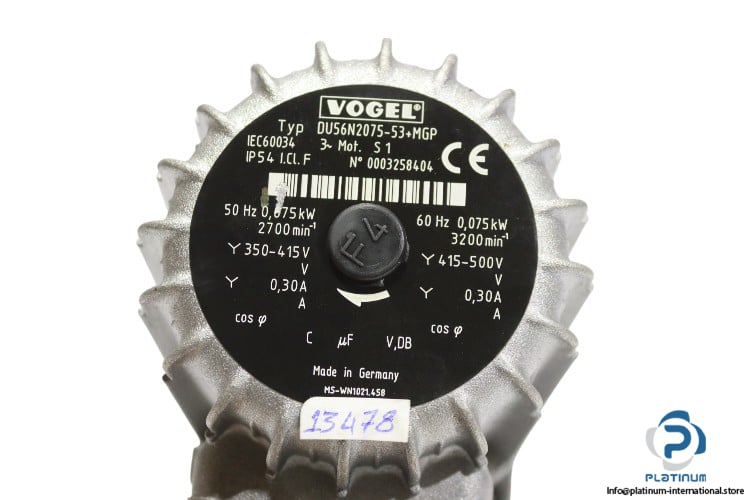

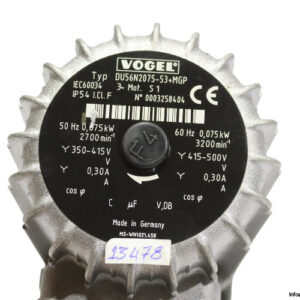

Technical Data (Spare Motor):

• Manufacturer: VOGEL
• Type: Spare Motor
• Model: DU56N2075-53+MGP
• Part No: 0003258404

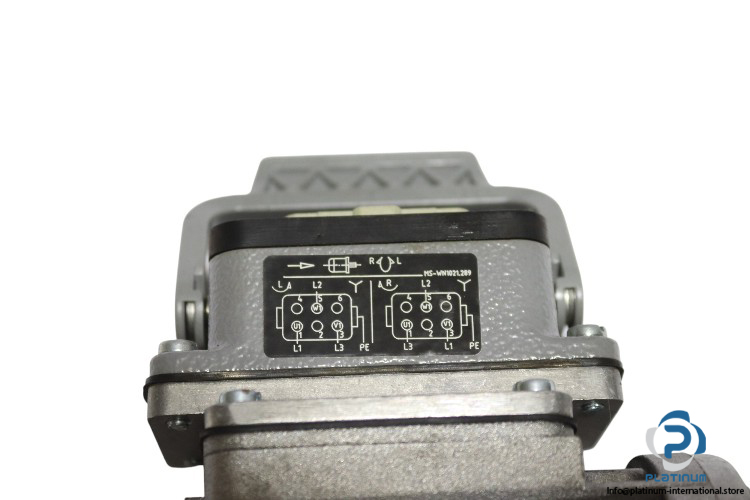

• Type of Voltage Supply: 3-phase voltage at 50 Hz
• Star Connection Voltage (50 Hz): 350 / 415 V
• Nominal Speed (50 Hz): 2700 rpm
• Power Consumption: 0.075 KW
• Rated Current: 0.3 A
• Star Connection Voltage (60 Hz): 415 / 500 V
• Nominal Speed (60 Hz): 3200 rpm
• Power Consumption: 0.075 KW
• Rated Current: 0.3 A
• Enclosure Rating: IP54
• Isolation Class: F
