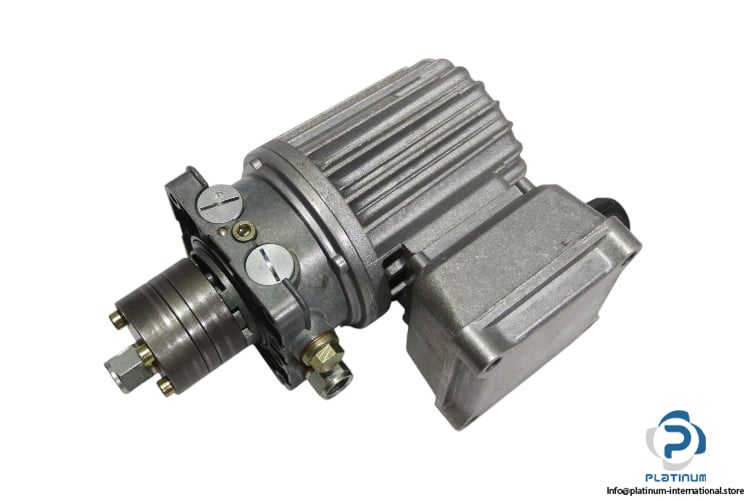

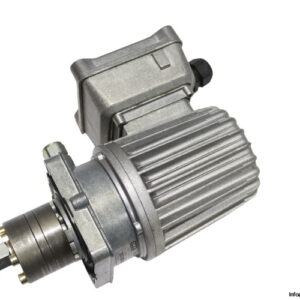

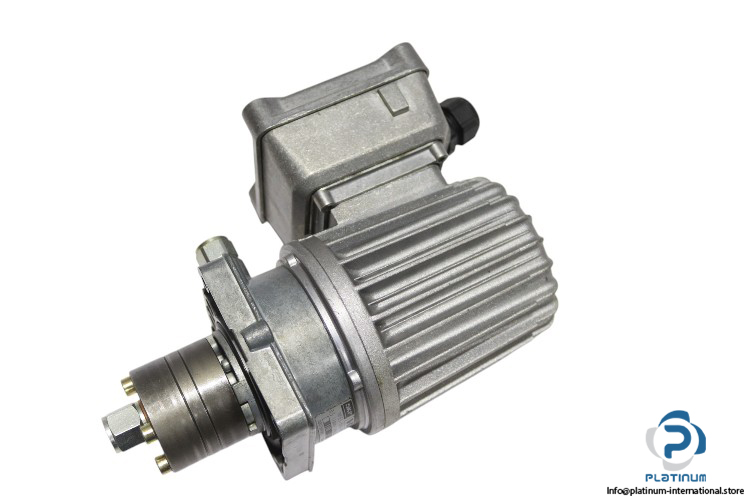

SKF VOGEL MFE5-3041+39E Gear Pump Unit

The SKF VOGEL MFE5-3041+39E Gear Pump Unit is designed for use in single-line centralized lubrication systems, providing reliable and efficient performance. With a flow rate of 0.5 L/min and a maximum back pressure of 28 bar, this unit ensures optimal lubrication in industrial applications.

Manufacturer: SKF VOGEL

Type: Gear Pump Unit

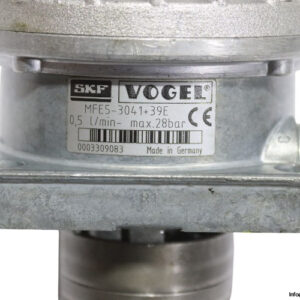

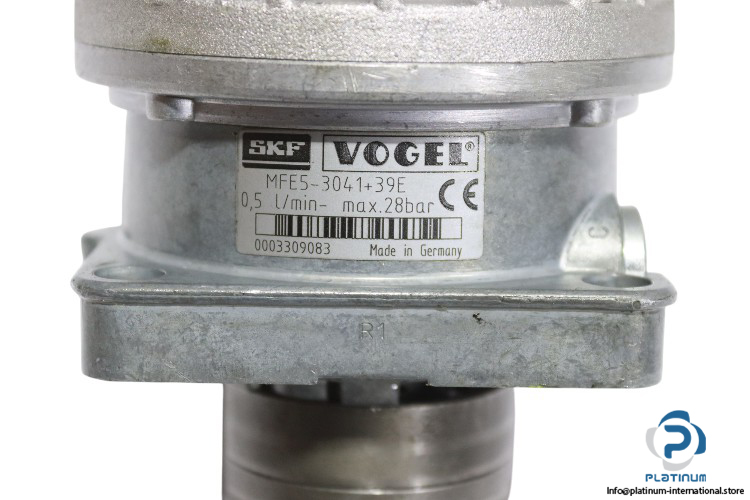

Model: MFE5-3041+39E

Ref No: 0003309083

Technical Data:

• Used For: Single-line centralized lubrication system
• Flow Rate: 0.5 L/min
• Max. Back Pressure: 28 bar
• Design: Basic version, NBR, metal terminal box
• Dimensions: 96 x 88 x 149 mm

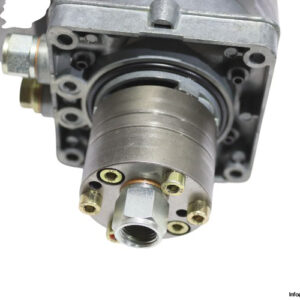

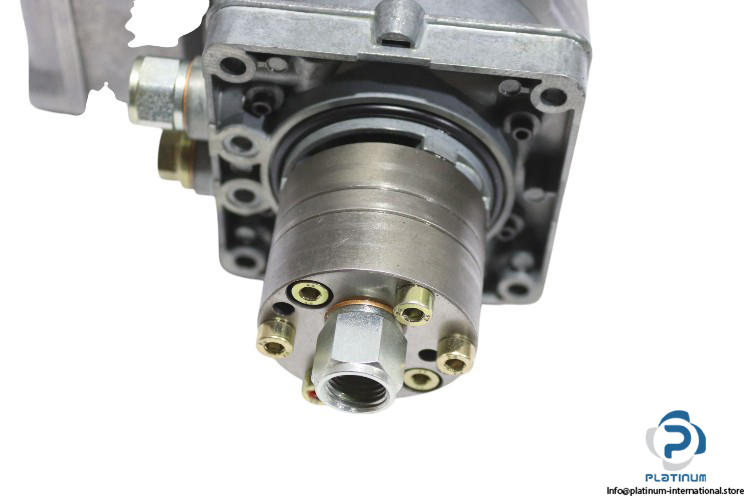

• Port Size: G1/4
• Attached with: VOGEL DU56N2075-50+39E Motor

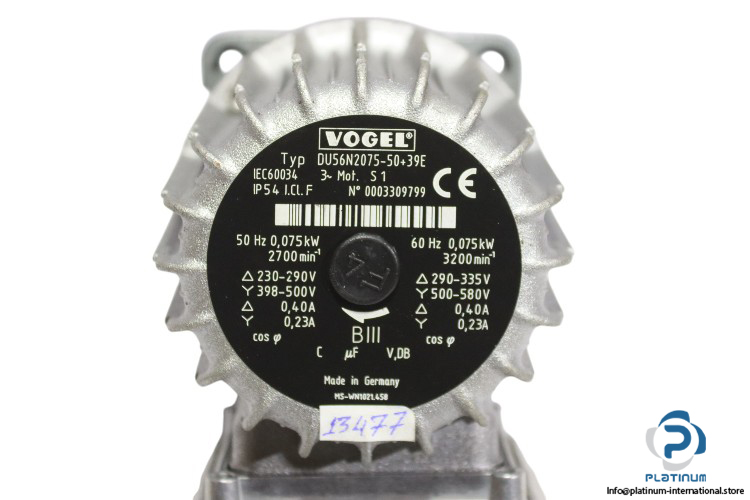

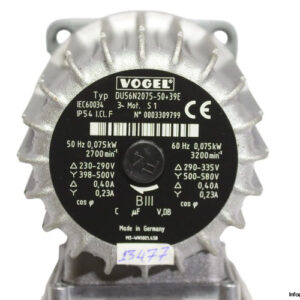

VOGEL DU56N2075-50+39E Spare Motor

The VOGEL DU56N2075-50+39E motor provides reliable power for SKF VOGEL gear pumps, designed for industrial applications with high-speed performance and optimal energy efficiency.

Manufacturer: VOGEL

Type: Spare Motor

Model: DU56N2075-50+39E

Part No: 0003309799

Technical Data:

• Type of Voltage Supply: 3-phase voltage at 50 Hz
• Star Connection Voltage: 398 / 500 V
• Delta Connection Voltage: 230 / 290 V
• Nominal Speed: 2700 rpm
• Power Consumption: 0.075 KW
• Rated Current: 0.4 / 0.23 A
• At 60 Hz:
• Star Connection Voltage: 500 / 580 V
• Delta Connection Voltage: 290 / 335 V
• Nominal Speed: 3200 rpm
• Power Consumption: 0.075 KW
• Rated Current: 0.4 / 0.23 A
• Enclosure Rating: IP54
• Isolation Class: F
